TA 48 (968999236) - Husqvarna 48" Towable Aerator (2003-09) TINE SHIELD Parts Diagram

48" Towable Aerator

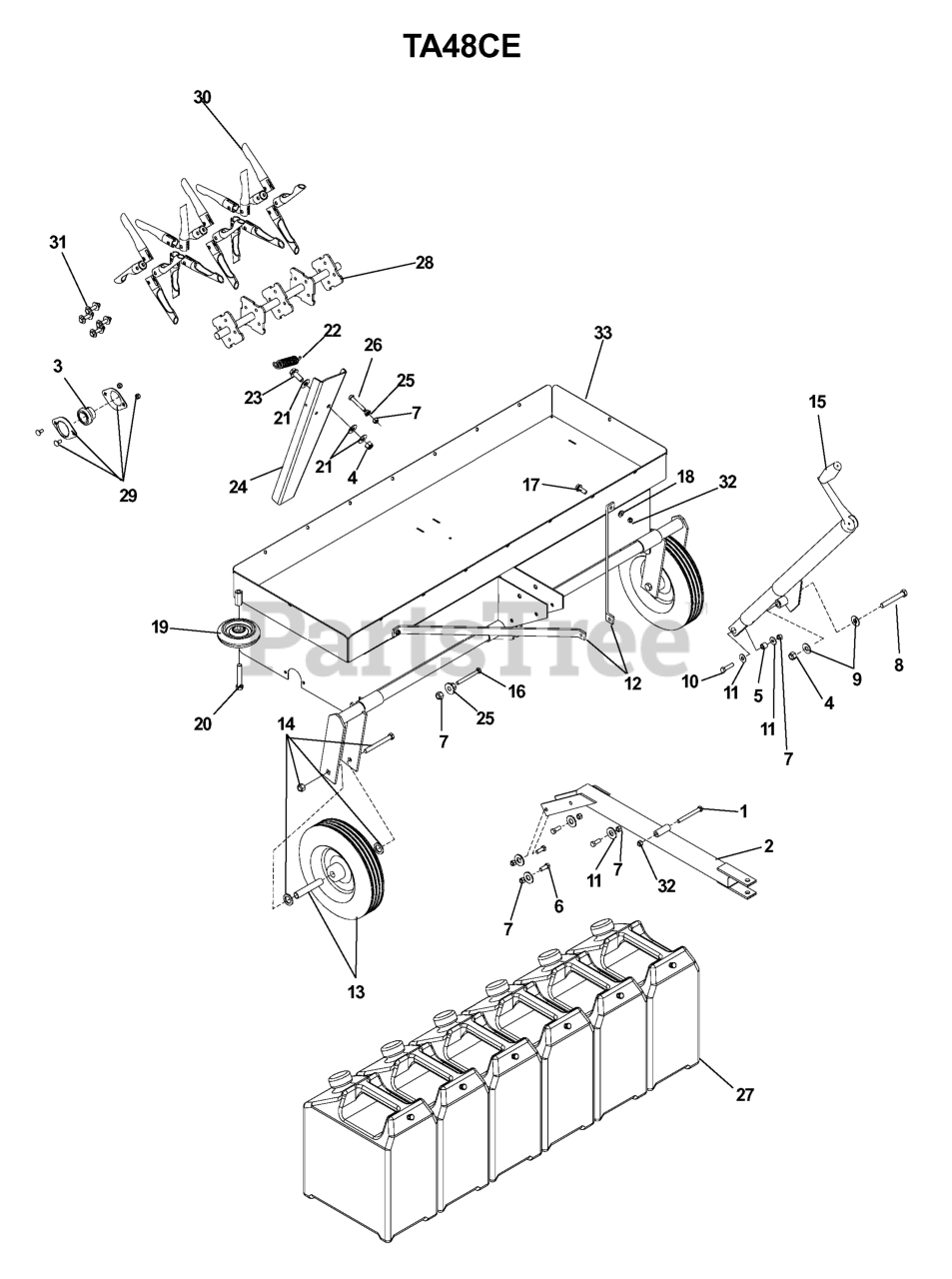

TINE SHIELD Parts Diagram

  • Title

15

Husqvarna 539108422

JACK, BLACK
(Superseded to 576638401)

$399.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539007563

WHEEL, 1 1/4X5 TOW AER

$36.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539106850

SPRING

$

$

Not available

18

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539101572

SCREW, 1/2C X 3 HEX CAP

$5.99

$

In Stock, Qty 9

0

Husqvarna 539108429

DECAL, INSTRUCTIONS

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539108428

TONGUE, BLACK

$157.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539109297

WATER TANKS (SET OF 6)

$

$

Not available

30

Husqvarna 539109294

TINE SET, 20 TINES

$400.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539000317

BRG 1" W/LOCKING COLLAR

$53.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

Husqvarna 539104789

DECAL, CROWN H

$

$

Not available

14

Husqvarna 539007566

BOLT KIT
(Superseded to 540007566)

$

$

Not available

8

Husqvarna 539108370

HCS 1/2-13 X 3-1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109175

TIE BAR, BLACK

$31.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539007101

BUSHING, AXLE PIVOT
(Superseded to 539010101)

$9.49

$

Usually ships in 3-10 days

0

1

Husqvarna 539990553

HCS 5/16 X 3

$5.99

$

In Stock, Qty 20+

0

13

Husqvarna 539007562

WHEEL.12X3.W/ROLLER.BEARING

$133.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539109295

FASTENER KIT, 1 ROTOR

$36.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539109296

ROTOR, BLACK
(Superseded to 539108416)

$

$

Not available

29

Husqvarna 539005786

STAMPING KIT 1" BRG

$

$

Not available

4

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539104804

DECAL, HUSQVARNA 15.5"

$11.99

$

Usually ships in 3-10 days

0

Husqvarna 539107311

CE DECAL

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539108725

FRAME, ORANGE

$

$

Not available

7

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 539108722

DECAL, TA48

$

$

Not available

24

Husqvarna 539108727

KICKSTAND, BLACK

$

$

Not available
