T4000 (9298-0) - Generac 4,000 Watt Portable Generator Generator No. 78825 Parts Diagram

4,000 Watt Portable Generator

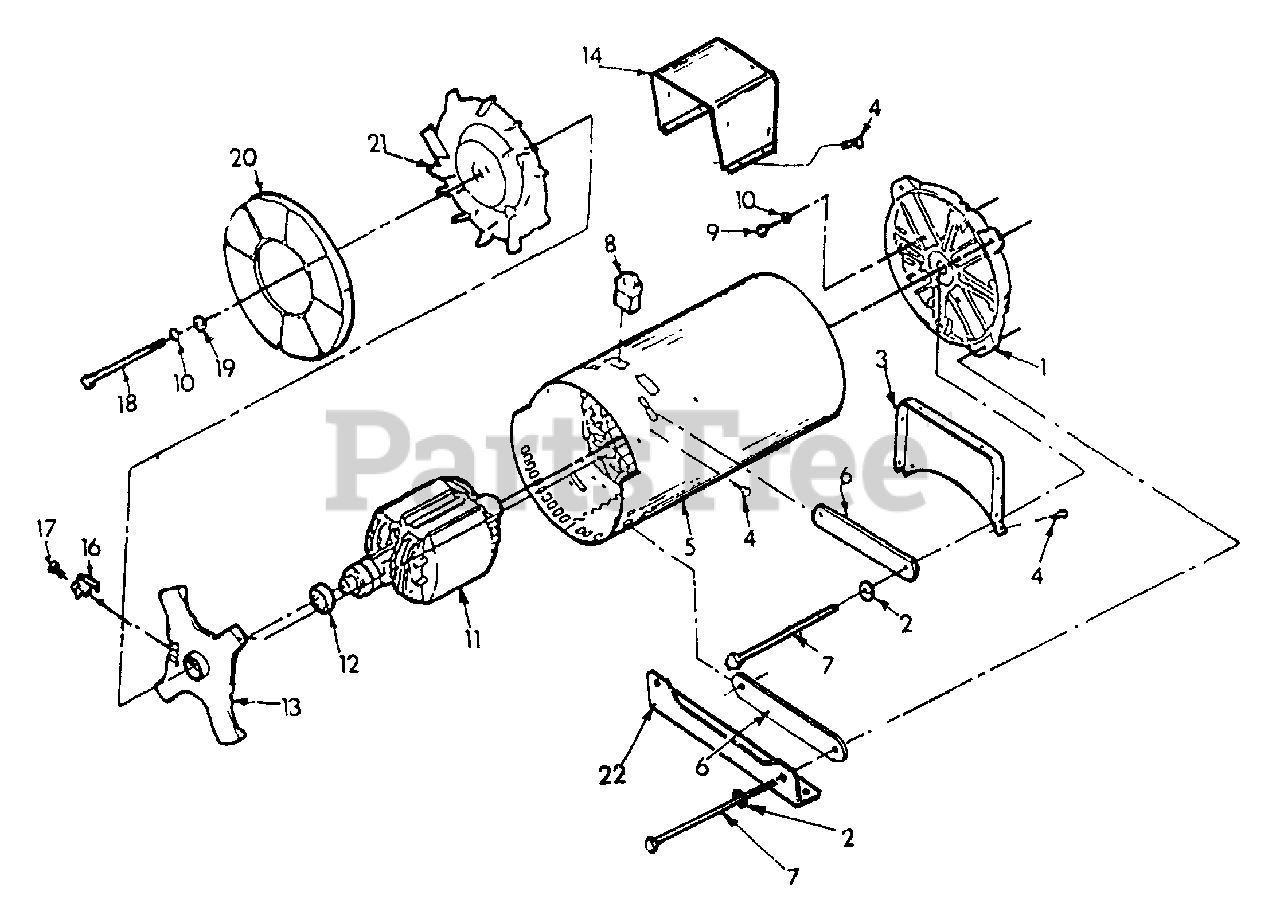

Generator No. 78825 Parts Diagram

  • Title

1

Briggs & Stratton 43873

HOUSING, ENGINE ADAPTOR

$

$

Currently unavailable

2

Briggs & Stratton 22097

WASHER, LOCK-1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 43874

BACK, PANEL SHROUD
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 24489

SCREW (TAPTITE)-NO. 10-32 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 75985

STATOR ASSEMBLY

$

$

Currently unavailable

6

Briggs & Stratton 44338

BAR, STATOR BOLT

$

$

Currently unavailable

7

Briggs & Stratton 44395E

BOLT, STATOR

$

$

Not available

8

Briggs & Stratton 79569

RECTIFIER ASSEMBLY, BRIDGE

$

$

Not available

9

Briggs & Stratton 22336

CAPSCREW, HEX HEAD-5/16"-24 x 3/4"

$

$

Not available

10

Briggs & Stratton 22129

WASHER, LOCK-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 75986

ROTOR ASSEMBLY

$

$

Currently unavailable

12

Briggs & Stratton 24049

BEARING, ROTOR

$

$

Not available

13

Briggs & Stratton 44943

CARRIER, BEARING

$

$

Currently unavailable

14

Briggs & Stratton 75971

SHROUD, PANEL

$

$

Currently unavailable

16

Briggs & Stratton 44723

BRUSH HOLDER ASSEMBLY

$

$

Not available

17

Briggs & Stratton 25105

SCREW (SIMS)-NO. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 75431

BOLT, ROTOR-5/16-24 x 8.5 LONG
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 50190

WASHER, FAN RETAINER
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 44357

COVER, COOLING FAN
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 44331

FAN, COOLING

$

$

Not available

22

Briggs & Stratton 77701A

SUPPORT, ALTERNATOR

$

$

Currently unavailable
