T4000 (9298-0) - Generac 4,000 Watt Portable Generator Control Panel No. 78804 Parts Diagram

4,000 Watt Portable Generator

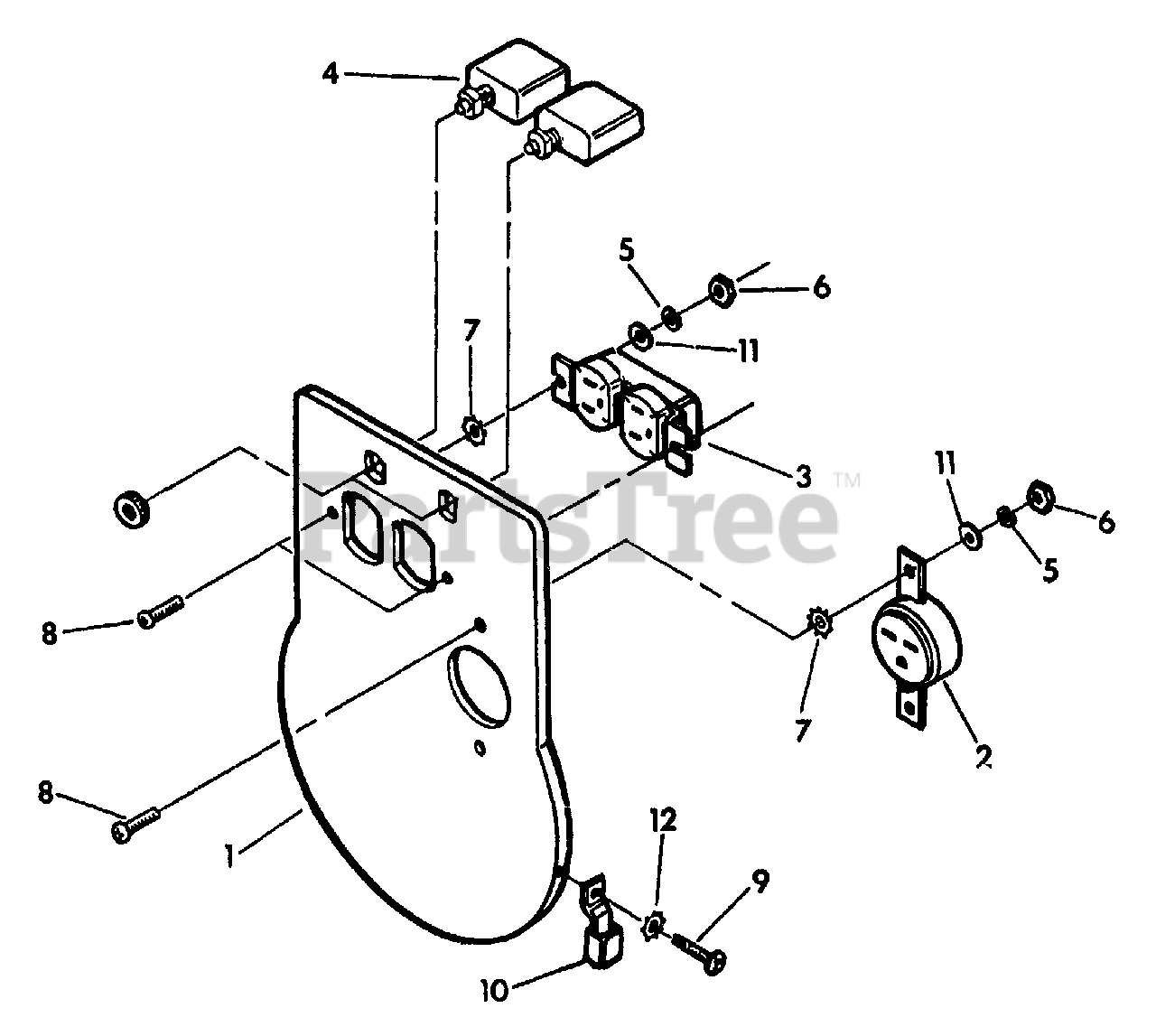

Control Panel No. 78804 Parts Diagram

  • Title

1

Briggs & Stratton 75981

PANEL, RECEPTACLE-SILKSCREENED

$

$

Currently unavailable

2

Briggs & Stratton 77249

RECEPTACLE-240 VOLTS, 15 AMP.
(Superseded to 77249GS)

$50.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 63025

RECEPTACLE-120 VOLTS, 15 AMP. (DUPLEX)
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 75207D

BREAKER, CIRCUIT-15 AMP.
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22264

WASHER, LOCK-M4

$

$

Not available

6

Briggs & Stratton 51715

NUT, HEX-M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23365

WASHER, SERRATED-M4
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 75475

SCREW, PAN HEAD MACHINE-M4-0.7 x 10 LONG

$

$

Not available

9

Briggs & Stratton 24489

SCREW (TAPTITE)-NO. 10-32 x 3/8"

$

$

Currently unavailable

10

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

11

Briggs & Stratton 38150

FLAT WASHER, NO. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22769

#10 SHAKEPROOF
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0
