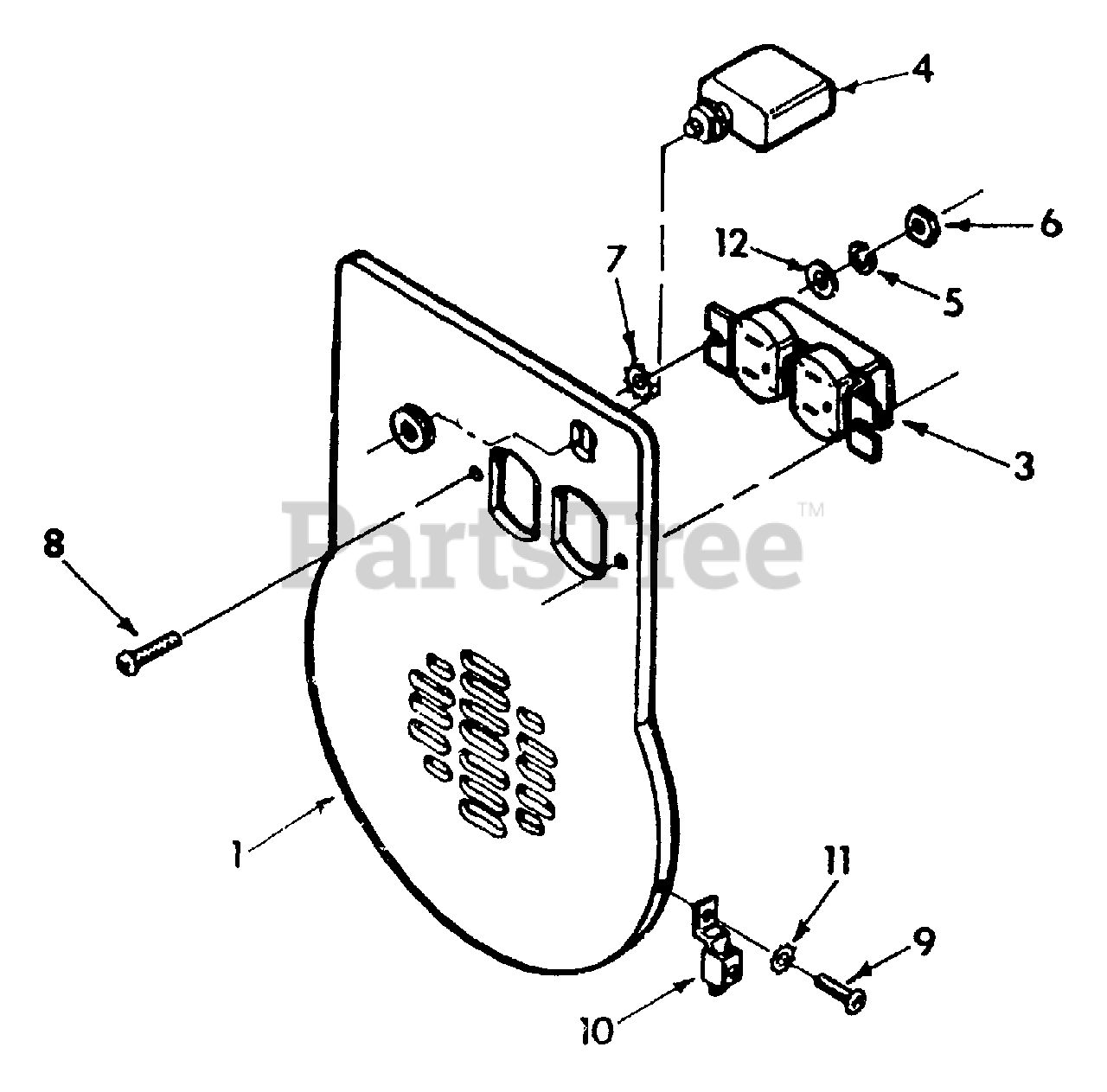

T2411 (5501-1) - Generac 2,400 Watt Portable Generator Receptacle Panel No. 79559 Parts Diagram

2,400 Watt Portable Generator

Receptacle Panel No. 79559 Parts Diagram

  • Title
1

Briggs & Stratton 75968

Receptacle Panel

$

$

Currently unavailable

3

Briggs & Stratton 68759

120 volts, 20 amp "Duplex" receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

4

Briggs & Stratton 75207

20 amp circuit breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

5

Briggs & Stratton 22264

M4 Lockwasher

$

$

Not available

6

Briggs & Stratton 51715

M4-0.70 x Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23365

M4 Serrated washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 75475

M4-0.70 x 10mm Pan head machine screw

$

$

Not available

9

Briggs & Stratton 24489

No. 10-32 x 3/8" Screw

$

$

Currently unavailable

10

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

11

Briggs & Stratton 22769

No. 10 Shakeproof washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 38150

No. 8 Flatwasher
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0
