T R500 J - Electrolux/AYP Tiller (1997) TINE SHIELD Parts Diagram

Tiller

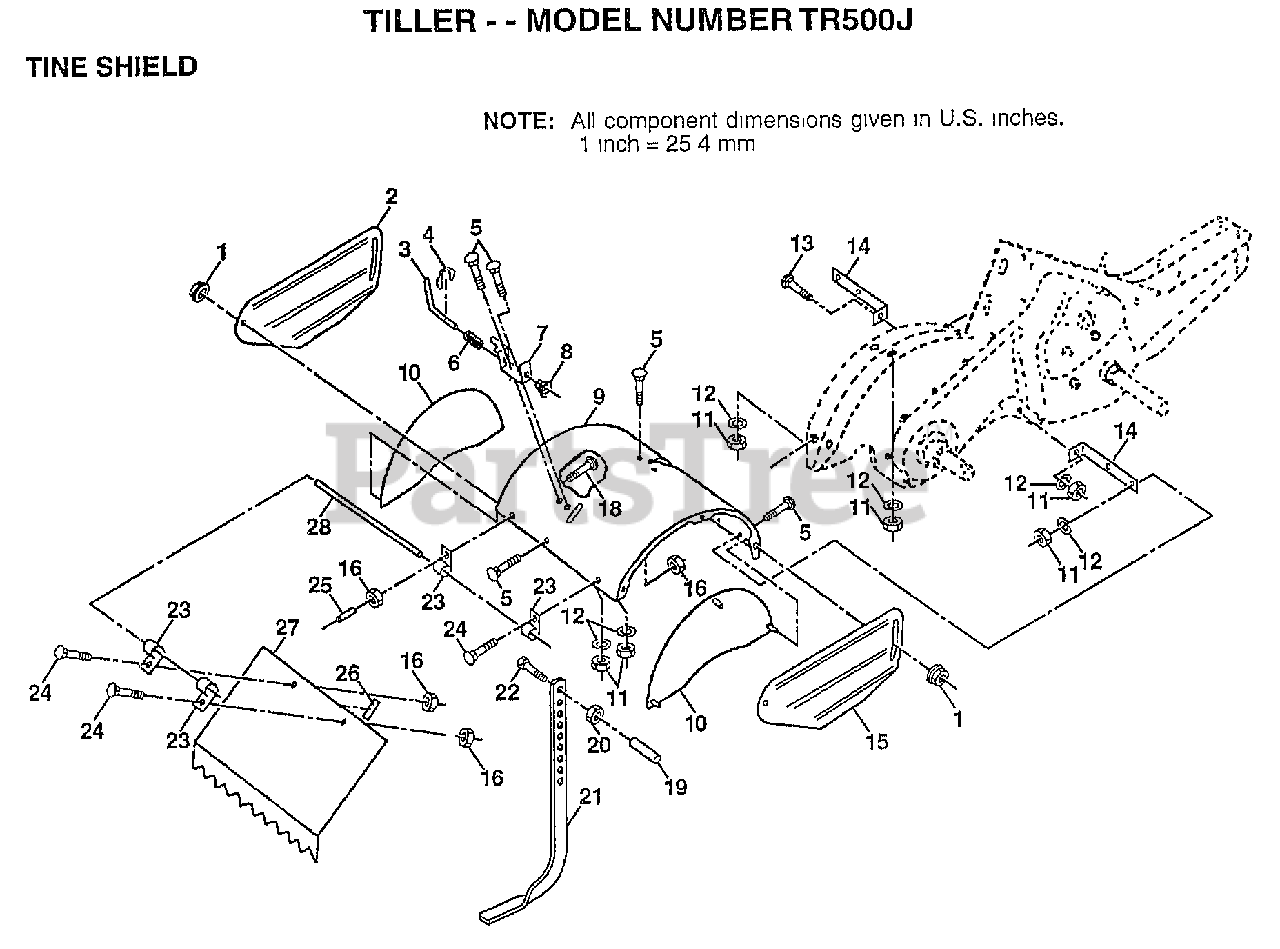

TINE SHIELD Parts Diagram

  • Title
1

Electrolux/AYP 98000129

NUT
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

2

Electrolux/AYP 104086X550

SHIELD.OUT.SD.LH.
(Superseded to 583684001)

$12.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 8393J

STAKE PIN TI
(Superseded to 532008393)

$31.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 8394J

SPRING TI
(Superseded to 532008394)

$9.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 8392J

LATCH BRACKET TI
(Superseded to 532008392)

$5.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 109230X

SPRING CRT
(Superseded to 532109230)

$6.49

$

In Stock, Qty 10

0

9

Electrolux/AYP 102326X550

SHIELD.TINE.PNT.
(Superseded to 532195793)

$

$

Not available

10

Electrolux/AYP 104085X550

SHIELD.SD.INNER
(Superseded to 581010312)

$

$

Not available

11

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72110510

BOLT
(Superseded to 872110510)

$7.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 124343X

BRKT SHIELD TINE
(Superseded to 584459301)

$37.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 104101X550

SHIELD.OUT.SD.RH.

$5.99

$

Usually ships in 3-10 days

0

16

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

18

Electrolux/AYP 72040410

BOLT
(Superseded to 872040410)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 102701X

GRIP CRT
(Superseded to 532102701)

$

$

Not available

20

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 102156X

SUB= 102156X500
(Superseded to 532144437)

$21.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 74930632

BOLT
(Superseded to 874930632)

$6.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 4440J

HINGE CRT
(Superseded to 532004440)

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 72140404

BOLT
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 6712J

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 102695X550

SHIELD.LEVELING

$12.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 120588X

PIN HINGE
(Superseded to 532120588)

$7.99

$

Usually ships in 3-10 days

0
