T F500 C - Electrolux/AYP Tiller TRANSMISSION ASSEMBLY Parts Diagram

Tiller

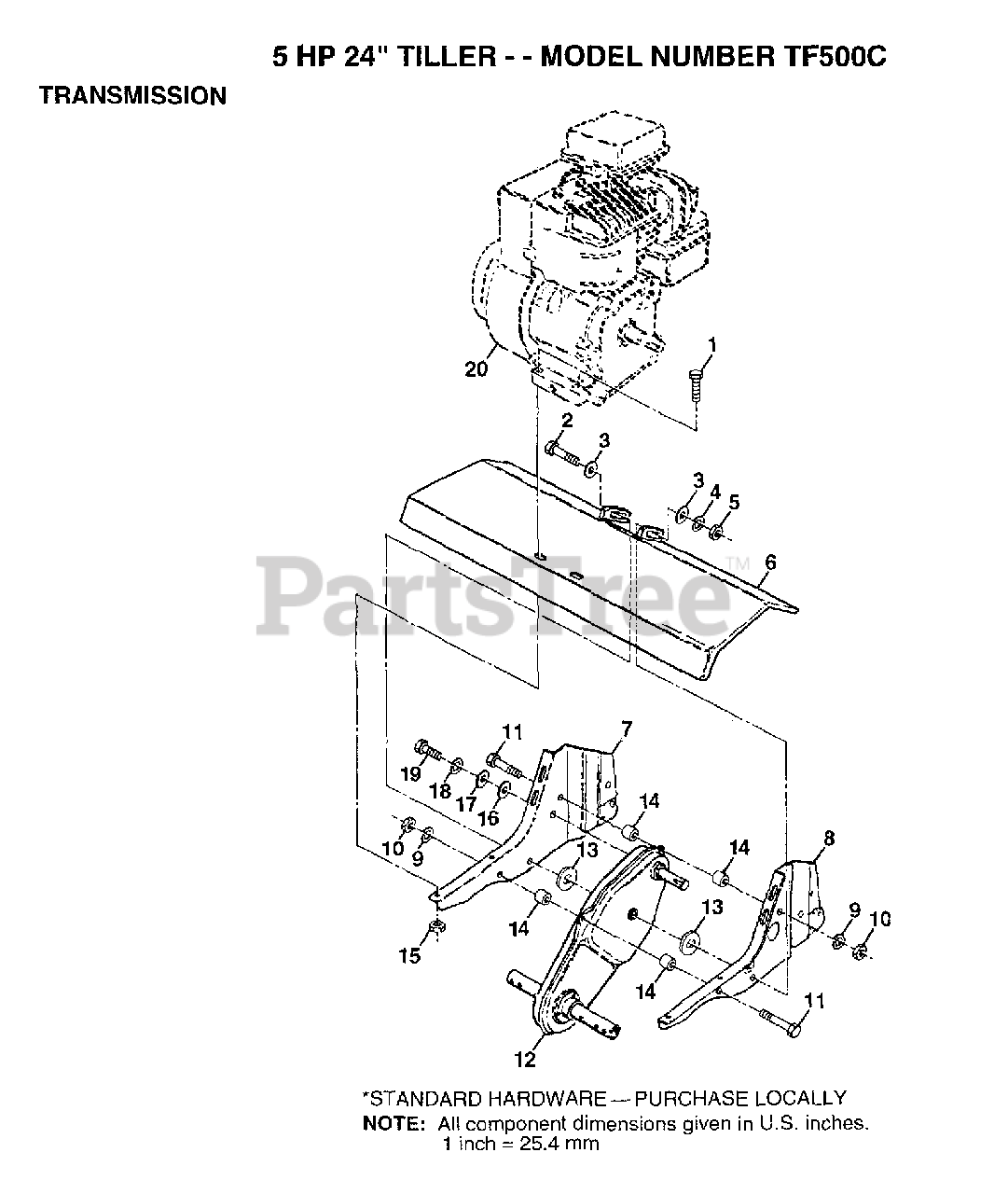

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 74610652

BOLT.3/8-24X3.75
(Superseded to 583613901)

$2.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 19131311

WASHER
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

4

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

6

$12.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 1949J

SUB= 1949J500
(Superseded to 532188195)

$

$

Not available

8

Electrolux/AYP 110519X

BRACKET.ENG.LH.

$18.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 74760544

SUB= 74780544
(Superseded to 874760544)

$

$

Not available

12

Electrolux/AYP 126669X

SUB= 532126669
(Superseded to 582800901)

$205.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 9173R

SPLIT SPACER RT
(Superseded to 583779801)

$6.49

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 19091412

WASHER
(Superseded to 582732101)

$

$

Not available

17

Electrolux/AYP 19092016

WASHER
(Superseded to 819092016)

$6.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 74610412

BOLT
(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0

20

REFER TO IMAGE

$

$

Not available
