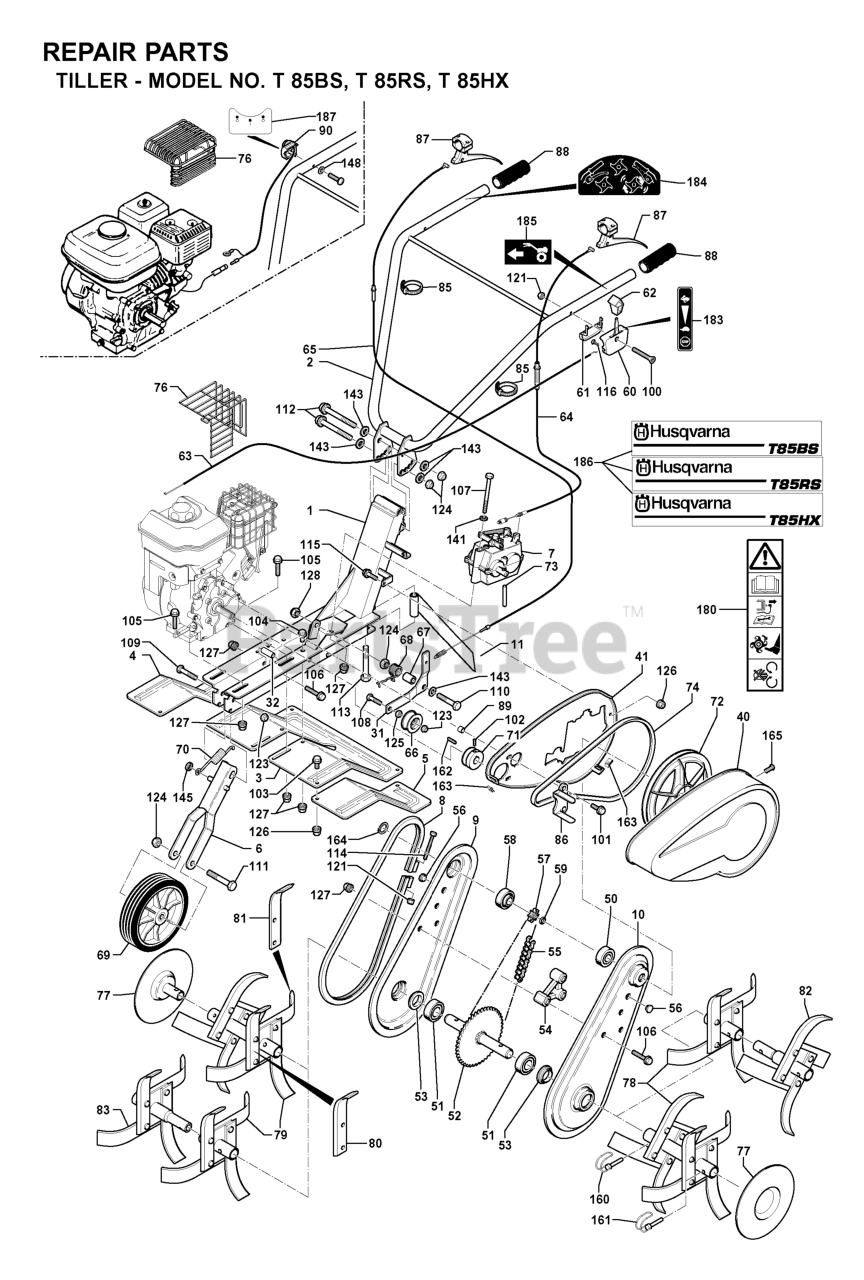

T 85 - Husqvarna Tiller (2005-01) PRODUCT COMPLETE Parts Diagram

Tiller

PRODUCT COMPLETE Parts Diagram

  • Title

531 00 94-09

Husqvarna 531009409

NEEDS DESCRIPTION

$

$

Not available

80

Husqvarna 519653447

BLADE

$

$

Not available

7

Husqvarna 519653092

GEAR

$

$

Not available

531 00 82-11

Husqvarna 531008211

NEEDS DESCRIPTION

$

$

Not available

165

Husqvarna 519653426

SCREW

$

$

Not available

51

Husqvarna 519653053

BEARING

$

$

Not available

67

Husqvarna 519653451

ROD

$

$

Not available

81

Husqvarna 519653448

BLADE

$

$

Not available

59

Husqvarna 519653094

SPACER

$

$

Not available

68

Husqvarna 519653090

SPRING

$

$

Not available

113

Husqvarna 531008220

NEEDS DESCRIPTION

$

$

Not available

60

Husqvarna 519653459

THROTTLE TRIGGER

$

$

Not available

54

Husqvarna 519653006

BRACKET

$

$

Not available

2

Husqvarna 531008201

NEEDS DESCRIPTION

$

$

Currently unavailable

31

Husqvarna 519653407

ARM

Note: Assy including: 31,124, 67, 143, 215, 213, 125, 66, 123

$

$

Not available

55

Husqvarna 519653009

DRIVE CHAIN

$

$

Not available

115

Husqvarna 531008253

NEEDS DESCRIPTION

$

$

Not available

531 00 94-17

Husqvarna 531009417

NEEDS DESCRIPTION

$

$

Currently unavailable

53

Husqvarna 531008576

NEEDS DESCRIPTION

$

$

Not available

72

Husqvarna 519653060

PULLEY

$

$

Not available

64

Husqvarna 531008209

NEEDS DESCRIPTION

$

$

Currently unavailable

106

Husqvarna 519653463

NEEDS DESCRIPTION

$

$

Not available

126

Husqvarna 519653432

NUT

$

$

Not available

4

Husqvarna 531008204

NEEDS DESCRIPTION

$

$

Currently unavailable

61

Husqvarna 519649471

THROTTLE CONTROL

$

$

Not available

121

Husqvarna 732261601

Blocking nut M 6 Z

$

$

Not available

185

Husqvarna 519653084

LABEL

$

$

Not available

125

Husqvarna 519653456

NUT

$

$

Not available

128

Husqvarna 531008221

NEEDS DESCRIPTION

$

$

Not available

123

Husqvarna 519653458

NUT

$

$

Not available

103

Husqvarna 519653435

SCREW

$

$

Not available

6

Husqvarna 519653460

SUPPORT

$

$

Not available

89

Husqvarna 531008216

NEEDS DESCRIPTION

$

$

Not available

108

Husqvarna 519653455

SCREW

$

$

Not available

83

Husqvarna 531008215

NEEDS DESCRIPTION

$

$

Not available

87

Husqvarna 519654065

THROTTLE CONTROL

$

$

Not available

100

Husqvarna 519653461

SCREW

$

$

Not available

32

Husqvarna 519653424

SPACER

$

$

Not available

531 00 94-16

Husqvarna 531009416

NEEDS DESCRIPTION

$

$

Currently unavailable

71

Husqvarna 519653068

PULLEY

$

$

Not available

79

Husqvarna 519653029

TINE

$

$

Not available

5

Husqvarna 531008205

NEEDS DESCRIPTION

$

$

Currently unavailable

102

Husqvarna 519653020

SCREW

$

$

Not available

141

Husqvarna 519653450

WASHER

$

$

Not available

519 65 30-81

Husqvarna 519653081

NEEDS DESCRIPTION

$

$

Currently unavailable

58

Husqvarna 531008546

NEEDS DESCRIPTION

$

$

Not available

163

Husqvarna 519653425

CLIP

$

$

Not available

41

Husqvarna 531008208

NEEDS DESCRIPTION

$

$

Not available

187

Husqvarna 519653103

DECAL

$

$

Not available

76

Husqvarna 531008582

NEEDS DESCRIPTION

$

$

Not available

111

Husqvarna 519653131

NEEDS DESCRIPTION

$

$

Not available

1

Husqvarna 531008200

NEEDS DESCRIPTION

$

$

Currently unavailable

124

Husqvarna 725255051

SCREW NLA

$4.49

$

Usually ships in 3-10 days

0

164

Husqvarna 519653466

RETAINING RING

$

$

Not available

82

Husqvarna 531008214

NEEDS DESCRIPTION

$

$

Not available

74

Husqvarna 519653058

BELT

$

$

Not available

104

Husqvarna 531008202

NEEDS DESCRIPTION

$

$

Not available

531 00 94-14

Husqvarna 531009414

NEEDS DESCRIPTION

$

$

Currently unavailable

63

Husqvarna 531008579

NEEDS DESCRIPTION

$

$

Currently unavailable

145

Husqvarna 519653462

NEEDS DESCRIPTION

$

$

Not available

107

Husqvarna 519653045

SCREW

$

$

Not available

162

Husqvarna 519653021

SCREW

$

$

Not available

148

Husqvarna 531008539

NEEDS DESCRIPTION

$

$

Currently unavailable

109

Husqvarna 519653046

SCREW

$

$

Not available

11

Husqvarna 531008206

NEEDS DESCRIPTION

$

$

Not available

105

Husqvarna 519653413

SCREW

$

$

Not available

70

Husqvarna 519650260

SPRING

$

$

Not available

183

Husqvarna 519646680

NEEDS DESCRIPTION

$

$

Not available

143

Husqvarna 519653453

WASHER

$

$

Not available

112

Husqvarna 531008219

NEEDS DESCRIPTION

$

$

Currently unavailable

160

Husqvarna 531009410

NEEDS DESCRIPTION

$

$

Not available

186

Husqvarna 531009415

NEEDS DESCRIPTION

$

$

Currently unavailable

40

Husqvarna 531008207

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 519653042

HOUSING

$

$

Not available

180

Husqvarna 531008540

NEEDS DESCRIPTION

$

$

Not available

85

Husqvarna 519653232

NEEDS DESCRIPTION

$

$

Not available

184

Husqvarna 519653085

LABEL

$

$

Not available

127

Husqvarna 519653430

NUT

$

$

Not available

90

Husqvarna 531008558

NEEDS DESCRIPTION

$

$

Currently unavailable

114

Husqvarna 519653010

BOLT

$

$

Not available

531 00 94-18

Husqvarna 531009418

NEEDS DESCRIPTION

$

$

Currently unavailable

62

Husqvarna 516836515

KNOB

$

$

Not available

56

Husqvarna 519653391

NEEDS DESCRIPTION

$

$

Not available

78

Husqvarna 519653028

TINE

$

$

Not available

77

Husqvarna 519653362

NEEDS DESCRIPTION

$

$

Not available

73

Husqvarna 519653067

SHAFT

$

$

Not available

519 65 31-02

Husqvarna 519653102

CABLE

$

$

Not available

9

Husqvarna 519653041

HOUSING

$

$

Not available

122

Husqvarna 519006200

NUT

$

$

Not available

69

Husqvarna 519653000

WHEEL
(Superseded to 519653259)

$

$

Not available

161

Husqvarna 531009411

NEEDS DESCRIPTION

$

$

Not available

88

Husqvarna 519000113

HANDLE

$

$

Not available

116

Husqvarna 531009412

NEEDS DESCRIPTION

$

$

Not available

101

Husqvarna 519653412

SCREW

$

$

Not available

66

Husqvarna 519653457

PULLEY

$

$

Not available

86

Husqvarna 531008577

NEEDS DESCRIPTION

$

$

Not available

50

Husqvarna 519002631

BEARING

$

$

Not available

3

Husqvarna 531008203

NEEDS DESCRIPTION

$

$

Currently unavailable

110

Husqvarna 519653454

SCREW

$

$

Not available

8

Husqvarna 519653043

RING

$

$

Not available

57

Husqvarna 519653057

PINION

$

$

Not available

531 00 82-13

Husqvarna 531008213

NEEDS DESCRIPTION

$

$

Not available

65

Husqvarna 531008210

NEEDS DESCRIPTION

$

$

Currently unavailable

52

Husqvarna 519653007

GEAR

$

$

Not available
