T-816 (71691046) - Allis-Chalmers Garden Tractor, 16hp Frame Group Parts Diagram

Garden Tractor, 16hp

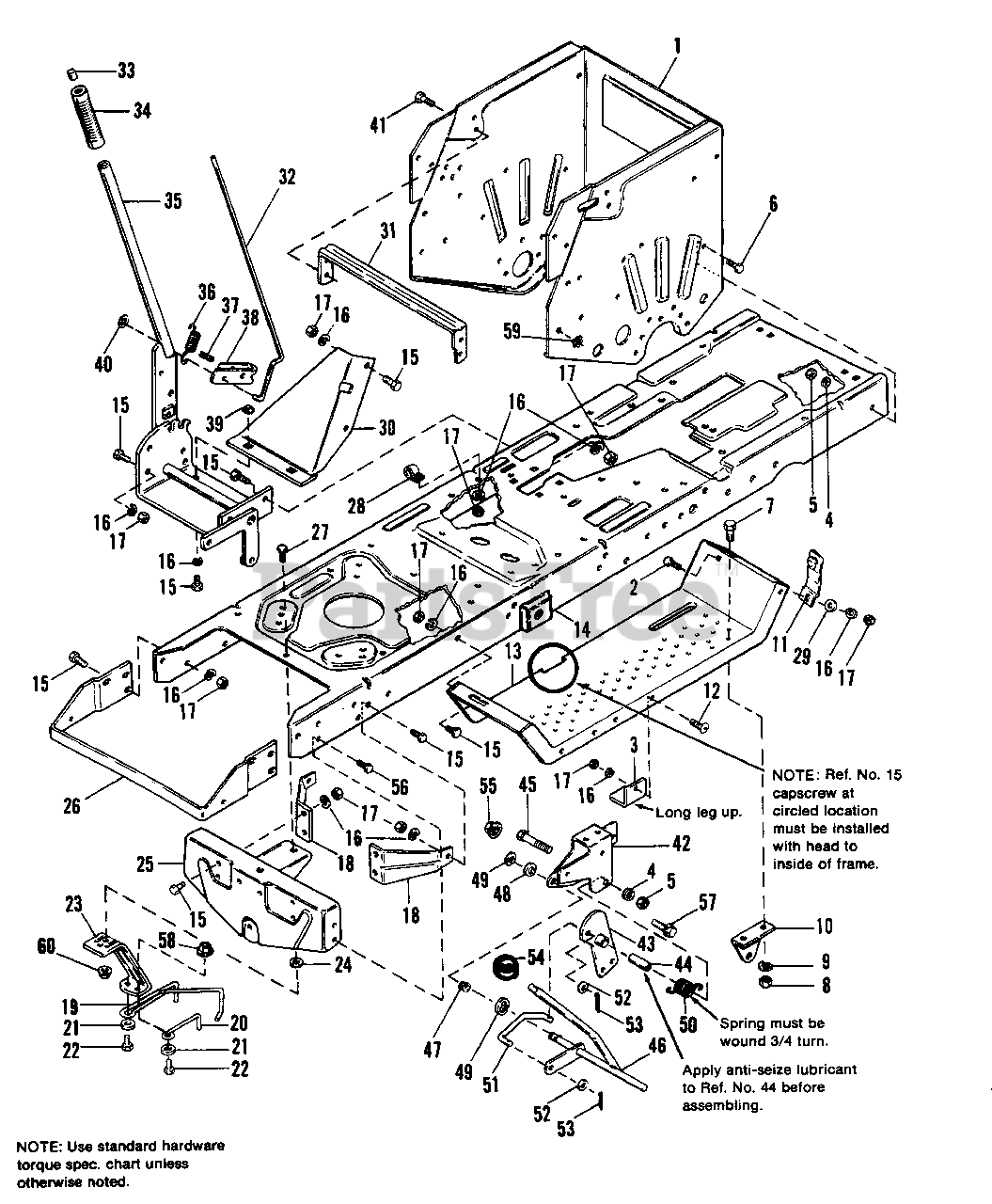

Frame Group Parts Diagram

  • Title

1

Simplicity 1671749

SUPPORT, Axle Wrapper

$

$

Not available

2

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

3

Simplicity 1669168

UP-STOP, Mower

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 1921965SM

CAPSCREW, Hex, 3/8-16 x 3/4
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1921959SM

CAPSCREW, Hex, 1/4-20 x 5/8
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

8

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

10

Simplicity 1654783

SUPPORT, Clutch

$

$

Not available

11

Simplicity 1672075

LATCH Assy.

$

$

Not available

12

Simplicity 1918249SM

SCREW, Truss Hd., Slotted, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1674141

FOOTREST

$

$

Not available

14

Simplicity 1674420

FRAME

$

$

Not available

15

Simplicity 1921332SM

CAPSCREW, Hex, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1655076

BRACE, Axle Support

$

$

Not available

19

Simplicity 1672118SM

STOP, Belt

$9.99

$

Usually ships in 2-12 days

0

20

Simplicity 1665812SM

STOP, Belt

$20.99

$

In Stock, only 1 left!

0

21

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1923325SM

CAPSCREW, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

23

Simplicity 1669169

SUPPORT, Belt Guide

$

$

Not available

24

Simplicity 1919381SM

WASHER, Plain, 11/32
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 1663855

SUPPORT ASSY., Axle

$

$

Not available

26

Simplicity 1666954

SUPPORT, Hood

$

$

Not available

27

Simplicity 1930595SM

CAPSCREW, Hex, 5/16-18 x 1

$3.99

$

In Stock, Qty 5

0

28

Simplicity 122186

CLAMP

$

$

Not available

29

Simplicity 1919326SM

WASHER, 5/16 Std.

$4.49

$

In Stock, Qty 8

0

30

Simplicity 1701223

BRACE, Lift

$

$

Not available

31

Simplicity 1654707

BRACE, Seat

$

$

Not available

32

Simplicity 1667290SM

ROD, Latch

$47.99

$

Usually ships in 2-12 days

0

33

Simplicity 1650157SM

BUTTON

$7.49

$

Usually ships in 2-12 days

0

34

Simplicity 2156209

GRIP
(Superseded to 1713995SM)

$12.99

$

Usually ships in 2-12 days

0

35

Simplicity 1667295SM

LEVER ASSY., Lift

$225.99

$

Usually ships in 2-12 days

0

36

Simplicity 1667286SM

SPRING

$9.99

$

Usually ships in 2-12 days

0

37

Simplicity 1927609SM

PIN, Spring, 3/8 x 1

$3.49

$

In Stock, Qty 5

0

38

Simplicity 1657648SM

LATCH, Lever

$

$

Not available

39

Simplicity 2816159

NUT, Speed, 5/16-18

$

$

Not available

40

Simplicity 2834953

PUSHNUT

$

$

Not available

41

Simplicity 2824856

SCREW, Taptite, 5/16-18 x 1/2

$

$

Not available

42

Simplicity 1669113

BRACKET, P.T.O.

$

$

Not available

43

Simplicity 1669108

ARM ASSY., P.T.O. Rod

$

$

Not available

44

Simplicity 1669105SM

SPACER

$13.99

$

In Stock, only 2 left!

0

45

Simplicity 1922130SM

CAPSCREW, Hex, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

46

Simplicity 1702437

HANDLE ASSY., P.T.O.

$

$

Not available

47

Simplicity 1669197

BUSHING, Split

$

$

Not available

48

Simplicity 1960027SM

WASHER
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 2158399SM

RING, Snap
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

50

Simplicity 1669339

SPRING, Torsion

$

$

Not available

51

Simplicity 1669104

LINK, P.T.O.

$

$

Not available

52

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

53

Simplicity 1918447SM

PIN, Cotter, 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

54

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

55

Simplicity 1930641SM

NUT, Flange, Whizlock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

56

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

57

Simplicity 936517

CAPSCREW, Hex, Wash. Hd., 1/4-20 x 5/8

$

$

Not available

58

Simplicity 1935048SM

LOCKNUT, Hex, Flange, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

59

Simplicity 2820427SM

LOCKWASHER, 3/8 (Zinc Pltd.)
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

60

Simplicity 1927557SM

NUT, Hex Flange Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0
