T-811 (1690686) - Allis-Chalmers Garden Tractor, 11hp Linkage & Drive Group Parts Diagram

Garden Tractor, 11hp

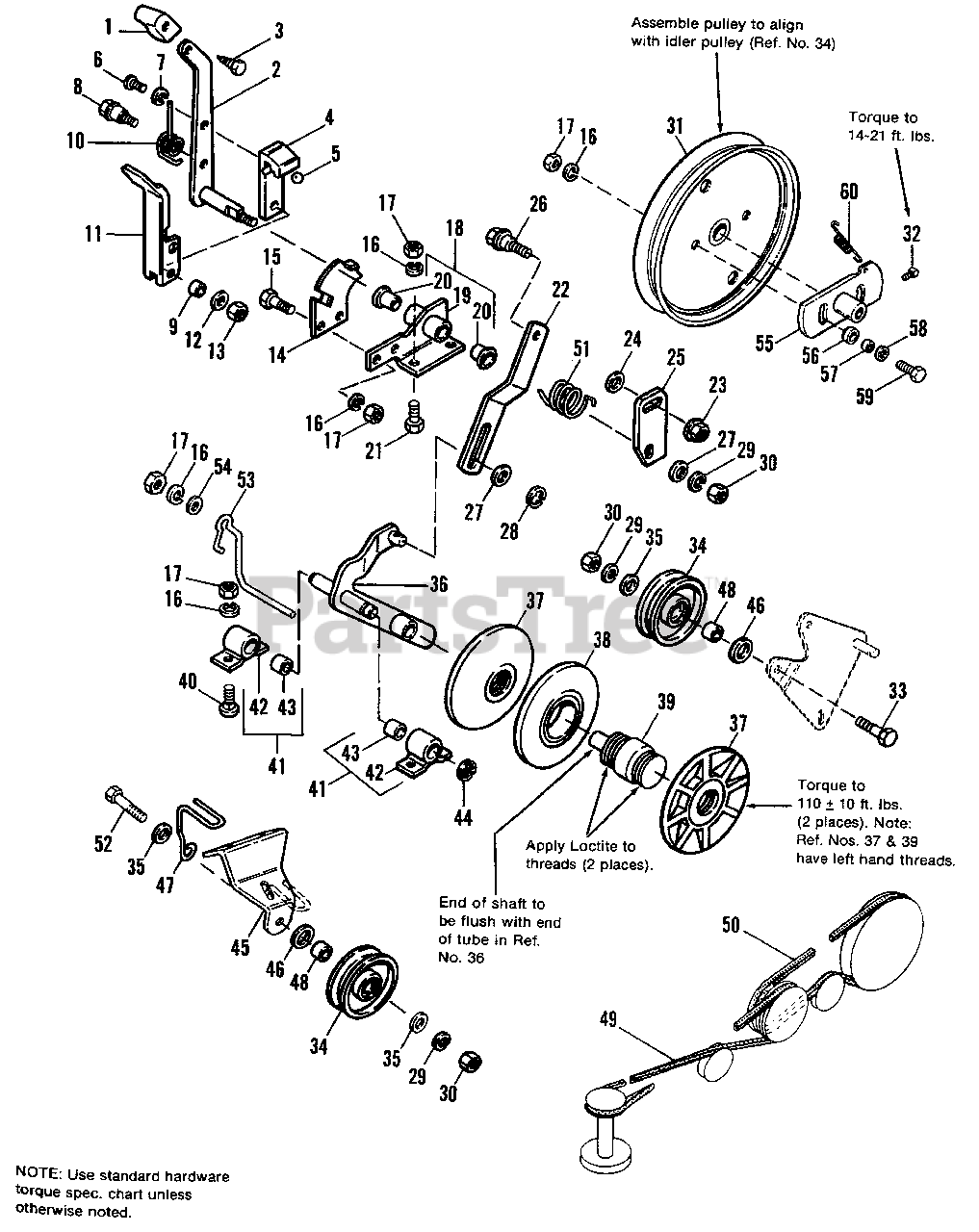

Linkage & Drive Group Parts Diagram

  • Title

1

Simplicity 2171165

KNOB

$

$

Not available

2

Simplicity 1674927

CONTROL LEVER ASSY.

$

$

Not available

3

Simplicity 2829783

SCREW, Thd. Form, 1/4-20 x 3/4

$

$

Not available

4

Simplicity 171432

STOP, Clamp

$

$

Not available

5

Simplicity 2166178SM

BALL, Shift Handle

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 2826025

SCREW, Rd. Hd. Phil., 1/4-20 x 1/2

$

$

Not available

7

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 2166051SM

BOLT, Shoulder

$

$

Not available

9

Simplicity 166063

SPACER

$

$

Not available

10

Simplicity 2166047SM

SPRING

$

$

Not available

11

Simplicity 171779

HANDLE

$

$

Not available

12

Simplicity 2817377

WASHER, 1/4

$

$

Not available

13

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

14

Simplicity 1669412

PLATE, Side

$

$

Not available

15

Simplicity 2821332

SCREW, Hex, 5/16-18 x 3/4

$

$

Not available

16

Simplicity 1917356SM

LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1673977

SUPPORT ASSY., w/Bushings (Includes Ref. No. 19 & 20)

$

$

Not available

19

SUPPORT ASSY. (See Ref. No. 18)

$

$

Not available

20

Simplicity 1663114SM

BUSHING

$4.49

$

In Stock, only 3 left!

0

21

Simplicity 2823325

SCREW, hex, 5/16-18 x 7/8

$

$

Not available

22

Simplicity 1674901

BAR, Push

$

$

Not available

23

Simplicity 2828352

LOCKNUT, Flange, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 5

0

24

Simplicity 2822755

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

25

Simplicity 1669416

PLATE, Lift

$

$

Not available

26

Simplicity 1669403

BOLT, Shoulder

$

$

Not available

27

Simplicity 2818266

WASHER, 3/8

$

$

Not available

28

Simplicity 2828197SM

E-RING

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

30

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

31

Simplicity 1674377

PULLEY ASSY., Transmission

$

$

Not available

32

Simplicity 2828721

SETSCREW
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

33

Simplicity 2821969

SCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

34

Simplicity 1685147SM

PULLEY ASSY.

$73.99

$

Usually ships in 2-12 days

0

35

Simplicity 2817642

WASHER, 5/16

$

$

Not available

36

Simplicity 1675176

ARM ASSY., Swing

$

$

Not available

37

Simplicity 1675280

SHEAVE, Single

$

$

Not available

38

Simplicity 1675279SM

SHEAVE, Double w/Sleeve

$182.99

$

Usually ships in 2-12 days

0

39

Simplicity 1669348

HUB ASSY.

$

$

Not available

40

Simplicity 2831333

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

41

Simplicity 1668798SM

PIVOT ASSY., Variator w/Bushing (Includes Ref. No. 42 & 43)

$75.99

$

Usually ships in 2-12 days

0

42

PIVOT ASSY., Variator (See Ref. No. 41)

$

$

Not available

43

Simplicity 2158544SM

BEARING

$

$

Not available

44

Simplicity 2827793SM

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

45

Simplicity 1674636

SUPPORT, Idler

$

$

Not available

46

Simplicity 2822755

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

47

Simplicity 1674635

BELT STOP, Idler

$

$

Not available

48

Simplicity 1666294SM

SPACER

$4.99

$

In Stock, Qty 20+

0

49

Simplicity 1674898SM

BELT, Primary Variator

$49.99

$

In Stock, only 3 left!

0

50

Simplicity 1674899SM

BELT, Secondary Variator

$49.99

$

Usually ships in 2-12 days

0

51

Simplicity 1669615

SPRING, Torsion

$

$

Not available

52

Simplicity 2821971

SCREW, Hex, 3/8-16 x 1-3/4

$

$

Not available

53

Simplicity 1675175SM

STOP, Belt

$18.99

$

Usually ships in 2-12 days

0

54

Simplicity 2819326

WASHER, 5/16

$

$

Not available

55

Simplicity 1674373

HUB ASSY., Drive

$

$

Not available

56

Simplicity 1675482SM

ROLLER

$11.99

$

Usually ships in 2-12 days

0

57

Simplicity 1675481SM

SPACER

$

$

Not available

58

Simplicity 2833468

WASHER

$

$

Not available

59

Simplicity 2826149SM

CAPSCREW, 5/16-18 x 1

$3.49

$

Usually ships in 2-12 days

0

60

Simplicity 1678341SM

SPRING

$

$

Not available
