T-8 (990982) - Homelite Lawn Tractor, 8hp Lift Assembly & PTO Group (3857I04) Parts Diagram

Lawn Tractor, 8hp

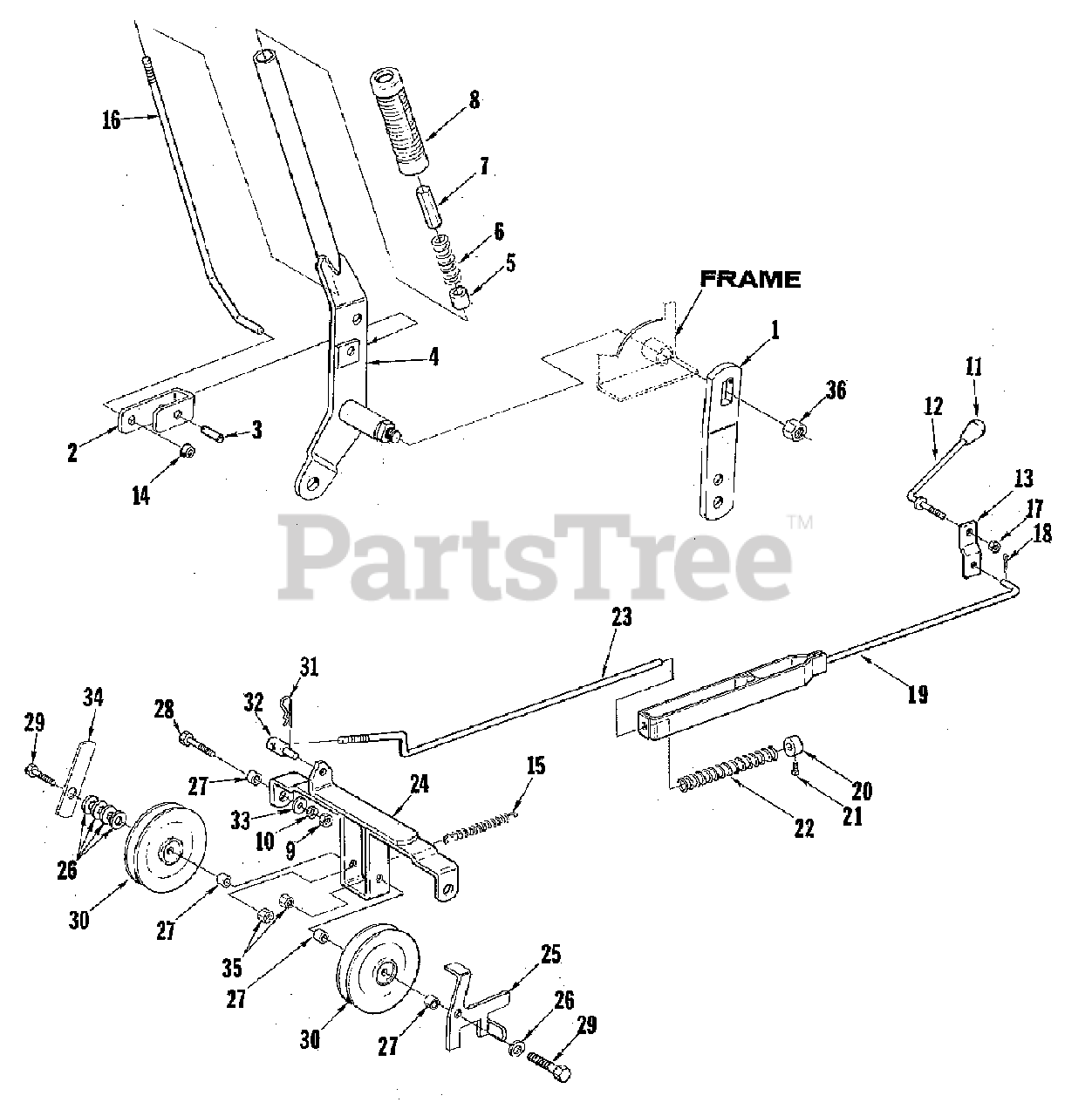

Lift Assembly & PTO Group (3857I04) Parts Diagram

  • Title
1

Simplicity LM-01764-64

LINK, Lift Lever

$

$

Not available

2

Simplicity LM-01542-24

LATCH, Lift Lever

$

$

Not available

3

Simplicity LM-09181-13

PIN, Spring, 3/8 x 1

$

$

Not available

4

$

$

Not available

$

$

Not available

$

$

Not available

7

Simplicity LM-01542-27

BUTTON, Thumb

$

$

Not available

8

Simplicity LM-01562-09

GRIP, Handle

$

$

Not available

9

Simplicity LM-09169-50

NUT, Hex Fin, 3/8-16

$

$

Not available

10

Simplicity LM-09169-65

LOCKWASHER, 3/8

$

$

Not available

$

$

Not available

12

Simplicity LM-01720-40

HANDLE, Clutch Control

$

$

Not available

$

$

Not available

14

Simplicity LM-01700-15

FASTENER, Nut

$

$

Not available

15

Simplicity LM-01591-06

SPRING, Tension

$

$

Not available

16

$

$

Not available

17

Simplicity LM-09234-28

NUT, Lock, Hex, 3/8-16

$

$

Not available

18

$

$

Not available

19

Simplicity LM-01764-76

GUIDE ASSEMBLY, PTO

$

$

Not available

20

$

$

Not available

21

Simplicity LM-09038-07

SETSCREW, Square Head, 1/4-20 x 3/8

$

$

Not available

22

Simplicity LM-16065-36

SPRING, Compression

$

$

Not available

$

$

Not available

24

Simplicity LM-16065-30

CLEVIS ASSEMBLY, Pulley

$

$

Not available

25

$

$

Not available

26

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

$

$

Not available

28

Simplicity LM-09077-31

CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

29

Simplicity LM-09237-01

CAPSCREW, Hex Head, 3/8-16 x 2

$

$

Not available

$

$

Not available

31

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

32

Simplicity LM-16066-23

PIVOT, Rod End

$

$

Not available

33

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

34

$

$

Not available

35

Simplicity LM-09283-52

NUT, Flange Wizlock, 3/8-16

$

$

Not available

36

Simplicity LM-07180-63

NUT, Hex Jam, 1/2-13

$

$

Not available
