T-8 (990982) - Homelite Lawn Tractor, 8hp Engine, Clutch & Brake Group (3857I03) Parts Diagram

Lawn Tractor, 8hp

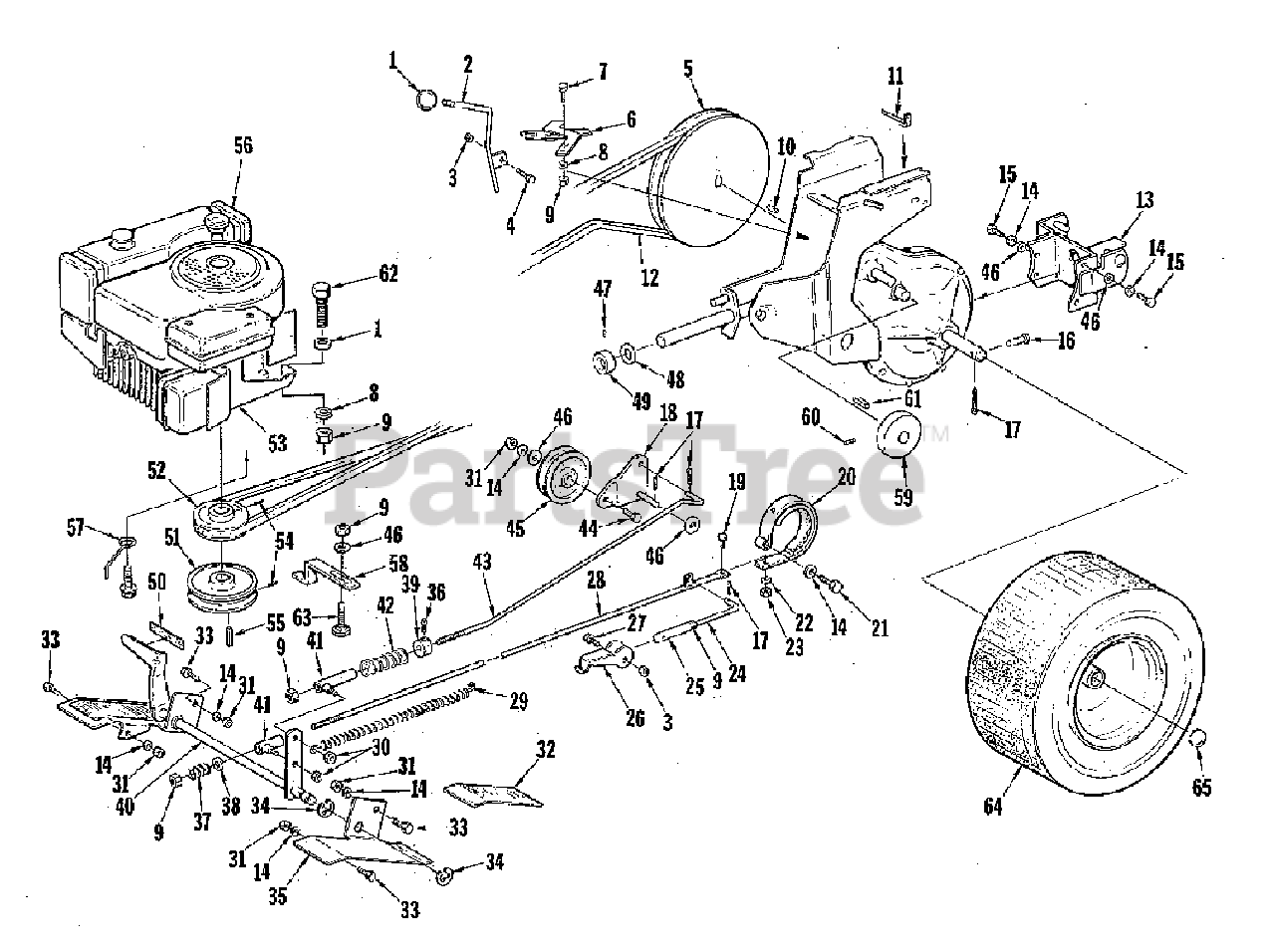

Engine, Clutch & Brake Group (3857I03) Parts Diagram

  • Title

1

Simplicity LM-16010-42

KNOB, Ball

$

$

Not available

2

Simplicity LM-01650-63

ROD ASSEMBLY, Shift

$

$

Not available

3

Simplicity LM-09233-58

NUT, Lock, Hex Fin, 1/4-20

$

$

Not available

4

Simplicity LM-09160-19

CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

5

Simplicity LM-01561-19

PULLEY, Transmission

$

$

Not available

6

Simplicity LM-01701-72

PIVOT ASSEMBLY

$

$

Not available

7

Simplicity LM-09173-97

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

8

Simplicity LM-09173-56

LOCKWASHER

$

$

Not available

9

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

10

Simplicity LM-09221-39

KEY

$

$

Not available

11

Simplicity LM-16068-20

CLIP, "J", Open

$

$

Not available

12

Simplicity LM-01620-81

BELT, "V", Drive

$

$

Not available

13

Simplicity LM-16075-67

DRAWBAR & HITCH ASSEMBLY

$

$

Not available

14

Simplicity LM-09169-65

LOCKWASHER, 3/8

$

$

Not available

15

Simplicity LM-09219-65

CAPSCREW, 3/8-16 x 3/4

$

$

Not available

16

Simplicity LM-01180-53

PIN

$

$

Not available

17

Simplicity LM-09184-51

PIN, Cotter

$

$

Not available

18

Simplicity LM-01620-21

BRACKET ASSEMBLY, Pulley

$

$

Not available

19

Simplicity LM-09221-29

CAPSCREW, Hex Head, 1/4-20 x 1/2

$

$

Not available

20

Simplicity LM-01561-34

BAND ASSEMBLY, Brake

$

$

Not available

21

Simplicity LM-09193-60

CAPSCREW, Hex Head, 3/8-16 x 1-1/2

$

$

Not available

22

Simplicity LM-09169-64

LOCKWASHER, 1/4

$

$

Not available

23

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

24

Simplicity LM-16065-04

ROD, Parking Brake

$

$

Not available

25

Simplicity LM-01719-94

ROD, End

$

$

Not available

26

Simplicity LM-01721-08

LEVER

$

$

Not available

27

Simplicity LM-09173-96

CAPSCREW, Hex Head, 1/4-20 x 1

$

$

Not available

28

Simplicity LM-16080-92

ROD ASSEMBLY, Brake

$

$

Not available

29

Simplicity LM-01650-68

SPRING, Return

$

$

Not available

30

Simplicity LM-09233-62

NUT, Hex, Lock

$

$

Not available

31

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

32

Simplicity LM-01620-54

COVER, Foot Rest

$

$

Not available

33

Simplicity LM-09081-27

CAPSCREW

$

$

Not available

34

Simplicity LM-16021-55

RING, "E"

$

$

Not available

35

Simplicity LM-01620-29

FOOT REST, L.H.

$

$

Not available

36

Simplicity LM-09038-07

SETSCREW, Square Head, 1/4-20 x 3/8

$

$

Not available

37

Simplicity LM-01571-27

SPRING, Conical

$

$

Not available

38

Simplicity LM-09173-78

WASHER, 3/8

$

$

Not available

39

Simplicity LM-81910-22

COLLAR, Set

$

$

Not available

40

Simplicity LM-01620-24

SHAFT ASSEMBLY, Clutch

$

$

Not available

41

Simplicity LM-01563-03

GUIDE ASSEMBLY, Rod

$

$

Not available

42

Simplicity LM-01570-41

SPRING, Compression

$

$

Not available

43

Simplicity LM-16080-91

ROD, Clutch

$

$

Not available

44

Simplicity LM-09174-00

CAPSCREW, Hex Head, 3.8-16 x 1-1/4

$

$

Not available

45

Simplicity LM-01067-16

PULLEY, Idler

$

$

Not available

46

Simplicity LM-09176-42

WASHER

$

$

Not available

47

Simplicity LM-09287-21

SETSCREW, Square Head, 15/16-18 x 1/2

$

$

Not available

48

Simplicity LM-01050-50

WASHER

$

$

Not available

49

Simplicity LM-01540-65

COLLAR, Set

$

$

Not available

50

Simplicity LM-01620-98

PAD, Pedal

$

$

Not available

51

Simplicity LM-01561-11

PULLEY, Engine, Large

$

$

Not available

52

Simplicity LM-01630-10

PULLEY, Engine, Small (T-8)

$

$

Not available

52

Simplicity LM-01620-49

PULLEY, Engine, Small (T-7)

$

$

Not available

53

Simplicity LM-16067-21

SHIELD, Heat

$

$

Not available

54

Simplicity LM-16037-83

SETSCREW, Hex Socket (T-8)

$

$

Not available

54

Simplicity LM-07135-01

SETSCREW, Hex Socket (T-7)

$

$

Not available

55

Simplicity LM-09051-00

KEY SQUARE

$

$

Not available

56

ENGINE, 7HP (T-7)

$

$

Not available

56

ENGINE, 8HP (T-8)

$

$

Not available

57

Simplicity LM-808110-35

BELT, Stop

$

$

Not available

58

Simplicity LM-01563-31

BELT, Stop

$

$

Not available

59

Simplicity LM-01650-67

DRUM, Brake

$

$

Not available

60

Simplicity LM-07135-01

SETSCREW, 5/16-18 x 1/2 Socket Head

$

$

Not available

61

Simplicity LM-09286-37

KEY

$

$

Not available

62

Simplicity LM-07150-79

SCREW, Taptite Hex, 3/8-16

$

$

Not available

63

Simplicity LM-01708-44

SCREW, Hex

$

$

Not available

64

Simplicity LM-16082-15

WHEEL & TIRE, Rear (T-7)

$

$

Not available

64

Simplicity LM-16081-30

WHEEL & TIRE, Rear (T-8)

$

$

Not available

65

Simplicity LM-01313-42

PLUG, Button

$

$

Not available
