T-8 (1690056) - Homelite Lawn Tractor, 8hp Electrical Group (3857I06) Parts Diagram

Lawn Tractor, 8hp

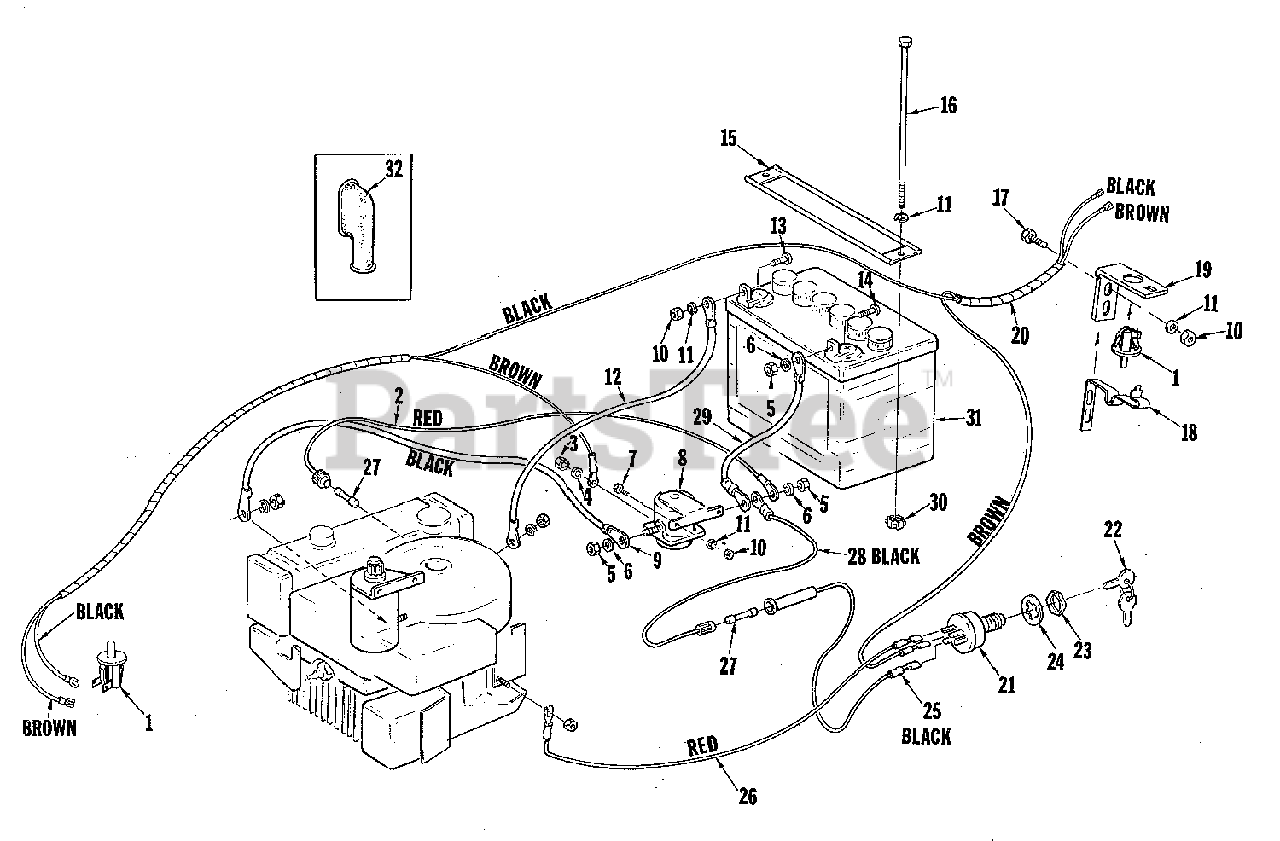

Electrical Group (3857I06) Parts Diagram

  • Title

1

Simplicity LM-01746-95

SWITCH, Interlock w/Two Nuts

$

$

Not available

2

Simplicity LM-16068-43

LEAD, Fuse Holder Engine to Solinoid

$

$

Not available

3

Simplicity LM-09174-15

NUT, Hex, 10-32

$

$

Not available

4

Simplicity LM-09227-11

LOCKWASHER, #10

$

$

Not available

5

Simplicity LM-09173-72

NUT, Hex Fin, 5/16

$

$

Not available

6

Simplicity LM-09173-56

LOCKWASHER, 5/16

$

$

Not available

7

Simplicity LM-09082-95

CAPSCREW, 1/4-20 x 1/2

$

$

Not available

8

Simplicity LM-01222-16

SOLINOID

$

$

Not available

9

Simplicity LM-16031-95

CABLE, Solinoid to Starter

$

$

Not available

10

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

11

Simplicity LM-09169-64

LOCKWASHER, 1/4

$

$

Not available

12

Simplicity LM-16036-18

CABLE, Negative Battery Terminal to Engine Ground

$

$

Not available

13

Simplicity LM-09169-44

BOLT, Round Head, 1/4-20 x 3/4

$

$

Not available

14

Simplicity LM-09194-14

BOLT, Round Head, 5/16-18 x 3/4

$

$

Not available

15

Simplicity LM-16063-74

HOLDOWN, Battery

$

$

Not available

16

Simplicity LM-09286-34

CAPSCREW, Hex Head, 1/4-20 x 7

$

$

Not available

17

Simplicity LM-09169-44

CAPSCREW, 1/4-20 x 3/4

$

$

Not available

18

Simplicity LM-01746-19

CLIP, Spring

$

$

Not available

19

Simplicity LM-01747-00

BRACKET

$

$

Not available

20

Simplicity LM-16080-74

HARNESS ASSEMBLY, Interlock

$

$

Not available

21

Simplicity LM-01222-01

SWITCH, Key

$

$

Not available

22

Simplicity LM-01222-03

KEY & RING

$

$

Not available

23

Simplicity LM-01222-35

NUT, Hex

$

$

Not available

24

Simplicity LM-09286-36

LOCKWASHER, Intermediate Tooth

$

$

Not available

25

Simplicity LM-16068-32

LEAD, Key Switch to Fuse Holder

$

$

Not available

26

Simplicity LM-16068-47

LEAD, Magneto to Key Switch Ground

$

$

Not available

27

Simplicity LM-01724-10

FUSE, 7-1/2 Amp

$

$

Not available

28

Simplicity LM-16068-38

LEAD, Fuse Holder to Solinoid

$

$

Not available

29

Simplicity LM-16068-26

CABLE, Solinoid to Positive Battery Terminal

$

$

Not available

30

Simplicity LM-09260-22

RETAINER, Nut

$

$

Not available

31

Simplicity LM-16073-59

BATTERY, 32 Amp Hour (T-8)

$

$

Not available

31

Simplicity LM-16073-58

BATTERY, 24 Amp Hour (T-7)

$

$

Not available

32

Simplicity LM-01220-23

COVER, Terminal

$

$

Not available

33

Simplicity LM-07180-34

NUT, Flange Lock, 1/4-20

$

$

Not available
