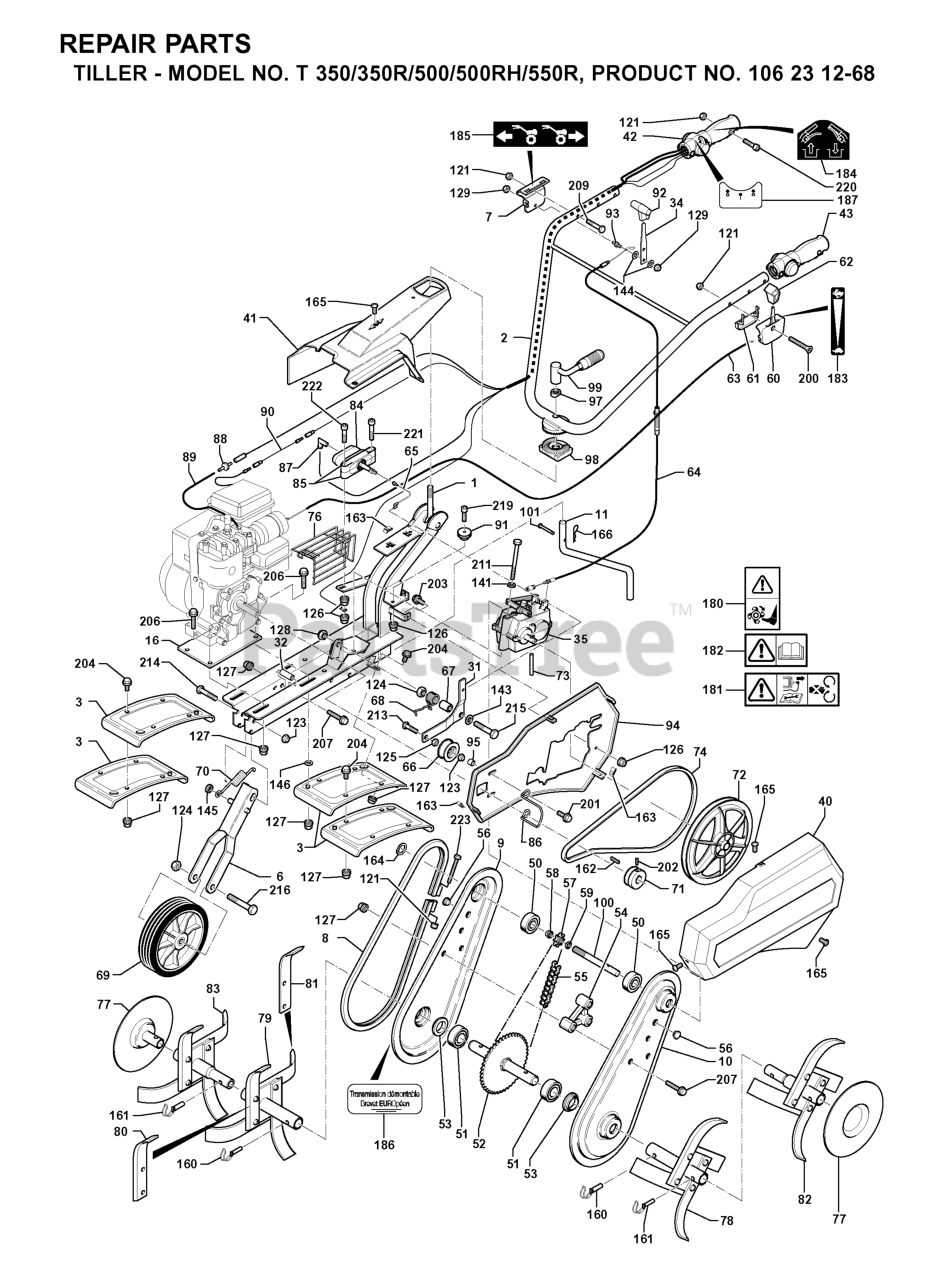

T 550 R - Husqvarna Tiller (2000-03) PRODUCT COMPLETE Parts Diagram

Tiller

PRODUCT COMPLETE Parts Diagram

  • Title

519651160

Husqvarna 519651160

PROTECTOR

$

$

Not available

85

Husqvarna 519653064

NEEDS DESCRIPTION

$

$

Currently unavailable

206

Husqvarna 519653413

SCREW

$

$

Not available

221

Husqvarna 519653464

SCREW

$

$

Not available

519653393

Husqvarna 519653393

NEEDS DESCRIPTION

$

$

Currently unavailable

519653102

Husqvarna 519653102

CABLE

$

$

Not available

1

Husqvarna 519653405

CHASSIS

$

$

Not available

183

Husqvarna 519653101

DECAL

$

$

Not available

129

Husqvarna 519653411

NUT

$

$

Not available

126

Husqvarna 519653432

NUT

$

$

Not available

69

Husqvarna 519653000

WHEEL
(Superseded to 519653259)

$

$

Not available

531008213

Husqvarna 531008213

NEEDS DESCRIPTION

$

$

Not available

41

Husqvarna 531008224

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 519653406

HANDLE

$

$

Not available

531008230

Husqvarna 531008230

NEEDS DESCRIPTION

$

$

Currently unavailable

98

Husqvarna 519653415

SPACER

$

$

Not available

141

Husqvarna 519653450

WASHER

$

$

Not available

67

Husqvarna 519653451

ROD

$

$

Not available

89

Husqvarna 519653416

HOSE

$

$

Not available

122

Husqvarna 519006200

NUT

$

$

Not available

16

Husqvarna 531008223

NEEDS DESCRIPTION

$

$

Currently unavailable

80

Husqvarna 519653447

BLADE

$

$

Not available

125

Husqvarna 519653456

NUT

$

$

Not available

55

Husqvarna 519653009

DRIVE CHAIN

$

$

Not available

200

Husqvarna 519653461

SCREW

$

$

Not available

223

Husqvarna 519653010

BOLT

$

$

Not available

78

Husqvarna 519653028

TINE

$

$

Not available

42

Husqvarna 519653420

HANDLE

$

$

Not available

163

Husqvarna 519653425

CLIP

$

$

Not available

9

Husqvarna 519653041

HOUSING

$

$

Not available

162

Husqvarna 519653021

SCREW

$

$

Not available

123

Husqvarna 519653458

NUT

$

$

Not available

220

Husqvarna 519653026

BOLT

$

$

Not available

56

Husqvarna 519653391

NEEDS DESCRIPTION

$

$

Not available

31

Husqvarna 519653407

ARM

Note: Assy including: 31,124, 67, 143, 215, 213, 125, 66, 123

$

$

Not available

519653419

Husqvarna 519653419

CABLE

$

$

Not available

7

Husqvarna 531008222

NEEDS DESCRIPTION

$

$

Currently unavailable

215

Husqvarna 519653454

SCREW

$

$

Not available

63

Husqvarna 519004168

REPL BY 519 00 64-26
(Superseded to 519644361)

$

$

Not available

166

Husqvarna 519651220

COTTER PIN

$

$

Not available

145

Husqvarna 519653462

NEEDS DESCRIPTION

$

$

Not available

182

Husqvarna 519653272

NEEDS DESCRIPTION

$

$

Currently unavailable

82

Husqvarna 531008214

NEEDS DESCRIPTION

$

$

Not available

91

Husqvarna 519653052

ROLLER

$

$

Not available

219

Husqvarna 519653410

SCREW

$

$

Not available

201

Husqvarna 519653412

SCREW

$

$

Not available

74

Husqvarna 519653059

BELT

$

$

Not available

8

Husqvarna 519653043

RING

$

$

Not available

81

Husqvarna 519653448

BLADE

$

$

Not available

531008211

Husqvarna 531008211

NEEDS DESCRIPTION

$

$

Not available

187

Husqvarna 519653103

DECAL

$

$

Not available

128

Husqvarna 531008221

NEEDS DESCRIPTION

$

$

Not available

6

Husqvarna 519653460

SUPPORT

$

$

Not available

66

Husqvarna 519653457

PULLEY

$

$

Not available

127

Husqvarna 519653430

NUT

$

$

Not available

32

Husqvarna 519653424

SPACER

$

$

Not available

185

Husqvarna 519653084

LABEL

$

$

Not available

181

Husqvarna 519653271

NEEDS DESCRIPTION

$

$

Currently unavailable

161

Husqvarna 519653360

PIN

$

$

Not available

531008234

Husqvarna 531008234

NEEDS DESCRIPTION

$

$

Currently unavailable

58

Husqvarna 519653095

SPACER

$

$

Not available

531008218

Husqvarna 531008218

NEEDS DESCRIPTION

$

$

Currently unavailable

531008231

Husqvarna 531008231

NEEDS DESCRIPTION

$

$

Currently unavailable

101

Husqvarna 519651210

PIN

$

$

Not available

160

Husqvarna 519653093

PIN

$

$

Not available

203

Husqvarna 519653435

SCREW

$

$

Not available

211

Husqvarna 519653045

SCREW

$

$

Not available

34

Husqvarna 519653070

ARM

$

$

Not available

531008226

Husqvarna 531008226

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 519653078

TAIL-SKID

$

$

Not available

65

Husqvarna 519653409

WIRE

$

$

Not available

35

Husqvarna 519653092

GEAR

$

$

Not available

165

Husqvarna 519653426

SCREW

$

$

Not available

87

Husqvarna 519653427

CONNECTION

$

$

Not available

70

Husqvarna 519650260

SPRING

$

$

Not available

180

Husqvarna 519653096

DECAL

$

$

Not available

531008238

Husqvarna 531008238

NEEDS DESCRIPTION

$

$

Currently unavailable

86

Husqvarna 531008217

NEEDS DESCRIPTION

$

$

Currently unavailable

146

Husqvarna 519653097

WASHER

$

$

Not available

54

Husqvarna 519653006

BRACKET

$

$

Not available

52

Husqvarna 519653007

GEAR

$

$

Not available

97

Husqvarna 519653414

SPACER

$

$

Not available

531008233

Husqvarna 531008233

NEEDS DESCRIPTION

$

$

Currently unavailable

121

Husqvarna 732261601

Blocking nut M 6 Z

$

$

Not available

68

Husqvarna 519653090

SPRING

$

$

Not available

143

Husqvarna 519653453

WASHER

$

$

Not available

213

Husqvarna 519653455

SCREW

$

$

Not available

62

Husqvarna 516836515

KNOB

$

$

Not available

83

Husqvarna 531008215

NEEDS DESCRIPTION

$

$

Not available

94

Husqvarna 531008235

NEEDS DESCRIPTION

$

$

Currently unavailable

519653201

Husqvarna 519653201

NEEDS DESCRIPTION

$

$

Currently unavailable

531008232

Husqvarna 531008232

NEEDS DESCRIPTION

$

$

Currently unavailable

202

Husqvarna 519653020

SCREW

$

$

Not available

10

Husqvarna 519653042

HOUSING

$

$

Not available

531008229

Husqvarna 531008229

NEEDS DESCRIPTION

$

$

Currently unavailable

72

Husqvarna 519653060

PULLEY

$

$

Not available

84

Husqvarna 519653408

CONTROL

$

$

Not available

207

Husqvarna 519653463

NEEDS DESCRIPTION

$

$

Not available

3

Husqvarna 519650281

GUARD

$

$

Not available

531008228

Husqvarna 531008228

NEEDS DESCRIPTION

$

$

Currently unavailable

71

Husqvarna 531008227

NEEDS DESCRIPTION

$

$

Currently unavailable

184

Husqvarna 519653085

LABEL

$

$

Not available

209

Husqvarna 519653437

SCREW

$

$

Not available

519653081

Husqvarna 519653081

NEEDS DESCRIPTION

$

$

Currently unavailable

57

Husqvarna 519653057

PINION

$

$

Not available

76

Husqvarna 519006471

GRATE

$

$

Not available

79

Husqvarna 519653029

TINE

$

$

Not available

53

Husqvarna 519653072

SPACER SLEEVE

$

$

Not available

59

Husqvarna 519653094

SPACER

$

$

Not available

73

Husqvarna 519653067

SHAFT

$

$

Not available

95

Husqvarna 531008216

NEEDS DESCRIPTION

$

$

Not available

519653058

Husqvarna 519653058

BELT

$

$

Not available

77

Husqvarna 519653362

NEEDS DESCRIPTION

$

$

Not available

60

Husqvarna 519653459

THROTTLE TRIGGER

$

$

Not available

124

Husqvarna 725255051

SCREW NLA

$4.49

$

Usually ships in 3-10 days

0

43

Husqvarna 519653051

HANDLE

$

$

Not available

100

Husqvarna 519653065

SHAFT

$

$

Not available

88

Husqvarna 519653100

VALVE

$

$

Not available

92

Husqvarna 519653091

HANDLE

$

$

Not available

93

Husqvarna 519653066

SHAFT

$

$

Not available

51

Husqvarna 519653053

BEARING

$

$

Not available

40

Husqvarna 519653423

COVER

$

$

Not available

99

Husqvarna 531008237

NEEDS DESCRIPTION

$

$

Currently unavailable

186

Husqvarna 519653044

LABEL

$

$

Not available

90

Husqvarna 519653418

CABLE

$

$

Not available

144

Husqvarna 519653049

WASHER

$

$

Not available

216

Husqvarna 519653131

NEEDS DESCRIPTION

$

$

Not available

204

Husqvarna 531008202

NEEDS DESCRIPTION

$

$

Not available

61

Husqvarna 519649471

THROTTLE CONTROL

$

$

Not available

531008212

Husqvarna 531008212

NEEDS DESCRIPTION

$

$

Currently unavailable

531008225

Husqvarna 531008225

NEEDS DESCRIPTION

$

$

Currently unavailable

164

Husqvarna 519653466

RETAINING RING

$

$

Not available

50

Husqvarna 519002631

BEARING

$

$

Not available

214

Husqvarna 519653046

SCREW

$

$

Not available

222

Husqvarna 519653047

SCREW

$

$

Not available

64

Husqvarna 519653055

CABLE

$

$

Not available
