T 540 XP II - Husqvarna Chainsaw CARBURETOR Parts Diagram

Chainsaw

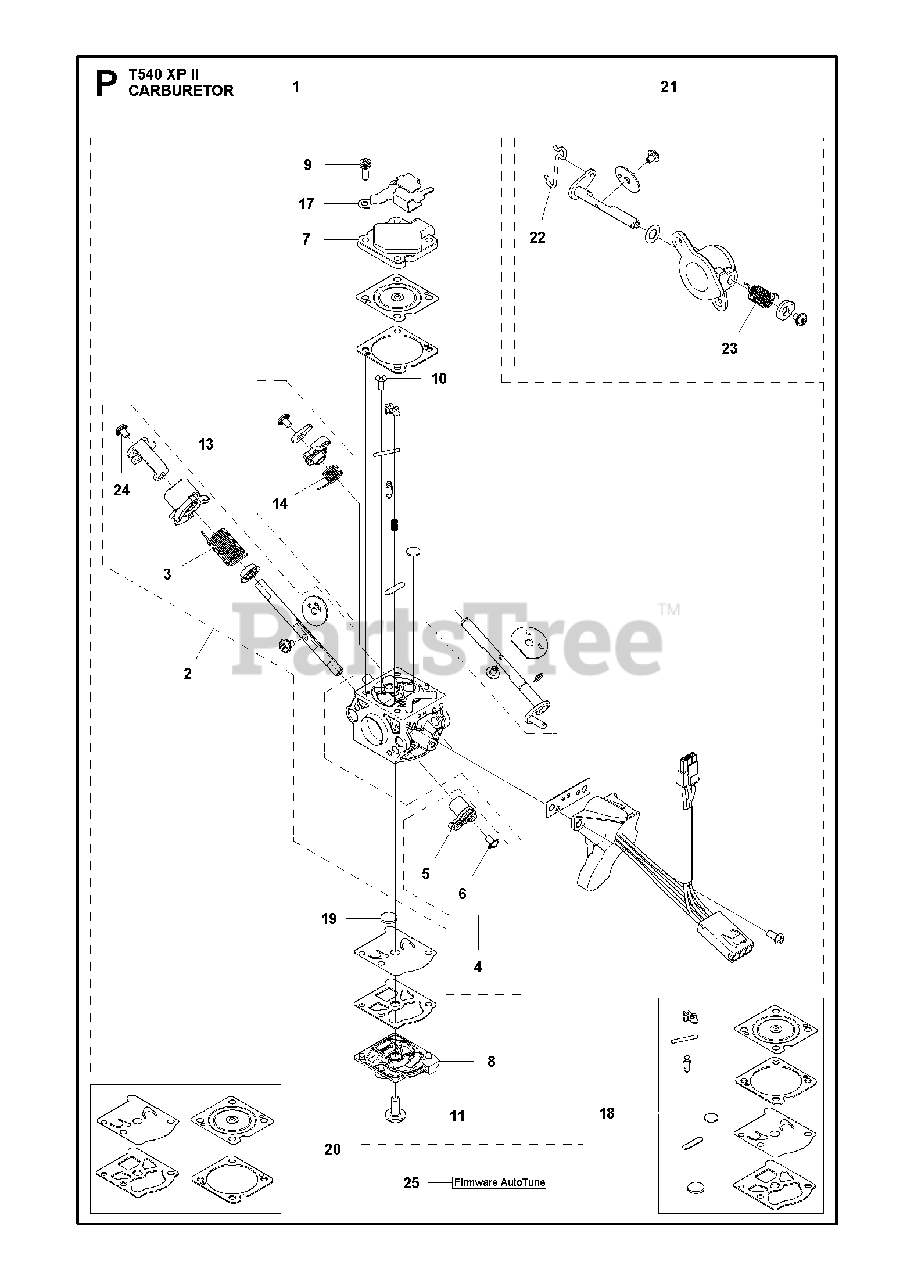

CARBURETOR Parts Diagram

  • Title
1

Husqvarna 586341401

CARBURETTOR ASSY
(Superseded to 586341402)

Note: Walbro AT-11

$170.99

$

Usually ships in 3-10 days

0

2

Husqvarna 577954901

KIT

Note: . 1

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574359401

SPRING

Note: . 1 2

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 577753401

THROTTLE LEVER ASSY

Note: . 1 2

$

$

Not available

5

Husqvarna 577219201

THROTTLE LEVER ASSY

Note: . 1 2 4

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544111501

SCREW

Note: . 1 2 4

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574358101

COVER

Note: . 1

$7.82

$

Usually ships in 3-10 days

0

8

Husqvarna 576666801

PUMP COVER

Note: . 1

$

$

Not available

9

Husqvarna 537003101

SCREW

Note: . 1

$9.49

$

In Stock, only 3 left!

0

10

Husqvarna 502847101

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574359001

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

13

Husqvarna 577955001

KIT

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

14

Husqvarna 574359301

SPRING

Note: . 1 13

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 588093801

BRACKET CONTACT

Note: . 1

$

$

Not available

18

Husqvarna 580699901

REPAIR KIT

Note: Walbro K2-AT Repair kit

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 501666101

FUEL INLET SCREEN

Note: . 1 18

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 580700001

GASKET KIT

Note: Walbro D2-AT Set of gaskets

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 574437601

THROTTLE ASSY

$22.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574521101

LINK

Note: . 21

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 576670201

SPRING

Note: . 21

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 544111501

SCREW

Note: . 1 2

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna TBD

Note: Download from your local support site

$

$

Not available
