T 540 XP - Husqvarna Chainsaw CYLINDER PISTON Parts Diagram

Chainsaw

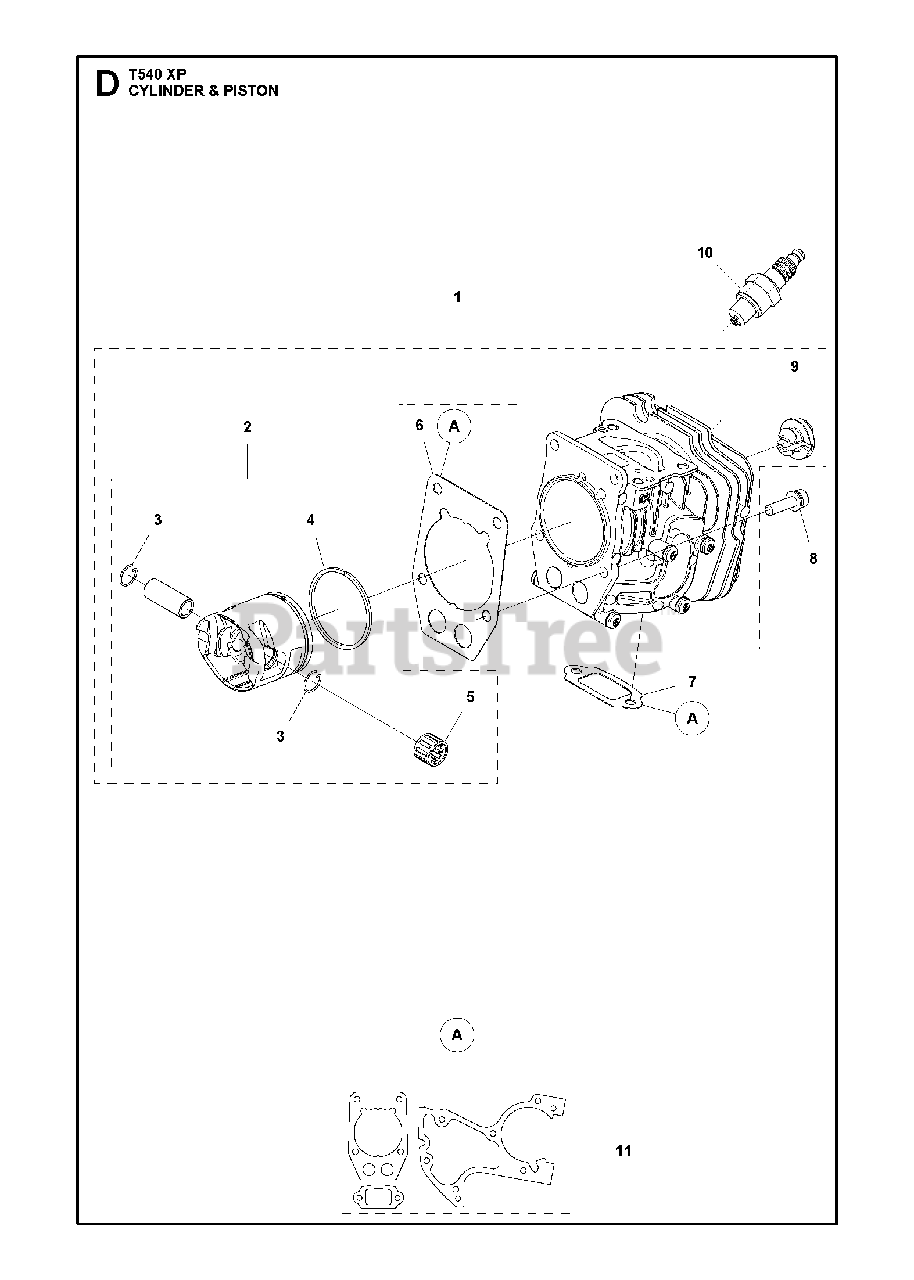

CYLINDER PISTON Parts Diagram

  • Title

1

Husqvarna 576676201

CYLINDER-PISTON ASSY
(Superseded to 576676202)

Note: up to 141899999

$

$

Not available

1

Husqvarna 576676202

CYLINDER ASSY

Note: from 141900001

$

$

Not available

2

Husqvarna 586446202

PISTON ASSY

Note: . 1

$

$

Not available

3

Husqvarna 737441000

LOCKING RING

Note: . 1 2

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 577960501

PISTON RING

Note: . 1 2

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503255501

NEEDLE BEARING

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505457001

GASKET

Note: . 11

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 505408301

GASKET

Note: . 11

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 577401202

SCREW ITXSCM

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 576355902

SUPPORT

Note: s /n from 20141900001-. 1

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 576355901

SUPPORT

Note: s /n up to-20141899999

$

$

Not available

10

Husqvarna 531008615

CMR6H NGK SPARK PLUG

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 576666101

GASKET KIT

Note: A Set of gaskets

$9.49

$

Usually ships in 3-10 days

0
