T 540 XP - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

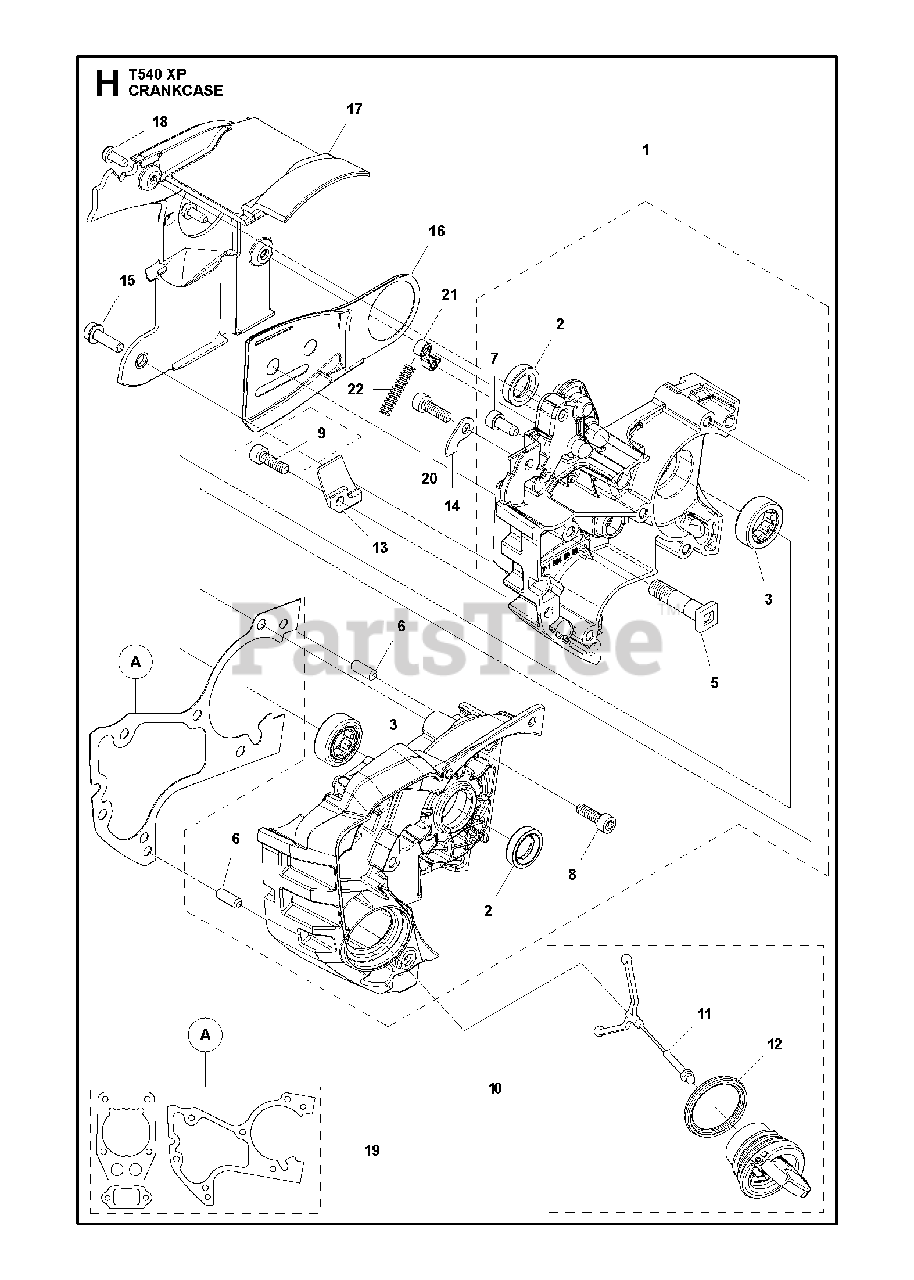

CRANKCASE Parts Diagram

  • Title

1

Husqvarna 574618001

CRANKCASE ASSY SPARE PART
(Superseded to 574618002)

$148.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505394001

RADIAL SEAL
(Superseded to 588139701)

Note: . 1

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 505394701

ROLLER BEARING

Note: . 1

$20.99

$

In Stock, only 2 left!

0

5

Husqvarna 505217301

BAR BOLT

Note: . 1

$5.99

$

In Stock, only 1 left!

0

6

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525764601

SCREW ITXSCT

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 525824901

SCREW ITXSCM

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 505574116

SCREW ITXSCM

Note: . 1

$4.99

$

In Stock, only 3 left!

0

10

Husqvarna 577878601

TANK CAP ASSY
(Superseded to 577878603)

$13.99

$

In Stock, Qty 5

0

11

Husqvarna 503578901

TANK LOCK

Note: . 10

$9.99

$

In Stock, Qty 15

0

12

Husqvarna 505411001

SEALING
(Superseded to 589241301)

Note: . 10

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505288501

CHAIN CATCHER

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 580250401

WASHER

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 525755101

SCREW

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 505521401

CHAIN GUIDE PLATE

$5.99

$

In Stock, only 1 left!

0

17

Husqvarna 516034501

COVER LID ASSY
(Superseded to 516034502)

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 526222001

SCREW CITXPANT

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 576666101

GASKET KIT

Note: A Set of gaskets

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 505574116

SCREW ITXSCM

$4.99

$

In Stock, only 3 left!

0

21

Husqvarna 505201201

CATCH

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, only 4 left!

0
