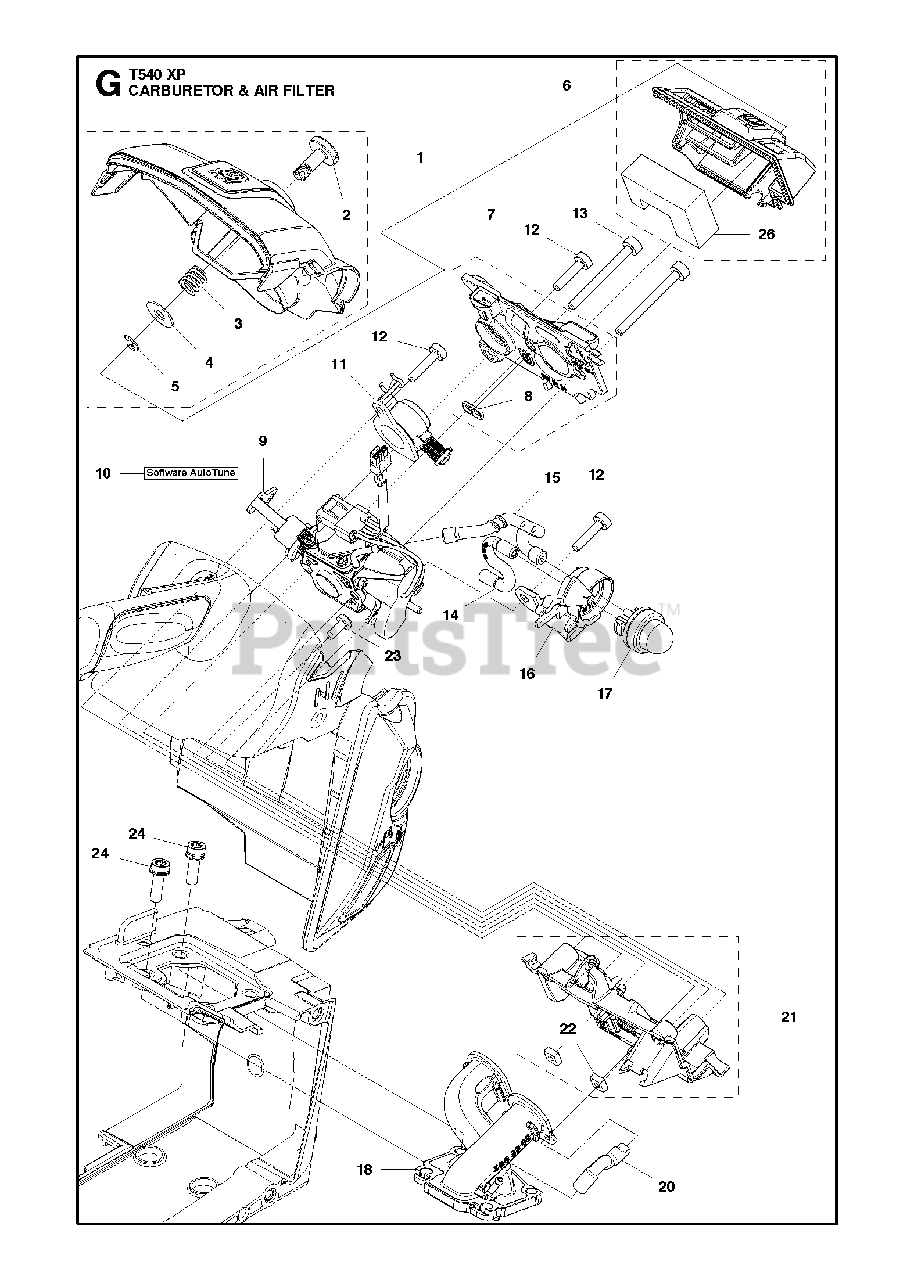

T 540 XP - Husqvarna Chainsaw CARBURETOR AIR FILTER Parts Diagram

Chainsaw

CARBURETOR AIR FILTER Parts Diagram

  • Title

1

Husqvarna 576353601

FILTER COVER ASSY

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 575415401

KNOB

Note: . 1

$

$

Not available

3

Husqvarna 575487601

SPRING

Note: . 1

$

$

Not available

4

Husqvarna 576049801

WASHER

Note: . 1

$

$

Not available

5

Husqvarna 735310820

E-RING 4

Note: . 1

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 574453104

AIR FILTER ASSY

Note: 80my

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574453103

AIR FILTER

Note: 52my

$17.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506948402

FILTER HOLDER ASSY

$28.99

$

Usually ships in 3-10 days

0

8

Husqvarna 525619201

SEALING

Note: . 7

$3.49

$

In Stock, Qty 9

0

9

Husqvarna 579193001

CARBURETTOR

Note: Walbro AT-2

$205.99

$

Usually ships in 3-10 days

0

10

Husqvarna TBD

Note: Download from your local support site

$

$

Not available

11

Husqvarna 574437601

THROTTLE ASSY

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 525824801

SCREW ITXSCT

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 574353502

SCREW ITXSCM

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 523056801

FUEL HOSE

$5.99

$

In Stock, only 2 left!

0

15

Husqvarna 516003301

SUCTION HOSE

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574366401

CHOKE CONTROL ASSY

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503936601

AIR PURGE BUBBLE

$21.99

$

Usually ships in 3-10 days

0

18

Husqvarna 525396802

INLET PIPE ASSY

$43.99

$

Usually ships in 3-10 days

0

20

Husqvarna 577406401

HOSE
(Superseded to 577406402)

$5.99

$

In Stock, only 1 left!

0

21

Husqvarna 522890301

CARBURETTOR BRACKET

$13.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574620401

NUT SQUARE

Note: . 21

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 526222001

SCREW CITXPANT

$3.49

$

In Stock, only 1 left!

0

24

Husqvarna 577401202

SCREW ITXSCM

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 574444502

FOAMING FILTER

Note: . 6

$6.99

$

In Stock, Qty 5

0
