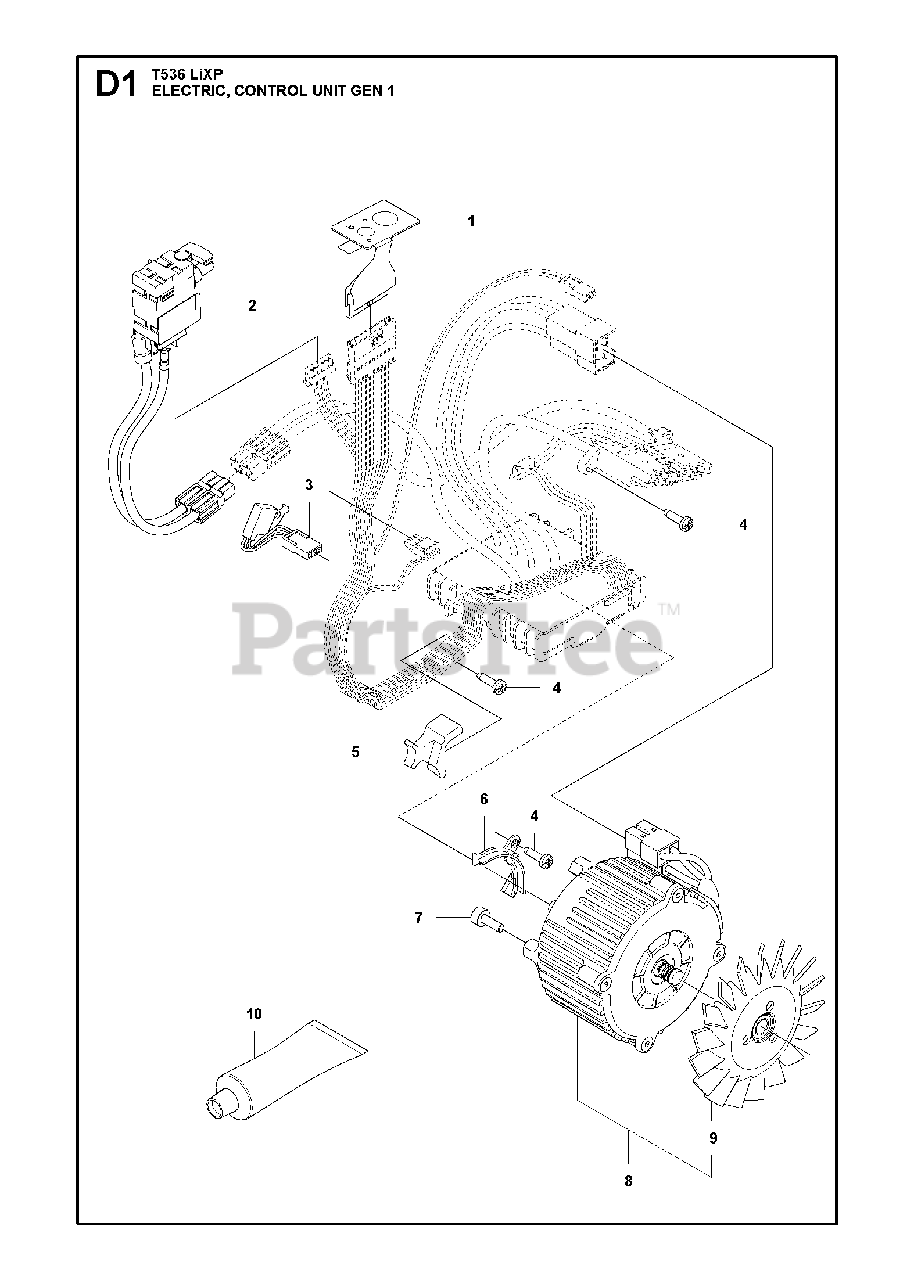

T 536 LiXP - Husqvarna Chainsaw ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 585855301

KEYPAD
(Superseded to 585855302)

$

$

Not available

2

Husqvarna 577033301

WIRING ASSY

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 577827701

WIRING ASSY

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 579597901

BRACKET

$

$

Not available

6

Husqvarna 577585201

COVER

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503202512

SCREW

$5.99

$

In Stock, Qty 11

0

8

Husqvarna 577315802

MOTOR ASSY BLDC D70

Note: Complete with fan

$276.99

$

Usually ships in 3-10 days

0

9

Husqvarna 581300901

FAN

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 588176401

GREASE TUBE Q8 RUYSDAEL WR2

Note: For application instruction see SB-1500022

$42.99

$

Usually ships in 3-10 days

0
