T 536 LiXP - Husqvarna Chainsaw ELECTRICAL Parts Diagram

Chainsaw

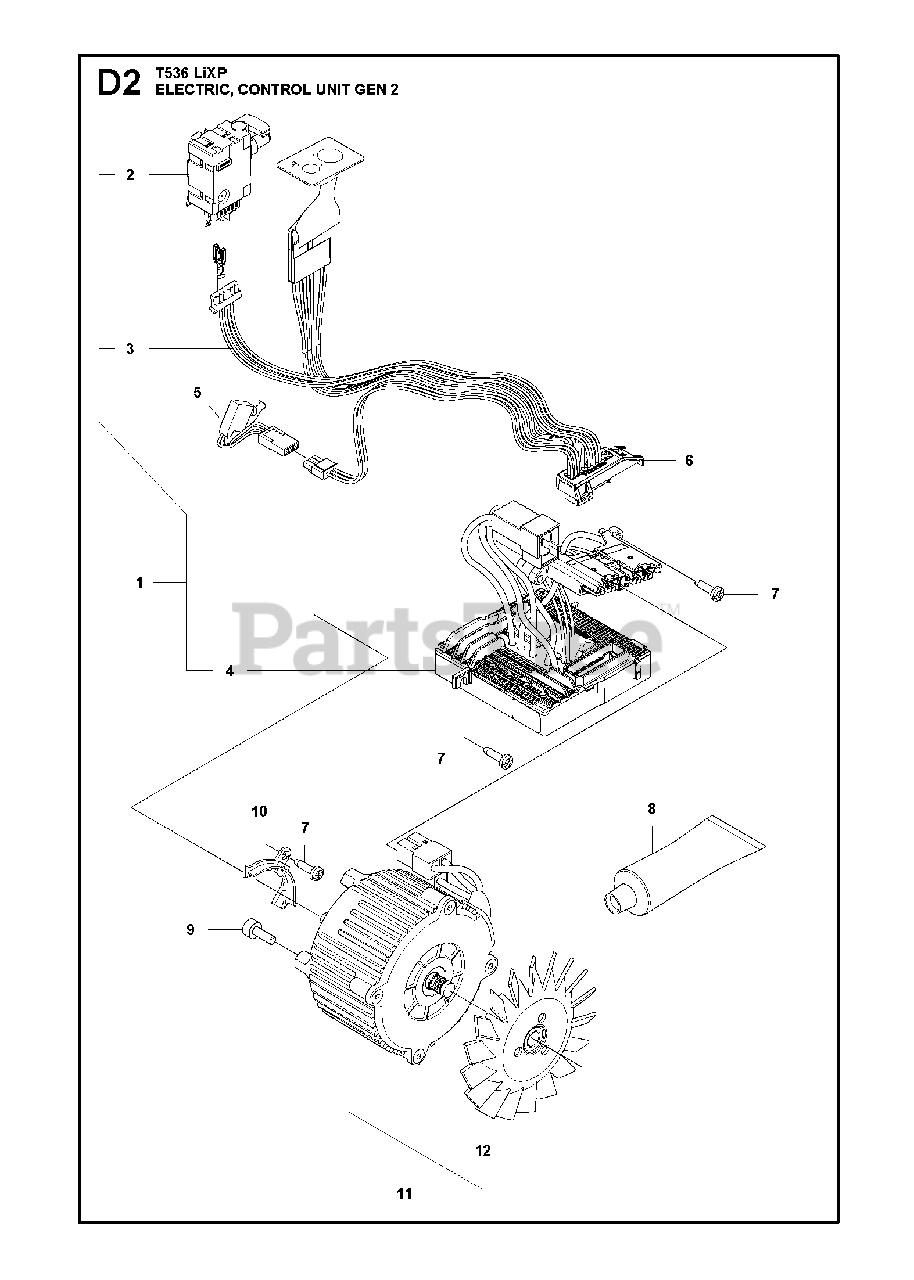

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 588211901

CONTROL UNIT

$250.99

$

Usually ships in 3-10 days

0

2

Husqvarna 578326901

TRIGGER SWITCH

$37.99

$

In Stock, only 2 left!

0

3

Husqvarna 585345301

WIRING ASSY SIGNAL TOPHANDLE
(Superseded to 593896101)

$102.99

$

Usually ships in 3-10 days

0

4

Husqvarna 586265201

CONTROL UNIT

Note: Replacing 578 37 07-01 For application see SB-1500022

$193.99

$

Usually ships in 3-10 days

0

5

Husqvarna 577827701

WIRING ASSY

$21.99

$

Usually ships in 3-10 days

0

6

Husqvarna 587327201

BRACKET

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 588176401

GREASE TUBE Q8 RUYSDAEL WR2

Note: For application instruction see SB-1500022

$42.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503202512

SCREW

$5.99

$

In Stock, Qty 11

0

10

Husqvarna 577585201

COVER

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 577315802

MOTOR ASSY BLDC D70

Note: Complete with fan

$276.99

$

Usually ships in 3-10 days

0

12

Husqvarna 581300901

FAN

$7.99

$

Usually ships in 3-10 days

0
