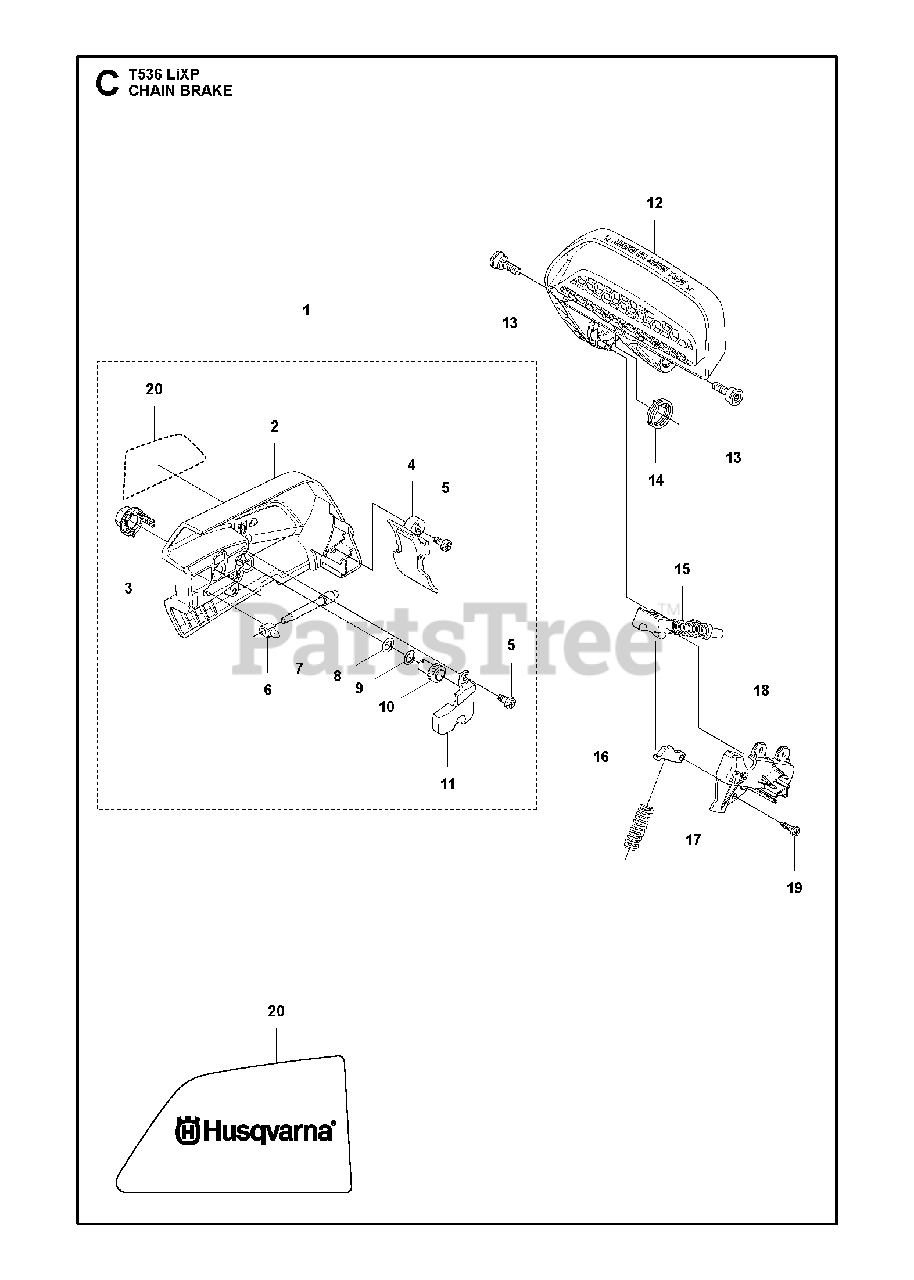

T 536 LiXP - Husqvarna Chainsaw CHAIN BRAKE Parts Diagram

Chainsaw

CHAIN BRAKE Parts Diagram

  • Title

1

Husqvarna 576905601

CLUTCH COVER ASSY

$57.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576905701

CLUTCH COVER

Note: . 1

$25.99

$

In Stock, only 1 left!

0

3

Husqvarna 505197301

NUT RETAINER ASSY

Note: . 1

$7.99

$

In Stock, only 2 left!

0

4

Husqvarna 577722101

CHIP GUARD

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 503217072

SCREW

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 501454102

PAWL
(Superseded to 588850301)

Note: . 1

$5.99

$

In Stock, only 2 left!

0

7

Husqvarna 537397001

SCREW

Note: . 1

$18.99

$

In Stock, Qty 5

0

8

Husqvarna 740480702

O-RING

Note: . 1

$7.49

$

In Stock, only 4 left!

0

9

Husqvarna 503230063

WASHER

Note: . 1

$6.49

$

In Stock, only 3 left!

0

10

Husqvarna 537079402

WORM WHEEL

Note: . 1

$13.99

$

In Stock, only 2 left!

0

11

Husqvarna 505214501

COVER LID

Note: . 1

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 576903801

HAND GUARD

$22.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503893001

SCREW

$5.99

$

In Stock, only 2 left!

0

14

Husqvarna 577649801

TORSION SPRING

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 577549501

SHAFT ASSY

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 577272001

CATCH

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 576904601

SPRING

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 577365601

BRACKET

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 503212813

SCREW

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 578228901

DECAL

Note: . 1

$4.99

$

Usually ships in 3-10 days

0
