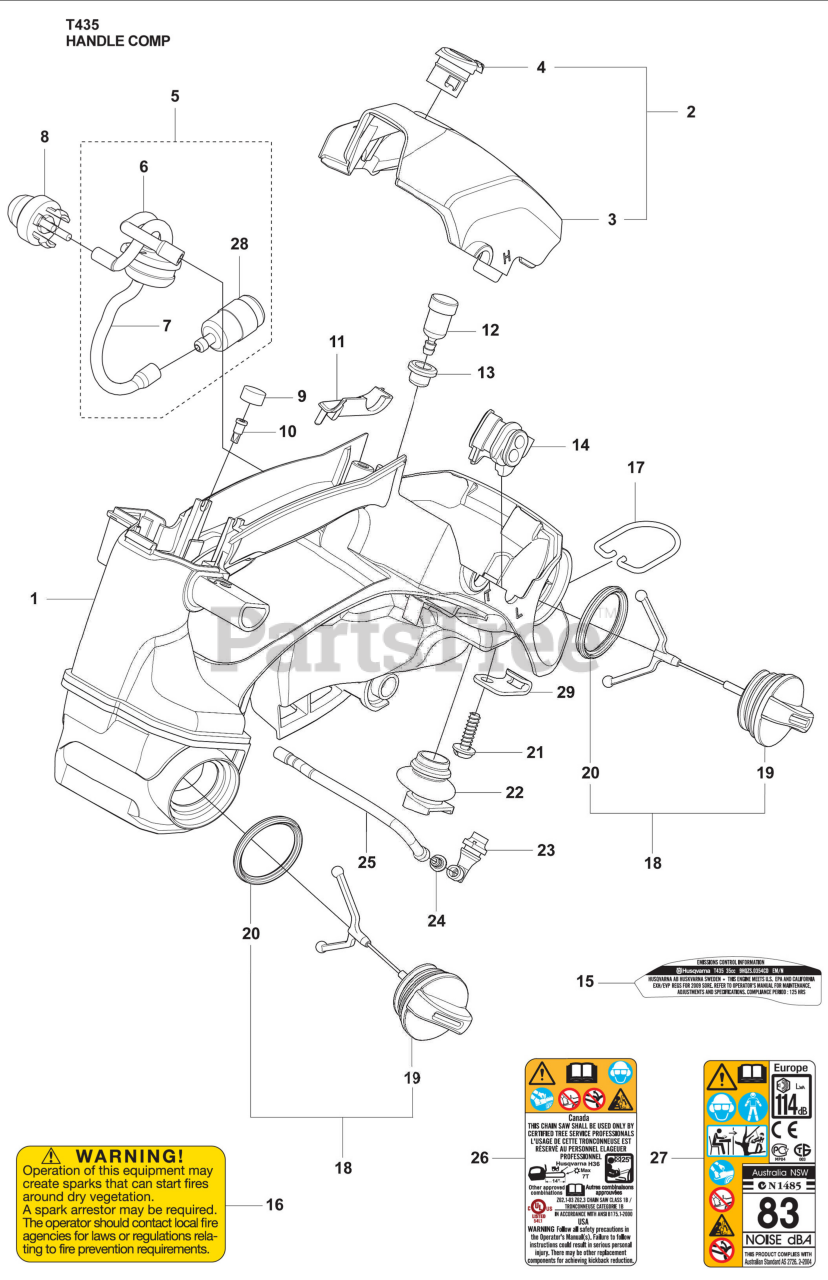

T 435 - Husqvarna Chainsaw (2009-02) Handle Compl, Fuel Tank Parts Diagram

Chainsaw

Handle Compl, Fuel Tank Parts Diagram

  • Title

1

Husqvarna 522016401

Housing
(Superseded to 587495502)

$93.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522017701

Filter cover compl.

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522017801

Filter cover

$27.99

$

Usually ships in 3-10 days

0

4

Husqvarna 522017901

Knob

$11.99

$

In Stock, only 1 left!

0

5

Husqvarna 522647601

Fuel hose assy
(Superseded to 579519201)

$33.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522647701

Grommet
(Superseded to 522647601)

$33.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522639501

Fuel hose
(Superseded to 522647601)

$33.99

$

Usually ships in 3-10 days

0

8

Husqvarna 516972801

Purge
(Superseded to 513789301)

$31.99

$

In Stock, only 3 left!

0

9

Husqvarna 516948101

Seal
(Superseded to 574007401)

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 516961901

Valve

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 522017601

Bracket

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 516965201

Breather
(Superseded to 574007901)

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 520996101

Grommet
(Superseded to 505045401)

$7.49

$

In Stock, Qty 8

0

14

Husqvarna 522008801

Guide, carb
(Superseded to 579606501)

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 522635501

Decal, ECI

$

$

Currently unavailable

16

Husqvarna 523071401

Decal, warning

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 522019401

Eyelet

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 522018201

Fuel cap compl.
(Superseded to 574510401)

$24.99

$

Usually ships in 3-10 days

0

19

Husqvarna 522018301

Fuel cap
(Superseded to 574510401)

$24.99

$

Usually ships in 3-10 days

0

20

Husqvarna 522018401

Seal
(Superseded to 574510601)

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 521518001

Screw

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 522647101

Pipe

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 522647801

Hose connector
(Superseded to 522647802)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 516950301

Joint

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 522639401

Hose
(Superseded to 595526906)

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 522635301

Decal, warning US-CAN

$6.49

$

Usually ships in 3-10 days

0

27

Decal, warning EU-ROW

$

$

Not available

28

Husqvarna 503443201

Fuel filter
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

29

Husqvarna 522019301

Plate

$8.99

$

Usually ships in 3-10 days

0
