T 350 - Shindaiwa String Trimmer Carburetor Parts Diagram

String Trimmer

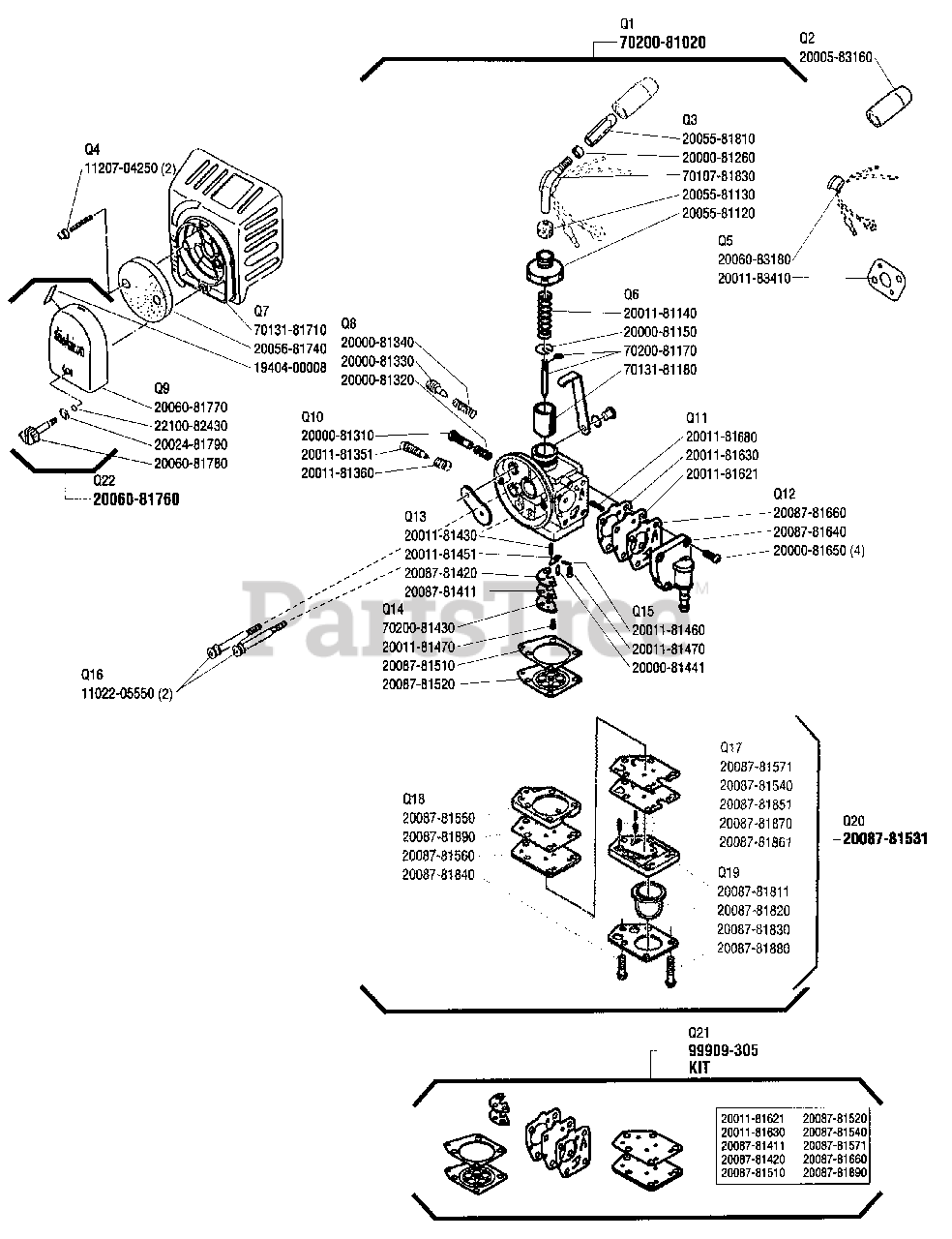

Carburetor Parts Diagram

  • Title

Q1-70200-81020

Echo 70200-81020

CARBURETOR
(Superseded to A021002470)

$89.99

$

In Stock, Qty 5

0

Q2-20005-83160

Echo 20005-83160

CAP, DUST
(Superseded to A246000020)

$0.99

$

In Stock, Qty 18

0

Q3-20055-81810

Echo 20055-81810

NUT, CABLE ADJUST
(Superseded to 12415846630)

$13.99

$

Usually ships in 2-4 days

0

Q3-20000-81260

Echo 20000-81260

LOCKNUT
(Superseded to 12411105810)

$3.49

$

In Stock, only 2 left!

0

Q3-70107-81830

Echo 70107-81830

GUIDE, CABLE
(Superseded to P004002870)

$14.99

$

Usually ships in 2-4 days

0

Q3-20055-81130

Echo 20055-81130

GROMMET
(Superseded to P004002180)

$3.99

$

In Stock, only 1 left!

0

Q3-20055-81120

Echo 20055-81120

CAP, CARBURETOR
(Superseded to P004000700)

$8.99

$

Usually ships in 2-4 days

0

Q4-11207-04250

Echo 11207-04250

SCREW - 4X25
(Superseded to 9157704025)

$0.99

$

In Stock, Qty 20+

0

Q5-20060-83180

Echo 20060-83180

TUBE
(Superseded to V475004760)

$0.99

$

Usually ships in 2-4 days

0

Q5-20011-83410

Echo 20011-83410

GASKET
(Superseded to V103000960)

$0.99

$

In Stock, Qty 9

0

Q6-20011-81140

Echo 20011-81140

SPRING
(Superseded to P004000440)

$1.99

$

Usually ships in 2-4 days

0

Q6-20000-81150

Echo 20000-81150

RETAINER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

Q6-70200-81170

Echo 70200-81170

NEEDLE, JET
(Superseded to P004002940)

$10.99

$

Usually ships in 2-4 days

0

Q6-70131-81180

Echo 70131-81180

VALVE, THROTTLE
(Superseded to P004002900)

$28.99

$

In Stock, only 1 left!

0

Q7-70131-81710

Echo 70131-81710

AIR FILTER CASE ASSY
(Superseded to 70102-81710)

$8.99

$

In Stock, Qty 12

0

Q7-20056-81740

Echo 20056-81740

FILTER, AIR
(Superseded to A226000650)

$1.99

$

In Stock, Qty 20+

0

Q7-19404-00008

Echo 19404-00008

LABEL - CHOKE
(Superseded to X506000130)

$0.99

$

In Stock, Qty 20+

0

Q8-20000-81340

Echo 20000-81340

SPRING
(Superseded to P004000890)

$0.99

$

In Stock, Qty 6

0

Q8-20000-81330

Echo 20000-81330

SCREW, SLOW AIR
(Superseded to P004000880)

$2.99

$

Usually ships in 2-4 days

0

Q8-20000-81320

Echo 20000-81320

SPRING
(Superseded to 12433305630)

$0.99

$

In Stock, Qty 7

0

Q9-20060-81770

Echo 20060-81770

COVER, AIR FILTER
(Superseded to A232000830)

$3.99

$

Usually ships in 2-4 days

0

Q9-22100-82430

Echo 22100-82430

O-RING
(Superseded to V581000200)

$0.99

$

In Stock, Qty 5

0

Q9-20024-81790

Echo 20024-81790

WASHER - CONICAL
(Superseded to V347000030)

$0.99

$

In Stock, Qty 9

0

Q9-20060-81780

Echo 20060-81780

KNOB
(Superseded to 20060-81781)

$3.99

$

In Stock, only 1 left!

0

Q10-20000-81310

Echo 20000-81310

SCREW, IDLE ADJUST
(Superseded to 12415905530)

$2.49

$

In Stock, only 4 left!

0

Q10-20011-81351

Echo 20011-81351

SCREW, IDLE ADJUST
(Superseded to P004001300)

$5.49

$

In Stock, only 4 left!

0

Q10-20011-81360

Echo 20011-81360

SCREW, IDLE ADJUST
(Superseded to 12435521330)

$1.99

$

In Stock, Qty 10

0

Q11-20011-81680

Echo 20011-81680

SPRING
(Superseded to 12436721330)

$1.49

$

In Stock, Qty 6

0

Q11-20011-81630

Echo 20011-81630

GASKET, METERING
(Superseded to 12436321330)

$1.99

$

In Stock, Qty 7

0

Q11-20011-81621

Echo 20011-81621

DIAPHRAGM, METERING
(Superseded to P004001430)

$5.99

$

In Stock, only 3 left!

0

Q12-20087-81660

Echo 20087-81660

VALVE, PUMP
(Superseded to P004002550)

$13.99

$

Usually ships in 2-4 days

0

Q12-20087-81640

Echo 20087-81640

BODY, PUMP
(Superseded to 20087-81641)

$18.99

$

In Stock, Qty 7

0

Q12-20000-81650

Echo 20000-81650

SCREW
(Superseded to P004001030)

$0.99

$

In Stock, Qty 20+

0

Q13-20011-81430

Echo 20011-81430

SPRING
(Superseded to 12433121330)

$1.49

$

In Stock, only 2 left!

0

Q13-20011-81451

Echo 20011-81451

LEVER, METERING
(Superseded to P004001340)

$4.99

$

Usually ships in 2-4 days

0

Q13-20087-81420

Echo 20087-81420

GASKET
(Superseded to P004002510)

$6.99

$

Usually ships in 2-4 days

0

Q13-20087-81411

Echo 20087-81411

VALVE, CHECK
(Superseded to P004002500)

$7.99

$

Usually ships in 2-4 days

0

Q14-70200-81430

Echo 70200-81430

PLATE
(Superseded to P004002950)

$7.49

$

Usually ships in 2-4 days

0

Q14-20011-81470

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

Q14-20087-81510

Echo 20087-81510

GASKET, METERING
(Superseded to 12435849930)

$1.49

$

In Stock, Qty 7

0

Q14-20087-81520

Echo 20087-81520

DIAPHRAGM, METERING
(Superseded to 12434149930)

$23.99

$

In Stock, only 2 left!

0

Q15-20011-81460

Echo 20011-81460

PIN, METERING LEVER
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

Q15-20011-81470

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

Q15-20000-81441

Echo 20000-81441

VALVE, INLET NEEDLE
(Superseded to P004000930)

$10.99

$

In Stock, only 4 left!

0

Q16-11022-05550

Echo 11022-05550

SCREW - 5X50
(Superseded to V203000890)

$1.49

$

Usually ships in 2-4 days

0

Q17-20087-81571

Echo 20087-81571

DIAPHRAGM
(Superseded to P004002530)

$10.99

$

Usually ships in 2-4 days

0

Q17-20087-81540

Echo 20087-81540

GASKET
(Superseded to 12435949930)

$2.49

$

Usually ships in 2-4 days

0

Q17-20087-81851

Echo 20087-81851

SPRING, RETURN
(Superseded to P004002580)

$2.49

$

In Stock, only 2 left!

0

Q17-20087-81870

Echo 20087-81870

SPRING
(Superseded to 12435550130)

$1.99

$

In Stock, Qty 5

0

Q17-20087-81861

Echo 20087-81861

VALVE
(Superseded to P004002590)

$18.99

$

Usually ships in 2-4 days

0

Q18-20087-81550

Echo 20087-81550

BASE, PURGE
(Superseded to 12437949930)

$20.99

$

Usually ships in 2-4 days

0

Q18-20087-81890

Echo 20087-81890

GASKET
(Superseded to P004002600)

$2.49

$

In Stock, only 2 left!

0

Q18-20087-81560

Echo 20087-81560

PLATE, PUMP
(Superseded to 12436049930)

$3.49

$

Usually ships in 2-4 days

0

Q18-20087-81840

Echo 20087-81840

SCREW
(Superseded to 12431049930)

$0.99

$

Usually ships in 2-4 days

0

Q19-20087-81811

Echo 20087-81811

COVER, PUMP
(Superseded to P004002570)

$7.49

$

In Stock, only 1 left!

0

Q19-20087-81820

Echo 20087-81820

BULB, PURGE
(Superseded to 12438012710)

$9.99

$

In Stock, only 1 left!

0

Q19-20087-81830

Echo 20087-81830

PLATE
(Superseded to 12434249930)

$3.49

$

Usually ships in 2-4 days

0

Q19-20087-81880

Echo 20087-81880

SCREW
(Superseded to 90024103020)

$0.99

$

Usually ships in 2-4 days

0

Q20-20087-81531

Echo 20087-81531

PRIMER PUMP ASSY
(Superseded to P004002520)

$43.99

$

Usually ships in 2-4 days

0

Q21-99909-305

Echo 99909-305

DIAPHRAGM/GASKET KIT
(Superseded to 70244-98050)

$62.99

$

In Stock, only 1 left!

0

Q22-20060-81760

Echo 20060-81760

COVER, CLEANER ASSY
(Superseded to A232000820)

$12.99

$

Usually ships in 2-4 days

0
