T 344 - Shindaiwa String Trimmer (SN: T14913001001 - T14913999999) FAN COVER / ENGINE COVER Parts Diagram

String Trimmer

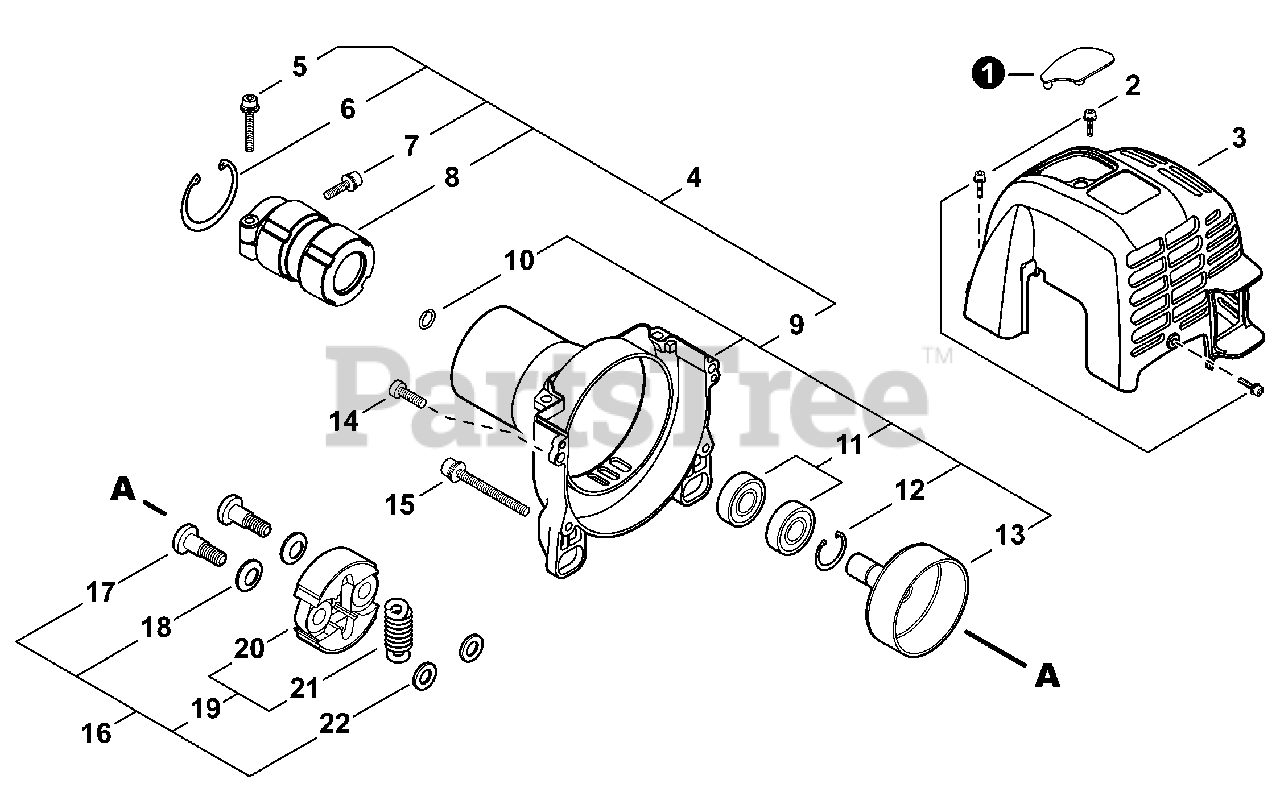

FAN COVER / ENGINE COVER Parts Diagram

  • Title
1

Echo A429000130

COVER, SPARK PLUG

$2.99

$

In Stock, only 2 left!

0

2

Echo V202000290

BOLT M4×14

$0.99

$

Usually ships in 2-4 days

0

3

Echo A160001632

COVER, ENGINE

$9.99

$

Usually ships in 2-4 days

0

4

Echo P021035551

COVER ASSY, FAN

Note: Includes Items 5-13

$90.99

$

Usually ships in 2-4 days

0

5

Echo V203000790

BOLT M5×28

$0.99

$

Usually ships in 2-4 days

0

6

Echo 9242445000

RING, SNAP Ø45

$1.99

$

Usually ships in 2-4 days

0

7

Echo V203000870

BOLT M5×12

$0.99

$

Usually ships in 2-4 days

0

8

Echo V420000970

CUSHION, AV

$20.99

$

In Stock, only 1 left!

0

9

Echo P021035541

COVER KIT, FAN

Note: Includes Items 10-13

$92.99

$

Usually ships in 2-4 days

0

10

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 10

0

11

Echo 9400236001

BEARING, BALL 6001 DDU C3

$7.49

$

In Stock, only 4 left!

0

12

Echo 9242428000

RING, SNAP Ø28
(Superseded to 90070200028)

$1.49

$

In Stock, Qty 15

0

13

Echo A556001360

DRUM, CLUTCH

$35.99

$

Usually ships in 2-4 days

0

14

Echo 9110105016

BOLT M5×16

$0.99

$

Usually ships in 2-4 days

0

15

Echo V203000860

BOLT M5×40

$1.99

$

Usually ships in 2-4 days

0

16

Echo P021033960

CLUTCH ASSY

Note: Includes Items 16-22

$30.99

$

Usually ships in 2-4 days

0

17

Echo A557000080

BOLT, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

18

Echo V346000040

WASHER, SPRING

$0.99

$

Usually ships in 2-4 days

0

19

Echo A056000440

SHOE ASSY, CLUTCH

Note: Includes Items 20-21

$24.99

$

Usually ships in 2-4 days

0

20

Echo A555000120

SHOE, CLUTCH

$13.99

$

Usually ships in 2-4 days

0

21

Echo A566000110

SPRING, CLUTCH

$4.49

$

In Stock, Qty 20+

0

22

Echo V304000150

WASHER 6MM

$0.99

$

Usually ships in 2-4 days

0
