T 3410 X - Shindaiwa String Trimmer Gear Case Parts Diagram

String Trimmer

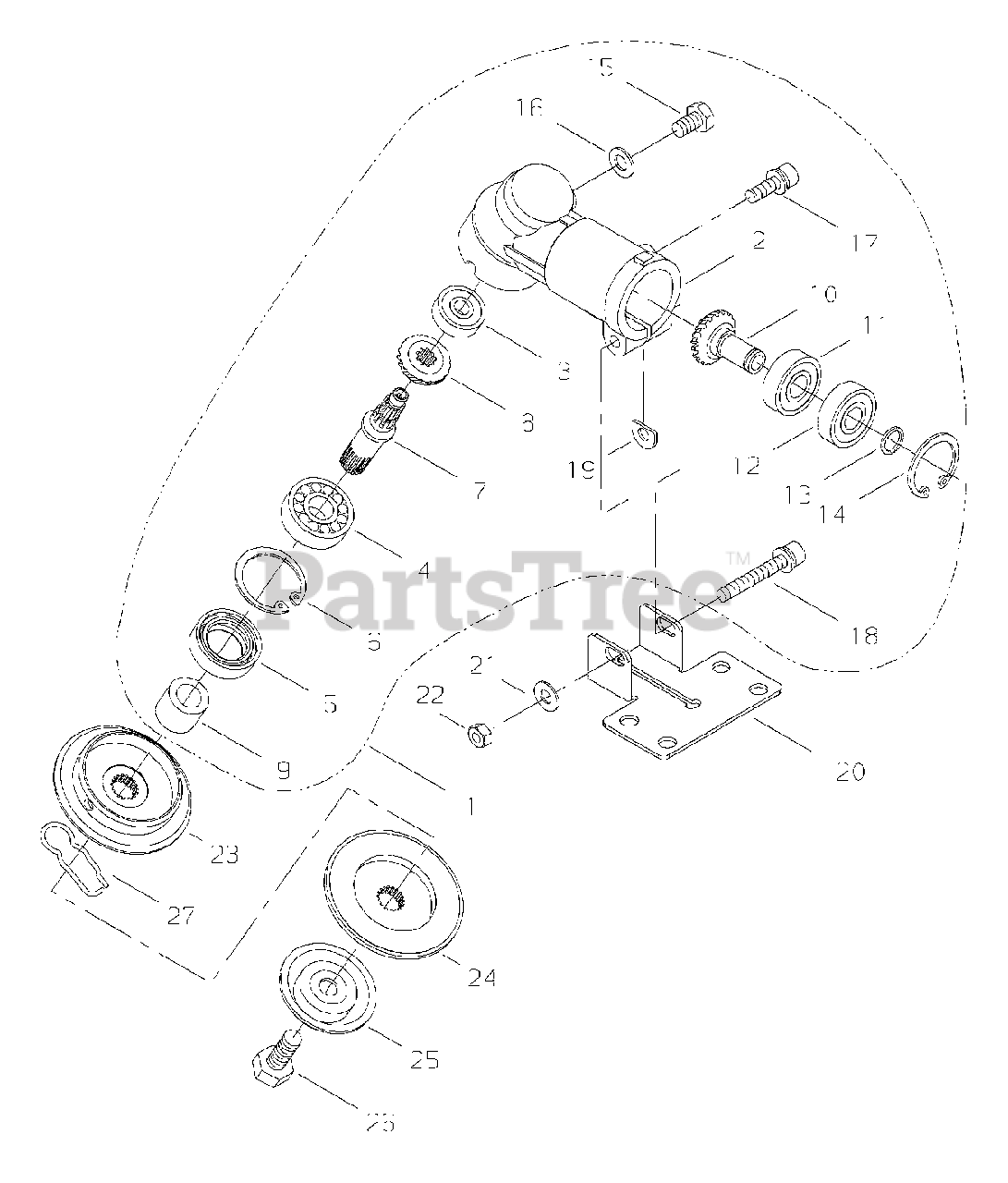

Gear Case Parts Diagram

  • Title
1

Echo 63000-63020

GEAR CASE ASSY
(Superseded to C051000480)

$237.99

$

Usually ships in 2-4 days

0

2

Echo 22024-13112

CASE, GEAR
(Superseded to C531000580)

$24.99

$

Usually ships in 2-4 days

0

3

Echo 02046-00609

BEARING, BALL - 609
(Superseded to 9402840609)

$12.99

$

Usually ships in 2-4 days

0

4

Echo 02000-06201

BEARING, BALL - 6201
(Superseded to 90081006201)

$6.99

$

Usually ships in 2-4 days

0

5

Echo 22024-13121

SEAL, OIL
(Superseded to V510000000)

$4.49

$

In Stock, only 1 left!

0

6

Echo 02432-32120

RING, RETAINING - 32
(Superseded to 9242432000)

$0.99

$

In Stock, Qty 5

0

7

Echo 72435-13210

GEAR - SHAFT
(Superseded to C534000570)

$24.99

$

Usually ships in 2-4 days

0

8

Echo 22024-13220

GEAR - BEVEL
(Superseded to V651000450)

$19.99

$

In Stock, Qty 15

0

9

Echo 22000-13230

COLLAR
(Superseded to V356000500)

$3.99

$

In Stock, Qty 5

0

10

Echo 22024-13391

PINION SET
(Superseded to V651000460)

$22.99

$

In Stock, Qty 18

0

11

Echo 02000-06901

BEARING, BALL - 6901
(Superseded to 90085506901)

$15.99

$

In Stock, only 1 left!

0

12

Echo 02002-06901

BEARING, BALL - 6901ZZ
(Superseded to 90085906901)

$21.99

$

Usually ships in 2-4 days

0

13

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 6

0

14

Echo 02432-24120

RING, RETAINING - 24
(Superseded to 9242424000)

$0.99

$

In Stock, Qty 5

0

15

Echo 22015-13410

BOLT - 6X10
(Superseded to V206000250)

$1.49

$

In Stock, Qty 19

0

16

Echo 22015-13420

WASHER
(Superseded to V307000230)

$0.99

$

In Stock, only 4 left!

0

17

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

18

Echo 11022-06400

SCREW - 6X40
(Superseded to V204000450)

$1.99

$

In Stock, only 2 left!

0

19

Echo 22011-13450

SHIM
(Superseded to V340000280)

$0.99

$

In Stock, Qty 6

0

20

Echo 72441-16130

BRACKET
(Superseded to C551000140)

$3.99

$

In Stock, Qty 11

0

21

Echo 01613-06100

WASHER - 6
(Superseded to 90060300006)

$0.99

$

In Stock, Qty 20+

0

22

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

23

Echo 22024-13912

HOLDER - A
(Superseded to C535000640)

$28.99

$

In Stock, only 1 left!

0

24

Echo 63000-63170

HOLDER
(Superseded to C535000650)

$25.99

$

In Stock, only 1 left!

0

25

Echo 22024-13291

GUARD
(Superseded to C535000630)

$4.99

$

In Stock, only 1 left!

0

26

Echo 22000-13512

BOLT - 8 -- LEFT HAND
(Superseded to V205000480)

$2.99

$

In Stock, Qty 19

0

27

Echo 22000-13530

CLIP
(Superseded to V641000150)

$2.49

$

In Stock, only 4 left!

0
