T 3410 - Shindaiwa String Trimmer Air Cleaner, Carburetor - S/N 7000001 - 7020000 Parts Diagram

String Trimmer

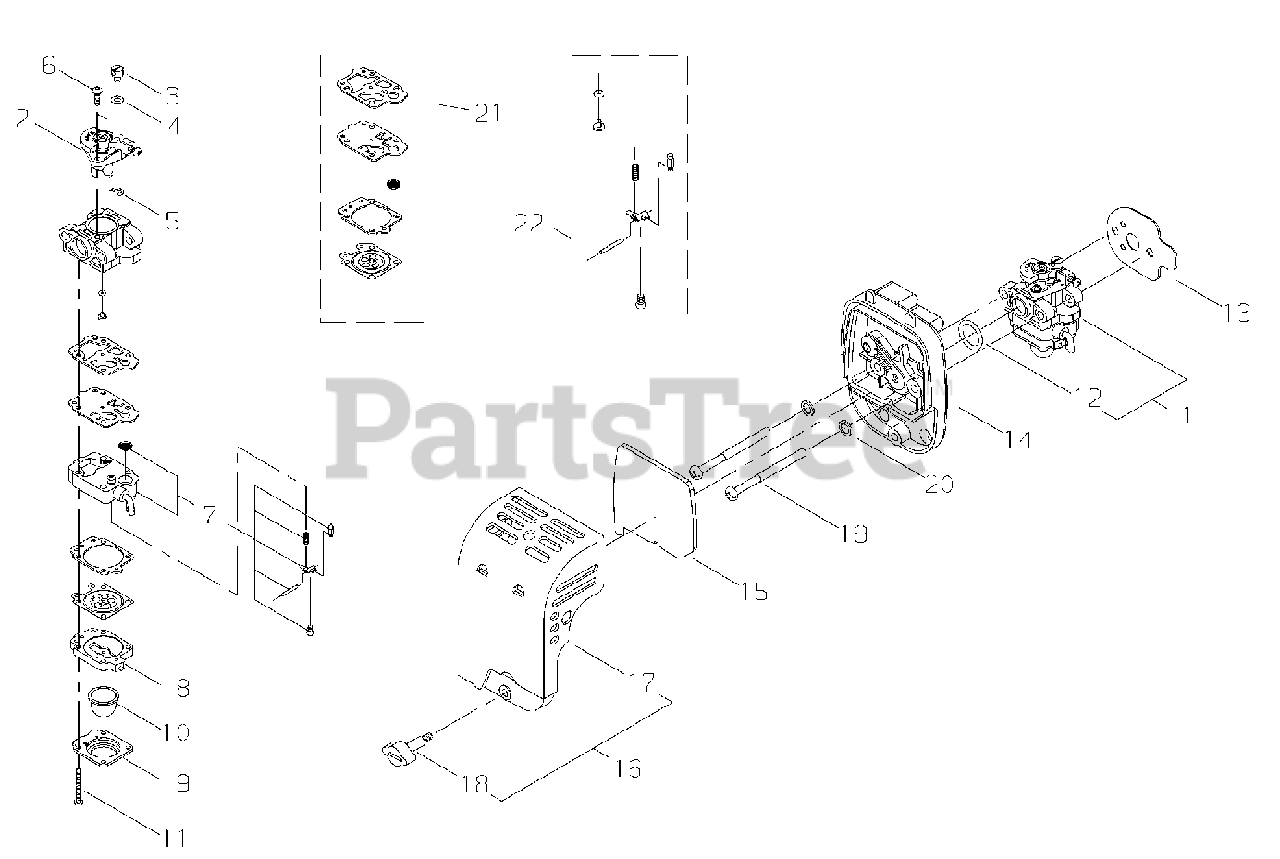

Air Cleaner, Carburetor - S/N 7000001 - 7020000 Parts Diagram

  • Title

6- 1

Echo 62907-81011

CARBURETOR
(Superseded to A021002480)

$68.99

$

In Stock, only 1 left!

0

2

Echo 62907-81321

THROTTLE VALVE SET
(Superseded to P003004630)

$36.99

$

Usually ships in 2-4 days

0

3

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

In Stock, only 1 left!

0

5

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

6

Echo 70064-81290

SCREW
(Superseded to 12311444330)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 37013-81350

PUMP BODY ASSY
(Superseded to P003000510)

$14.99

$

In Stock, only 4 left!

0

8

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$7.49

$

In Stock, only 1 left!

0

9

Echo 20016-81510

COVER, PUMP
(Superseded to 12314205560)

$4.49

$

In Stock, Qty 20+

0

10

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.49

$

In Stock, Qty 20+

0

11

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.99

$

In Stock, Qty 20+

0

12

Echo 20016-81250

O-RING - 15
(Superseded to 90072000015)

$1.99

$

In Stock, Qty 20+

0

21

Echo 60902-98030

DIAPHRAGM/GASKET KIT
(Superseded to P050008580)

$35.99

$

In Stock, only 1 left!

0

22

Echo 60907-98341

INLET NEEDLE VALVE KIT
(Superseded to P050008570)

$45.99

$

Usually ships in 2-4 days

0

13

Echo 62907-81210

GASKET, INTAKE
(Superseded to V103000570)

$1.99

$

In Stock, only 3 left!

0

14

Echo 62905-82010

AIR FILTER CASE ASSY
(Superseded to P021037300)

$41.99

$

In Stock, only 1 left!

0

15

Echo 62902-82120

FILTER
(Superseded to A226001470)

$2.99

$

In Stock, Qty 20+

0

16

Echo 62902-82030

CLEANER COVER ASSY
(Superseded to P021037300)

$41.99

$

In Stock, only 1 left!

0

17

Echo 62901-82131

CLEANER COVER
(Superseded to Discontinued)

$

$

Not available

18

Echo 62901-82330

THUMBSCREW
(Superseded to V299000570)

$6.49

$

In Stock, Qty 5

0

19

Echo 11203-05605

SCREW - 5X60
(Superseded to 9158105060)

$1.99

$

In Stock, only 3 left!

0

20

Echo 01613-05080

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0
