T 3200 (CMXGRAM211303) (13BQA2ZW093) - Craftsman Lawn Tractor (2022) Wheels Parts Diagram

Lawn Tractor

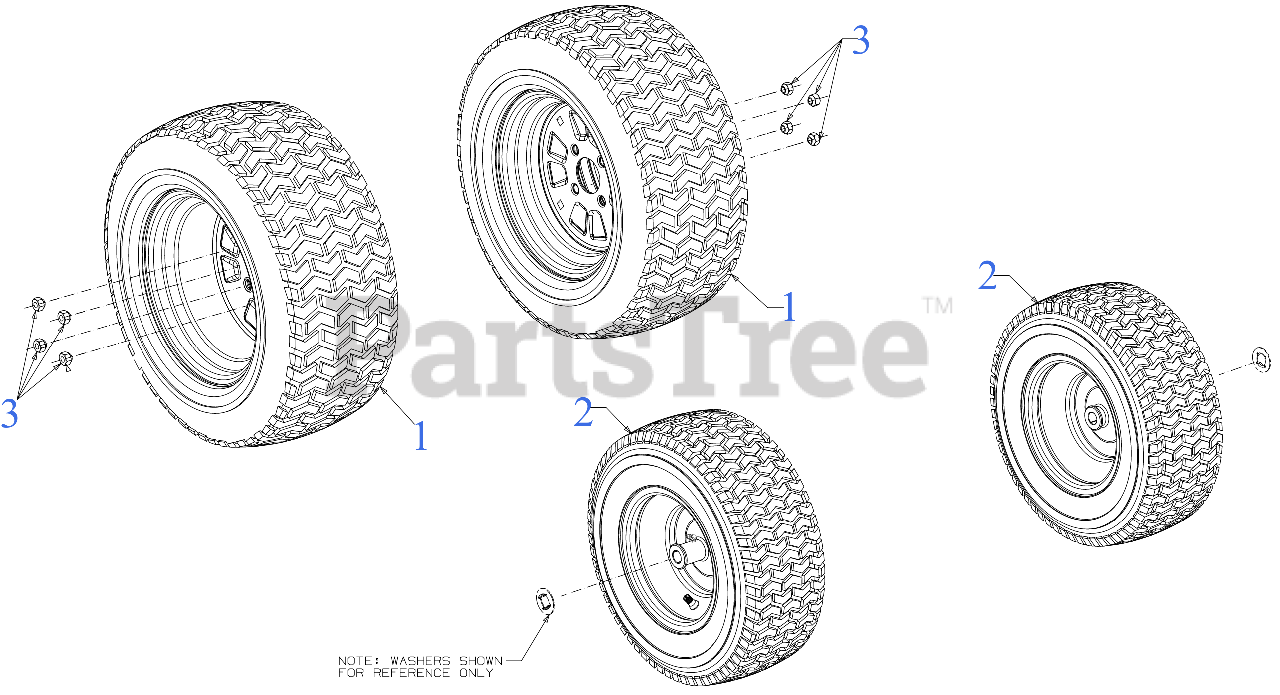

Wheels Parts Diagram

1

MTD 634-05107-0916

WHEEL ASM COMPLETE - Kenda Gray (0916)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

$454.99

$

Usually ships in 3-6 days

0

1

MTD 934-0255

TUBELESS AIR VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

MTD 734-05065-0906

TIRE 22X9.5X12 - Kenda (0906)

Note: (Not Shown)

Variations

$219.99

$

Usually ships in 3-6 days

0

1

MTD 634-04238-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)
(Superseded to 753-10244)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

$172.99

$

Usually ships in 3-6 days

0

2

MTD 634Z05180A

WHEEL ASSEMBLY (16X6.5X8)

Note: *CHOOSE COLOR WHEN ORDERING*

$183.99

$

Usually ships in 3-6 days

0

2

MTD 634-05179B

RIM ASSEMBLY (8.0X5.38)

Note: *CHOOSE COLOR WHEN ORDERING*

$82.99

$

Usually ships in 3-6 days

0

2

MTD 934-0255

TUBELESS AIR VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 741-05094

FLANGE BEARING

Note: (Not Shown)

$7.49

$

In Stock, Qty 20+

0

2

MTD 741P06150

FLANGE BEARING (W/FTG .735ID)

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

2

MTD 737-05024

GREASE FITTING 65 DEG 3/16

Note: (Not Shown)

$5.99

$

In Stock, Qty 14

0

2

MTD 734-04641

TIRE-16.0 x 6.50 x 8.00 SQ SH DELI
(Superseded to 734-1727)

Note: (Not Shown)

$56.99

$

Usually ships in 3-6 days

0

3

MTD 712-3050

LUG NUT 7/16-14

$9.99

$

In Stock, Qty 20+

0

MTD 490-241-0025

CHAINS 22" x 9.5"

$94.99

$

Usually ships in 3-6 days
