T 302 X - Shindaiwa String Trimmer (SN: U10115001001 - U10115999999) FUEL SYSTEM Parts Diagram

String Trimmer

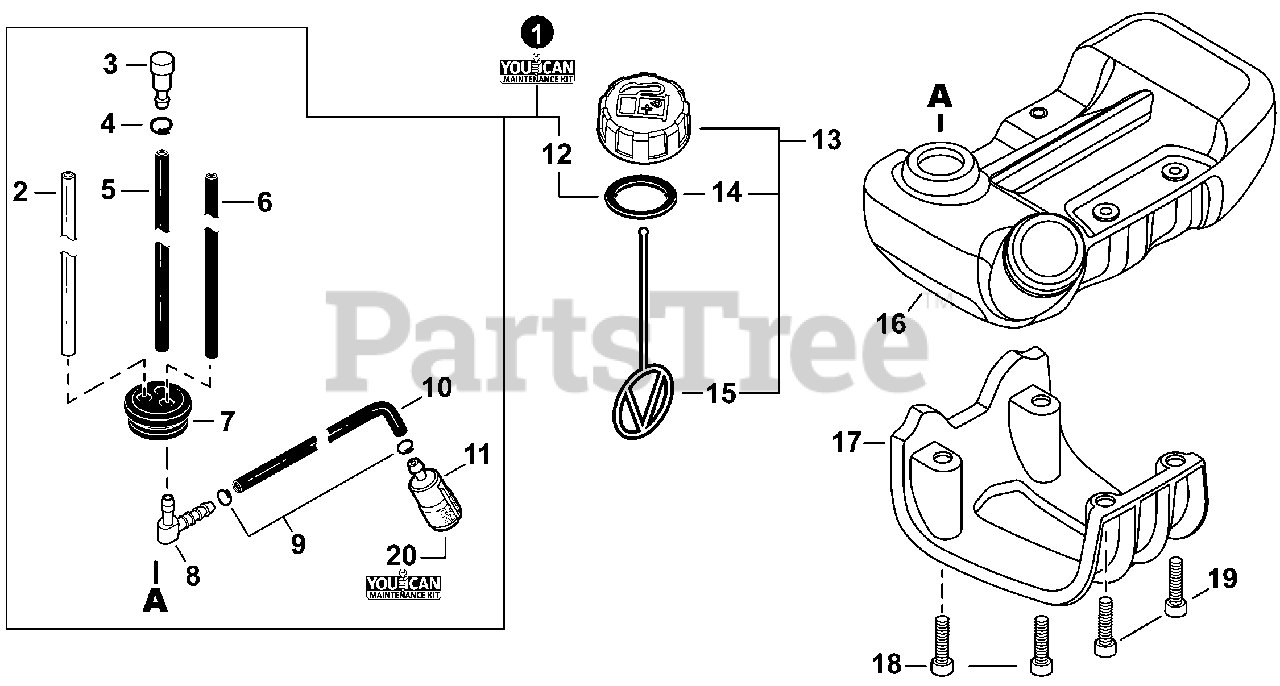

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 84011Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes Items 2-12 Maintenance Kit

$41.99

$

Usually ships in 2-4 days

0

2

Echo 13201049730

PIPE, FUEL 3x6x85 CLEAR

$2.49

$

In Stock, only 3 left!

0

3

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V471003321

PIPE, FUEL 3x6x95 BLACK

$2.99

$

In Stock, Qty 8

0

6

Echo V471005610

PIPE, FUEL 3x5.5x70 BLACK

$3.49

$

In Stock, Qty 10

0

7

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

9

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 18

0

10

Echo V470002361

PIPE, FUEL 3x5x140x35 BLACK

$5.49

$

In Stock, Qty 8

0

11

Echo A369000470

FILTER, FUEL

Note: Included in Tune-up Kit

$8.99

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

13

Echo P021041930

CAP ASSY, FUEL

Note: Includes Items 14-15

$5.99

$

In Stock, Qty 6

0

14

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

15

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

16

Echo A350002510

TANK, FUEL

$50.99

$

In Stock, only 3 left!

0

17

Echo A175000400

GUARD, FUEL TANK

$3.99

$

In Stock, only 2 left!

0

18

Echo V805000230

BOLT, TORX 5x25

$1.49

$

In Stock, Qty 7

0

19

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

20

Echo 84024Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$41.99

$

In Stock, Qty 11

0
