T 3000 - Shindaiwa String Trimmer, 56V Battery (SN: T90800001001 - T90800999999) MOTOR Parts Diagram

String Trimmer, 56V Battery

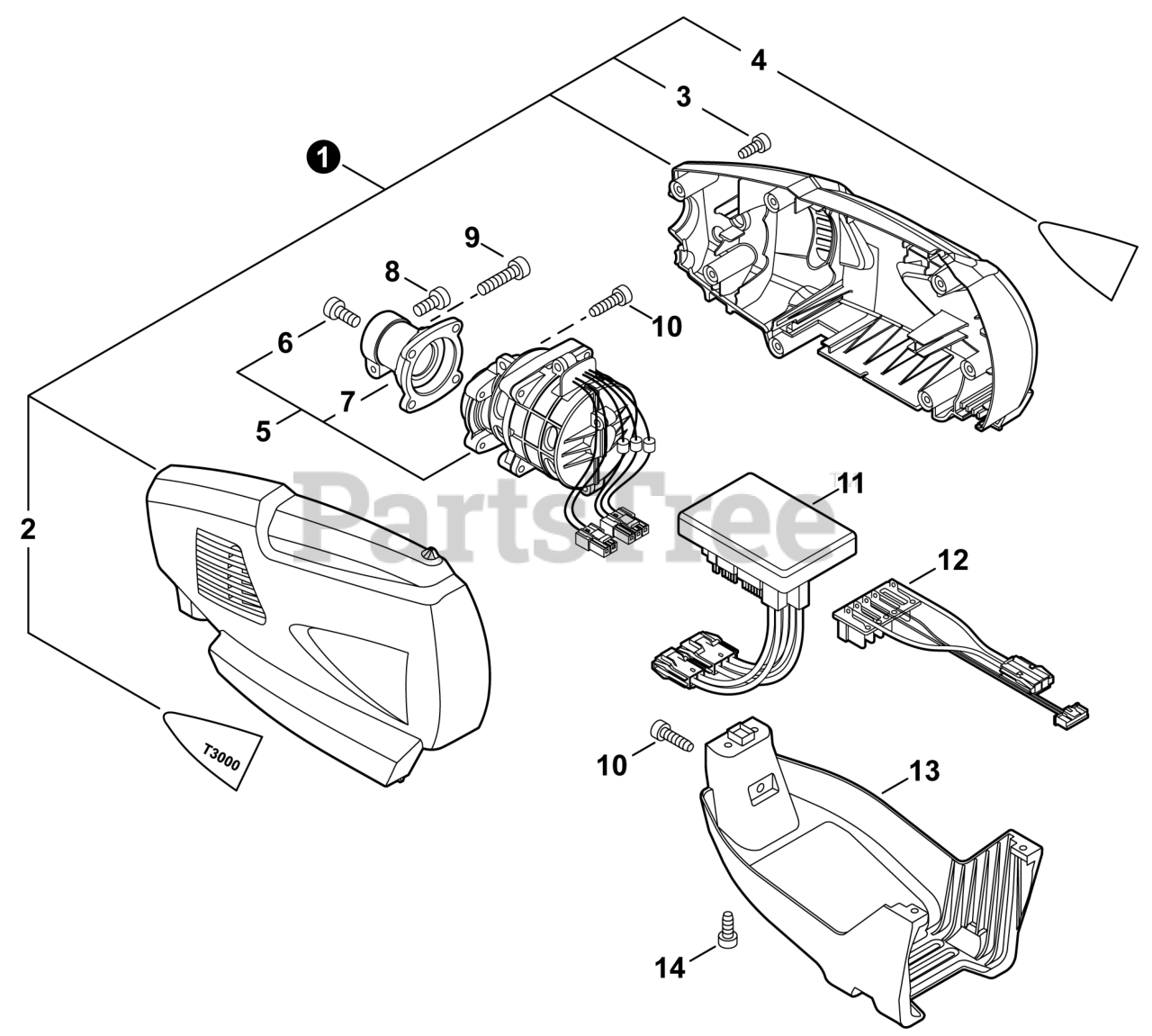

MOTOR Parts Diagram

  • Title

1

Echo P021049760

COVER SET, ENGINE

Note: Includes items 2-4

$59.99

$

Usually ships in 2-4 days

0

2

Echo X503013360

LABEL - MODEL T3000

$7.49

$

Usually ships in 2-4 days

0

3

Echo V804000010

BOLT, TORX 4x16

$0.99

$

In Stock, Qty 7

0

4

Echo X503013370

LABEL - MODEL T3000

$7.49

$

Usually ships in 2-4 days

0

5

Echo A054000230

MOTOR ASSY

Note: Includes items 6-7

$222.99

$

Usually ships in 2-4 days

0

6

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

7

Echo A575000610

HOLDER, MAIN PIPE

$20.99

$

Usually ships in 2-4 days

0

8

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0

9

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

10

Echo V805000010

BOLT, TORX 5x20

$0.99

$

Usually ships in 2-4 days

0

11

Echo A047000260

CONTROL BOARD ASSY

$185.99

$

Usually ships in 2-4 days

0

12

Echo V486000490

TERMINAL, LEAD

$42.99

$

Usually ships in 2-4 days

0

13

Echo A175000370

STAND

$8.99

$

Usually ships in 2-4 days

0

14

Echo V804000010

BOLT, TORX 4x16

$0.99

$

In Stock, Qty 7

0
