T 300 - Husqvarna Cultivator (1995-08) Chassis Parts Diagram

Cultivator

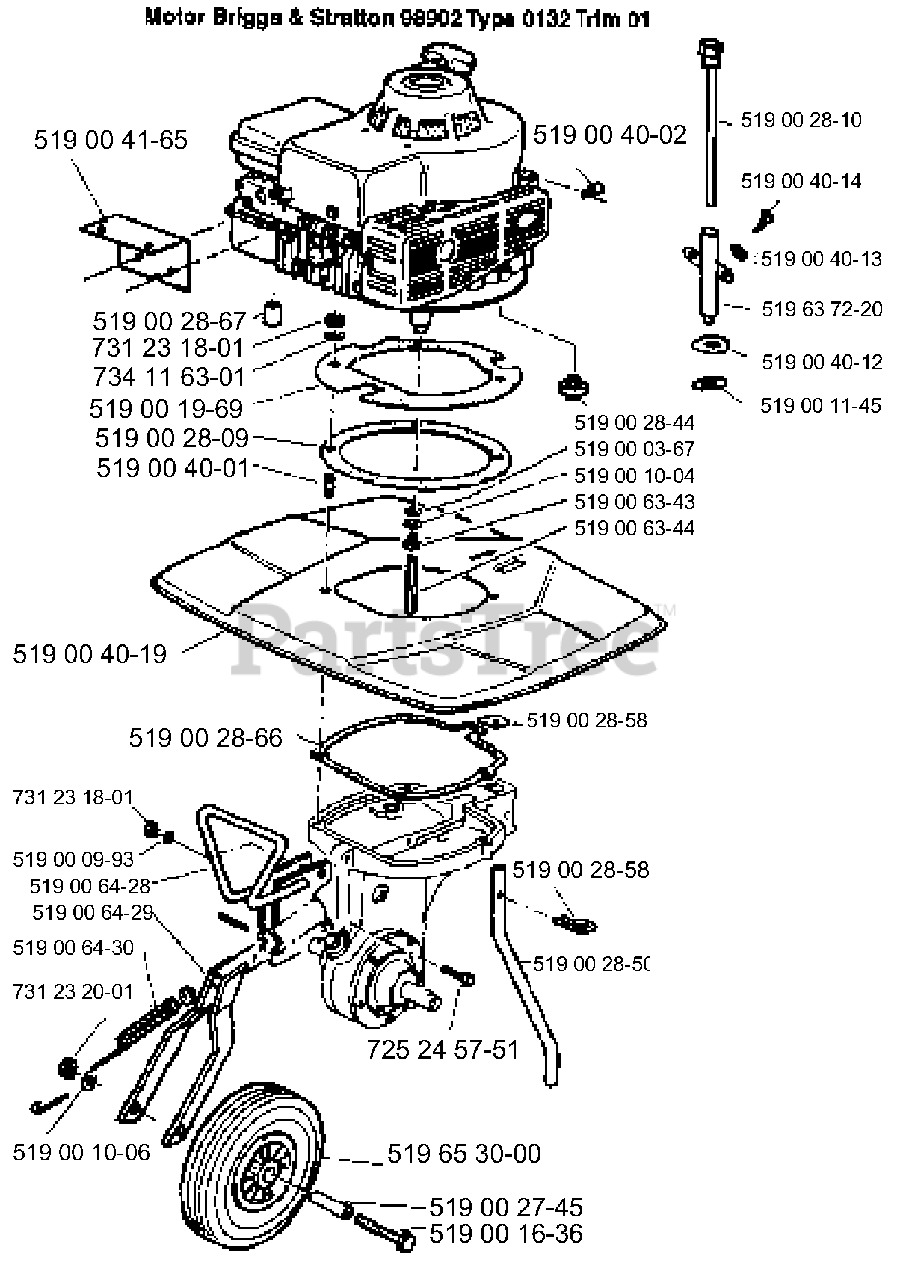

Chassis Parts Diagram

  • Title

519004165

Husqvarna 519004165

Support

$

$

Not available

519002867

Husqvarna 519002867

Sleeve

$

$

Not available

731231801

Husqvarna 731231801

Nut
(Superseded to 695008078)

$

$

Not available

734116301

Husqvarna 734116301

Washer - 15x7.3x1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

519001969

Husqvarna 519001969

Gasket

$

$

Not available

519002809

Husqvarna 519002809

Gasket

$

$

Not available

519004001

Husqvarna 519004001

Screw

$

$

Not available

519004019

Husqvarna 519004019

Cover

$

$

Not available

519002866

Husqvarna 519002866

Gasket

$

$

Not available

731231801

Husqvarna 731231801

Nut
(Superseded to 695008078)

$

$

Not available

519006428

Husqvarna 519006428

Bracket

$

$

Not available

519006429

Husqvarna 519006429

Fork

$

$

Not available

519006430

Husqvarna 519006430

Spring Cpl

$

$

Not available

731232001

Husqvarna 731232001

Nut

$6.49

$

In Stock, only 4 left!

0

519001006

Husqvarna 519001006

Repl By 735 21 78-01
(Superseded to 735217801)

$

$

Not available

519653000

Husqvarna 519653000

Wheel
(Superseded to 519653259)

$

$

Not available

725245751

Husqvarna 725245751

Screw

$5.99

$

In Stock, only 1 left!

0

519000993

Husqvarna 519000993

Washer

$

$

Not available

519001636

Husqvarna 519001636

Repl By 725 25 50-51
(Superseded to 725255051)

$4.49

$

Usually ships in 3-10 days

0

519002745

Husqvarna 519002745

Sleeve

$

$

Not available

519002850

Husqvarna 519002850

Arrestor

$

$

Not available

519002858

Husqvarna 519002858

Gasket

$

$

Not available

519002858

Husqvarna 519002858

Gasket

$

$

Not available

519006344

Husqvarna 519006344

Shaft

$

$

Not available

519006343

Husqvarna 519006343

Screw

$

$

Not available

519002844

Husqvarna 519002844

Gasket

$

$

Not available

519001145

Husqvarna 519001145

Gasket

$

$

Not available

5190074012

Husqvarna 5190074012

$

$

Currently unavailable

519637220

Husqvarna 519637220

Pipe

$

$

Not available

519004013

Husqvarna 519004013

Washer

$

$

Not available

519004014

Husqvarna 519004014

Screw

$

$

Not available

519001004

Husqvarna 519001004

Washer

$

$

Not available

519000367

Husqvarna 519000367

Washer

$

$

Not available

519004002

Husqvarna 519004002

Plug

$

$

Not available

519002810

Husqvarna 519002810

Depth Gauge

$

$

Not available
