T 282 X - Shindaiwa String Trimmer (SN: T75214001001 - T75214999999) GEAR CASE Parts Diagram

String Trimmer

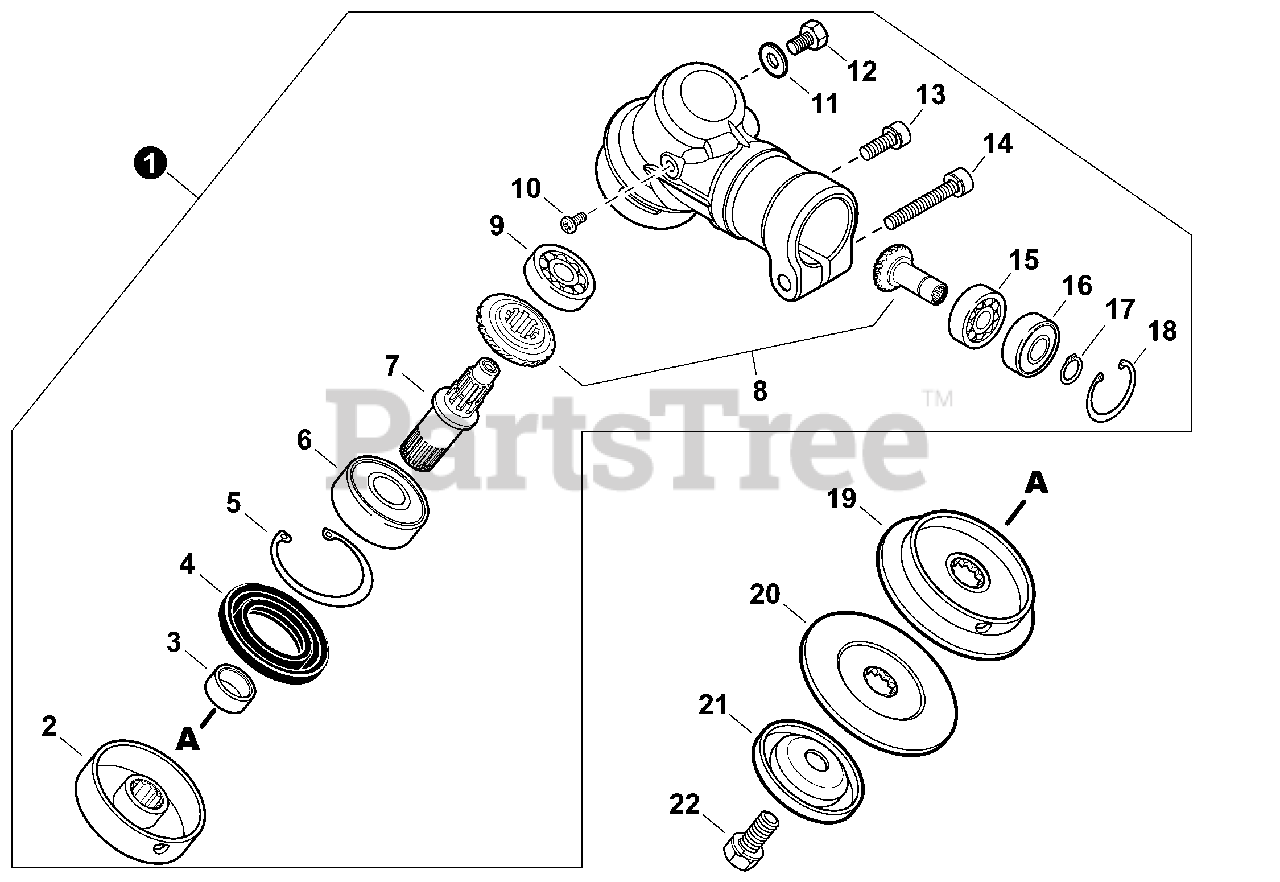

GEAR CASE Parts Diagram

  • Title

1

Echo P021027320

GEAR CASE ASSY

Note: Includes Items 2-18

$175.99

$

Usually ships in 2-4 days

0

2

Echo C535000700

HOLDER

$23.99

$

Usually ships in 2-4 days

0

3

Echo V356000500

SPACER

$3.99

$

In Stock, Qty 5

0

4

Echo V510000000

SEAL, OIL

$4.49

$

In Stock, only 1 left!

0

5

Echo 9242432000

RING, SNAP 32

$0.99

$

In Stock, Qty 5

0

6

Echo 90081006201

BEARING, BALL 6201

$6.99

$

Usually ships in 2-4 days

0

7

Echo C534000580

SHAFT, GEAR

$30.99

$

Usually ships in 2-4 days

0

8

Echo P100000010

GEAR SET

$66.99

$

In Stock, only 2 left!

0

9

Echo 90080000609

BEARING, BALL 609

$9.99

$

In Stock, Qty 11

0

10

Echo 9157804006

SCREW M4×6

$0.99

$

In Stock, Qty 16

0

11

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 16

0

12

Echo 9103006010

BOLT M6×10

$0.99

$

In Stock, only 3 left!

0

13

Echo 90010505010

BOLT M5×10

$1.49

$

In Stock, Qty 10

0

14

Echo V204000450

BOLT M6×40

$1.99

$

In Stock, only 3 left!

0

15

Echo 90080006000

BEARING, BALL 6000

$10.99

$

Usually ships in 2-4 days

0

16

Echo 90080406000

BEARING, BALL 6000ZZ
(Superseded to 9404406000)

$9.99

$

In Stock, Qty 14

0

17

Echo 9242310000

RING, SNAP 10

$0.99

$

Usually ships in 2-4 days

0

18

Echo 9242426000

RING, SNAP 26

$0.99

$

In Stock, Qty 6

0

19

Echo C535000710

PLATE, ADAPTOR - UPPER

$40.99

$

Usually ships in 2-4 days

0

20

Echo C535000720

PLATE, ADAPTOR - LOWER

$34.99

$

Usually ships in 2-4 days

0

21

Echo C535000730

GUARD, BOLT

$4.99

$

Usually ships in 2-4 days

0

22

Echo V205000940

BOLT 8

$3.99

$

In Stock, only 1 left!

0
