T 282 X - Shindaiwa String Trimmer (SN: T20513001001 - T20513999999) Intake Parts Diagram

String Trimmer

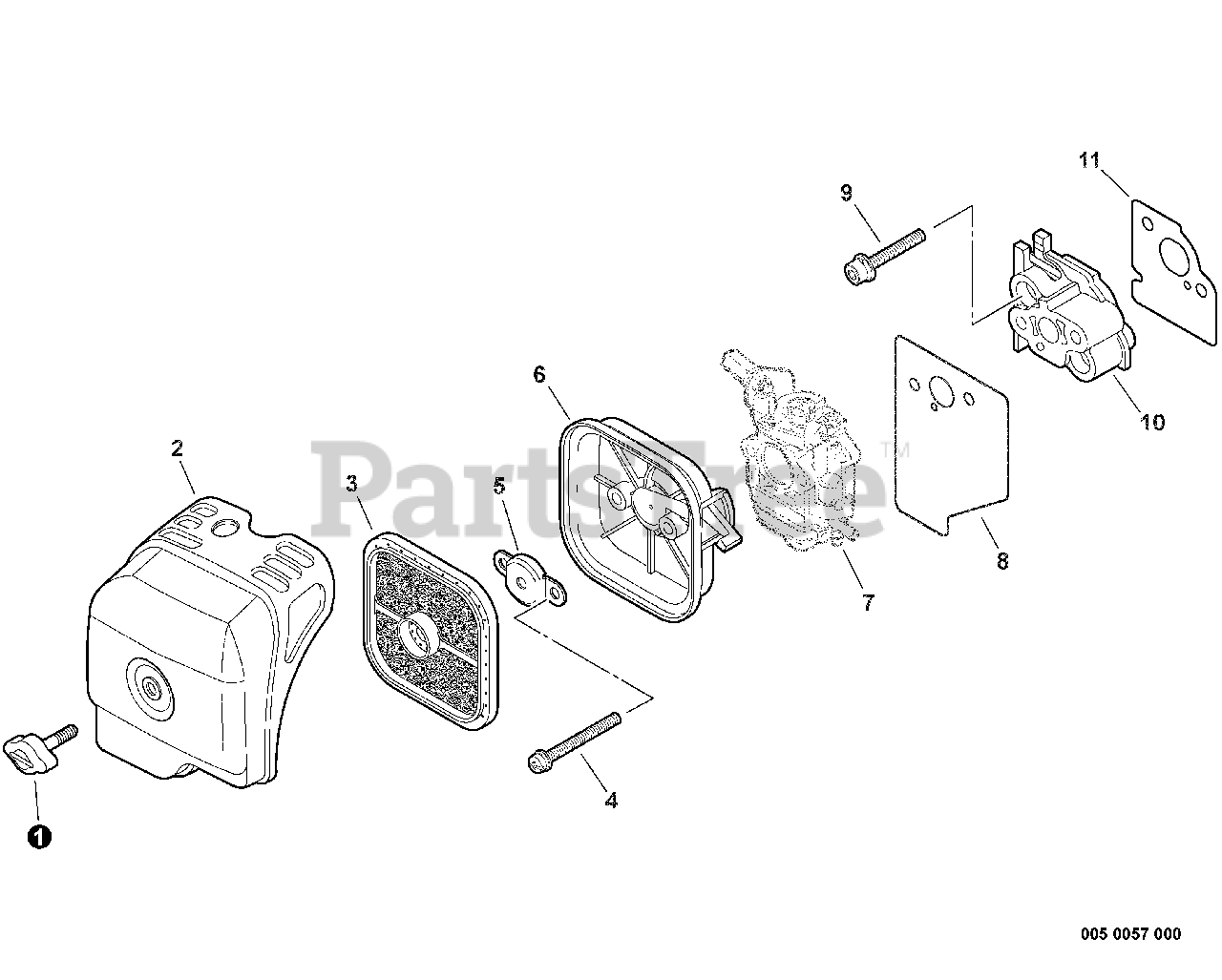

Intake Parts Diagram

  • Title
1

Echo V299000520

THUMBSCREW

$3.99

$

In Stock, only 2 left!

0

2

Echo A232001370

COVER, AIR FILTER

$10.99

$

In Stock, Qty 12

0

3

Echo A226000471

FILTER, AIR - DOUBLE LAYER
(Superseded to A226000472)

$7.99

$

In Stock, Qty 20+

0

4

Echo 90024205060

SCREW - 5X60

$0.99

$

In Stock, Qty 12

0

5

Echo A244000070

PLATE, PREVENT

$4.99

$

In Stock, Qty 20+

0

6

Echo P021038690

AIR FILTER CASE ASSY

$13.99

$

In Stock, only 1 left!

0

7

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

8

Echo V103000920

GASKET, INTAKE

$3.49

$

In Stock, Qty 10

0

9

Echo V203000580

SCREW - 5X30
(Superseded to V203000581)

$

$

Not available

10

Echo A200000620

INSULATOR, INTAKE

$18.99

$

In Stock, only 1 left!

0

11

Echo V103000660

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0
