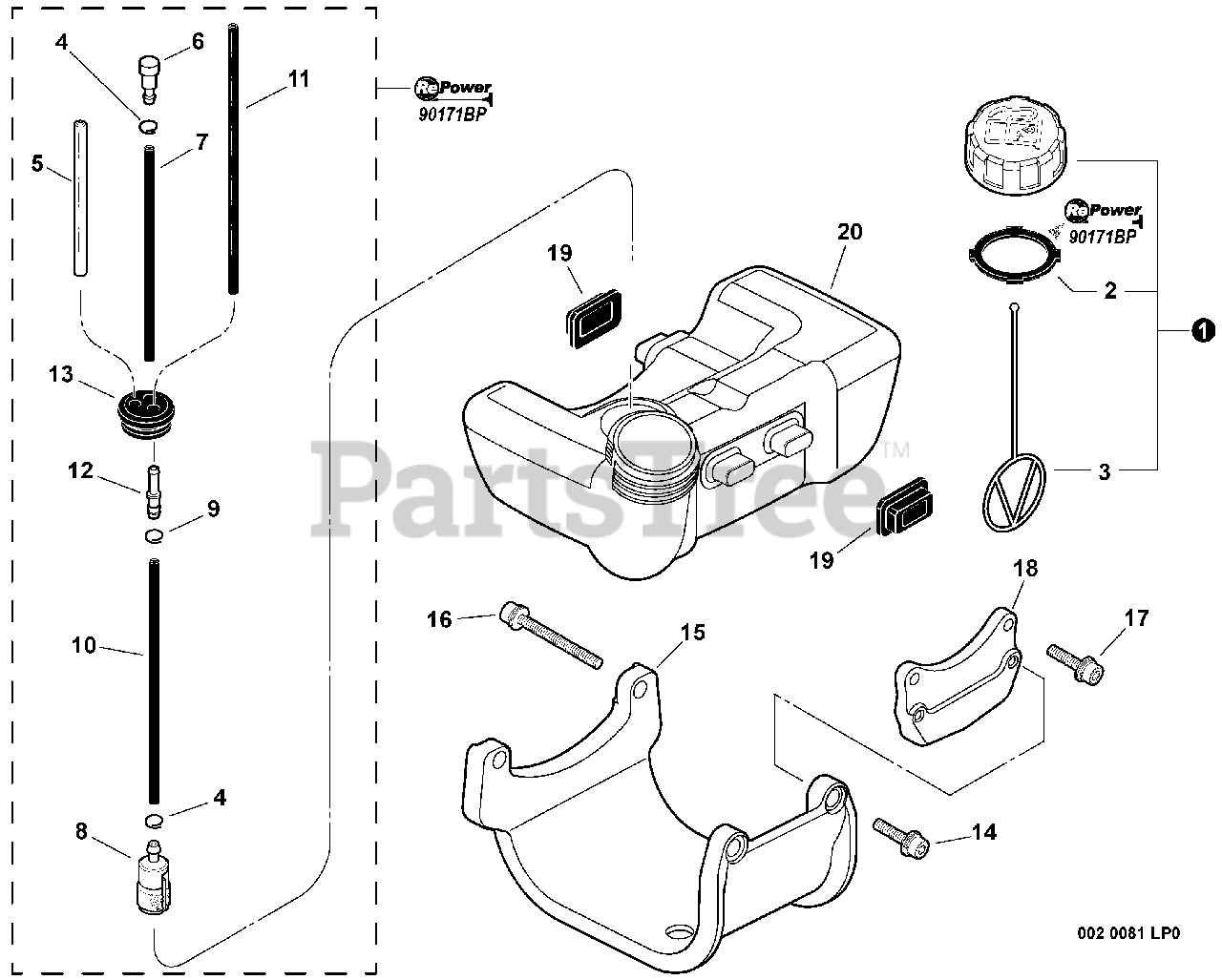

T 282 X - Shindaiwa String Trimmer (SN: T20513001001 - T20513999999) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

1

Echo P021041930

CAP ASSY - RED

Note: Includes ITEM 2-3

$5.99

$

In Stock, Qty 5

0

2

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, CAP

$1.49

$

In Stock, Qty 10

0

4

Echo V490000500

CLIP - 6

$0.99

$

In Stock, Qty 19

0

5

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

6

Echo A356000040

VENT, FUEL TANK

$6.99

$

In Stock, Qty 20+

0

7

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

8

Echo A369000000

FILTER, FUEL
(Superseded to A369000001)

$6.99

$

In Stock, Qty 20+

0

9

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

10

Echo V470001970

PIPE - 3X6X120 -- BLACK

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, only 1 left!

0

11

Echo V471003590

PIPE - 3X5X78 -- BLACK
(Superseded to V471005630)

Note: RePower BULK OPTION: N/A

$3.49

$

In Stock, only 1 left!

0

12

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

13

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

14

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

$0.99

$

In Stock, Qty 12

0

15

Echo V203000520

SCREW - 5X40

$1.99

$

In Stock, only 1 left!

0

16

Echo A175000170

GUARD, FUEL TANK

$7.99

$

Usually ships in 2-4 days

0

17

Echo V203000760

SCREW - 5X20

$1.99

$

In Stock, only 1 left!

0

18

Echo A393000170

BRACKET

$8.99

$

Usually ships in 2-4 days

0

19

Echo V420002220

CUSHION, FUEL TANK

$0.99

$

In Stock, Qty 8

0

20

Echo A350001990

TANK, FUEL

$35.99

$

Usually ships in 2-4 days

0

21

Echo 90171BP

RePower FUEL SYSTEM KIT
(Superseded to 84009Y)

$35.99

$

In Stock, only 1 left!

0
