T 282 X - Shindaiwa String Trimmer (SN: T20412001001 - T20412999999) Gear Case Parts Diagram

String Trimmer

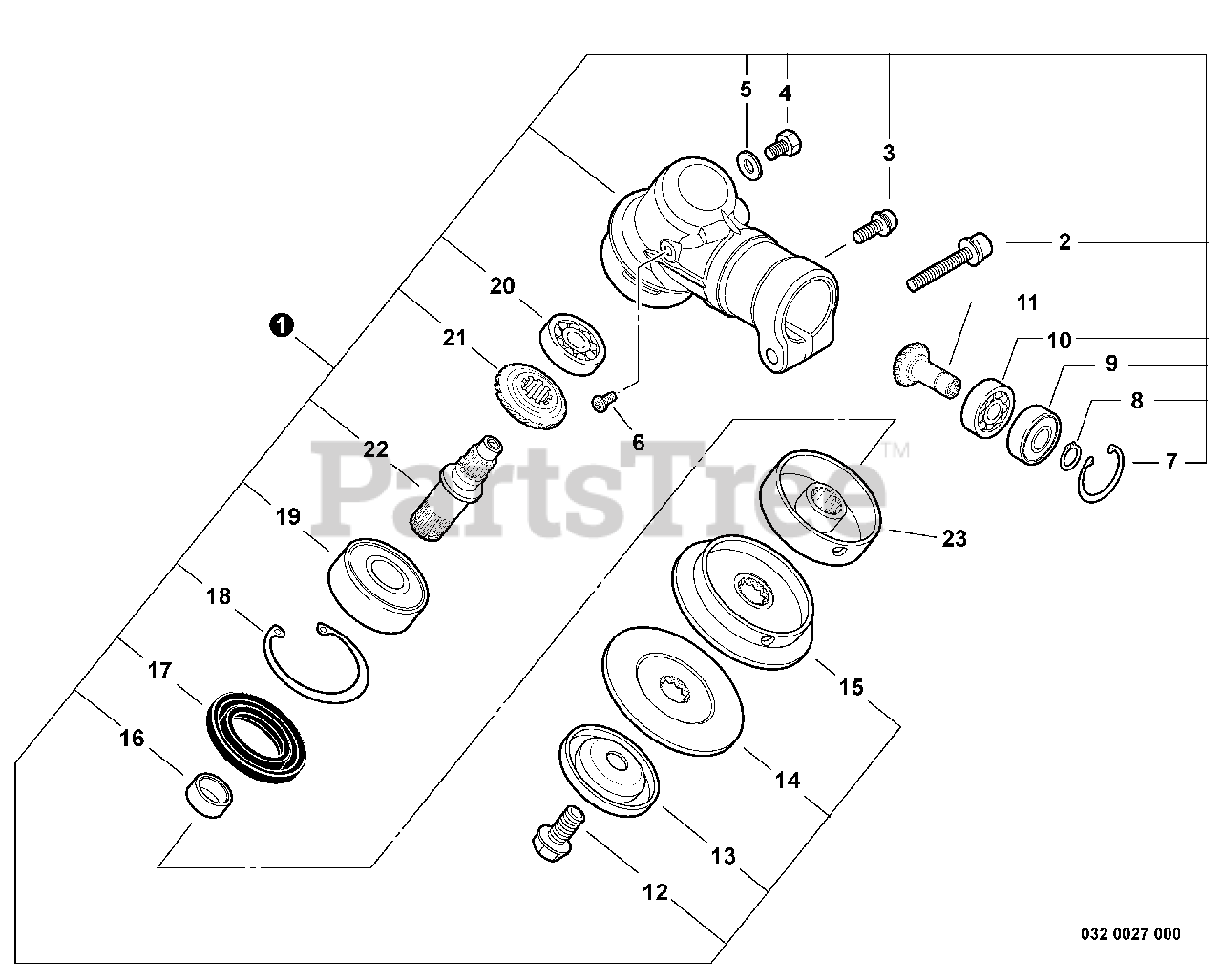

Gear Case Parts Diagram

  • Title

1

Echo P021027350

GEAR CASE ASSY

Note: Includes ITEMS 2-22

$226.99

$

Usually ships in 2-4 days

0

2

Echo V204000450

SCREW - 6X40

$1.99

$

In Stock, only 2 left!

0

3

Echo 90010505010

SCREW - 5X10

$1.49

$

In Stock, Qty 10

0

4

Echo 9103006010

BOLT - 6X10

$0.99

$

In Stock, only 3 left!

0

5

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

6

Echo 9157804006

SCREW - 4X6

$0.99

$

In Stock, Qty 14

0

7

Echo 9242426000

RING, RETAINING - 26

$0.99

$

In Stock, Qty 5

0

8

Echo 9242310000

RING, RETAINING - 10

$0.99

$

Usually ships in 2-4 days

0

9

Echo 9404406000

BEARING, BALL - 6000ZZ

$9.99

$

In Stock, Qty 14

0

10

Echo 90080006000

BEARING, BALL - 6000

$10.99

$

Usually ships in 2-4 days

0

11

Echo V651000490

GEAR - PINION
(Superseded to P100000010)

$66.99

$

In Stock, only 2 left!

0

12

Echo V205000940

BOLT - 8X22

$3.99

$

In Stock, only 1 left!

0

13

Echo C535000730

GUARD

$4.99

$

Usually ships in 2-4 days

0

14

Echo C535000720

ADAPTOR, BLADE - LOWER

$34.99

$

Usually ships in 2-4 days

0

15

Echo C535000710

ADAPTOR, BLADE - UPPER

$40.99

$

Usually ships in 2-4 days

0

16

Echo V356000500

SPACER

$3.99

$

In Stock, Qty 5

0

17

Echo V510000000

SEAL, OIL

$4.49

$

In Stock, only 1 left!

0

18

Echo 9242432000

RING, RETAINING - 32

$0.99

$

In Stock, Qty 5

0

19

Echo 90081006201

BEARING, BALL - 6201

$6.99

$

Usually ships in 2-4 days

0

20

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0

21

Echo V651000480

GEAR - SPUR
(Superseded to P100000010)

$66.99

$

In Stock, only 2 left!

0

22

Echo C534000580

GEAR - SHAFT

$30.99

$

Usually ships in 2-4 days

0

23

Echo C535000700

ADAPTOR, BLADE - UPPER

$23.99

$

Usually ships in 2-4 days

0
