T 282 X - Shindaiwa String Trimmer (Original Version) Outer Tube / Harness Parts Diagram

String Trimmer

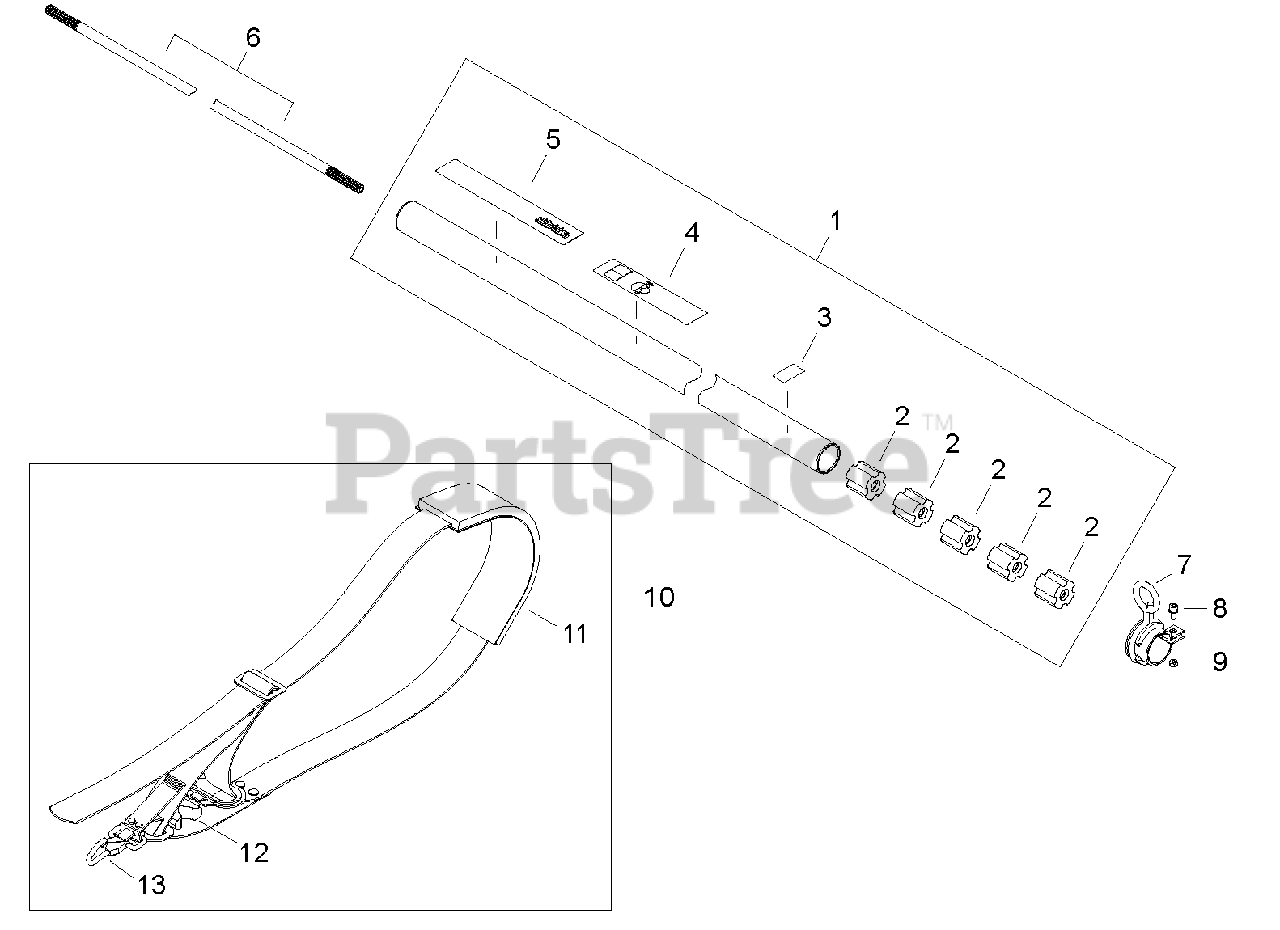

Outer Tube / Harness Parts Diagram

  • Title

1

Echo 60142-98310

MAIN PIPE ASSY
(Superseded to P021027340)

$70.99

$

Usually ships in 2-4 days

0

2

Echo 63049-62120

BUSHING
(Superseded to C501000050)

$3.99

$

In Stock, Qty 20+

0

3

Echo 19401-00269

LABEL - INSTRUCTION
(Superseded to X505002850)

$0.99

$

In Stock, only 3 left!

0

4

Echo 19422-00029

LABEL - CAUTION
(Superseded to X505005890)

$5.49

$

Usually ships in 2-4 days

0

5

Echo 19420-00105

LABEL - SHINDAIWA PROFESSIONAL
(Superseded to X504001100)

$3.99

$

Usually ships in 2-4 days

0

6

Echo 72475-12400

DRIVESHAFT
(Superseded to C504000650)

$43.99

$

Usually ships in 2-4 days

0

7

Echo 22009-12210

HANGER
(Superseded to C063000010)

$10.99

$

Usually ships in 2-4 days

0

8

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

9

Echo 01500-05041

NUT - 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 72007-17202

HARNESS ASSY
(Superseded to C062000330)

$23.99

$

In Stock, only 2 left!

0

11

Echo 22007-17220

PAD, SHOULDER
(Superseded to 72451-17330)

$3.49

$

Usually ships in 2-4 days

0

12

Echo 22011-17261

CUSHION, HARNESS

$7.99

$

Usually ships in 2-4 days

0

13

Echo 37013-67310

HOOK
(Superseded to C649000170)

$3.49

$

Usually ships in 2-4 days

0
