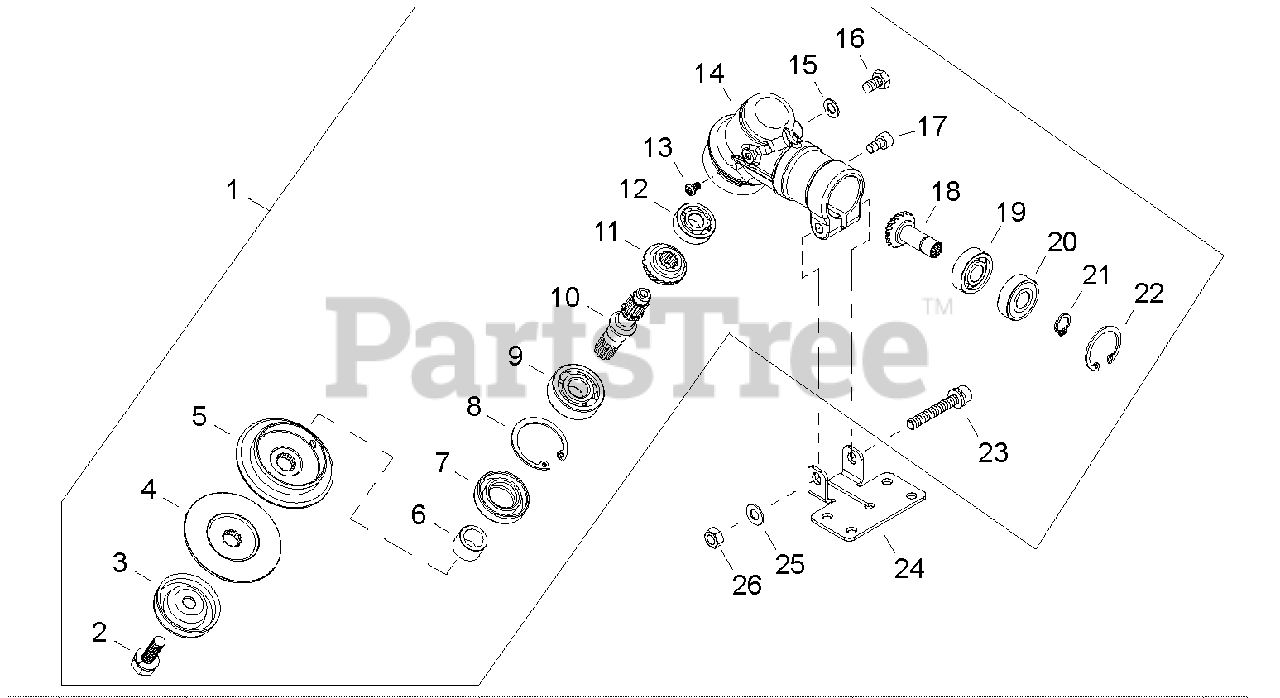

T 282 X - Shindaiwa String Trimmer (Original Version) Gearcase Parts Diagram

String Trimmer

Gearcase Parts Diagram

  • Title
1

Echo 60142-98320

GEAR CASE ASSY
(Superseded to P021027350)

$226.99

$

Usually ships in 2-4 days

0

2

Echo 11031-08220

SCREW - 8X22
(Superseded to V205000940)

$3.99

$

In Stock, only 1 left!

0

3

Echo 63092-63310

GUARD
(Superseded to C535000730)

$4.99

$

Usually ships in 2-4 days

0

4

Echo 63091-63170

ADAPTOR, BLADE - LOWER
(Superseded to C535000720)

$34.99

$

Usually ships in 2-4 days

0

5

Echo 63091-63160

ADAPTOR, BLADE - UPPER
(Superseded to C535000710)

$40.99

$

Usually ships in 2-4 days

0

6

Echo 22000-13230

COLLAR
(Superseded to V356000500)

$3.99

$

In Stock, Qty 5

0

7

Echo 22024-13121

SEAL, OIL
(Superseded to V510000000)

$4.49

$

In Stock, only 1 left!

0

8

Echo 02432-32120

RING, RETAINING - 32
(Superseded to 9242432000)

$0.99

$

In Stock, Qty 5

0

9

1290062015

BEARING, BALL - 6201

$

$

Not available

10

Echo 63091-63130

GEAR - SHAFT
(Superseded to C534000580)

$30.99

$

Usually ships in 2-4 days

0

11

Echo 63091-63140

GEAR - BEVEL
(Superseded to V651000480)

$66.99

$

In Stock, only 2 left!

0

12

Echo 12900-06092

BEARING, BALL - 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

13

Echo 11203-04060

SCREW - 4X6
(Superseded to 9157804006)

$0.99

$

In Stock, Qty 14

0

14

Echo 63091-63110

CASE, GEAR
(Superseded to C531000590)

$46.99

$

In Stock, only 1 left!

0

15

Echo 01610-06080

WASHER - 6
(Superseded to 90060000006)

$0.99

$

In Stock, Qty 16

0

16

Echo 01014-06100

BOLT - 6X10
(Superseded to 9103006010)

$0.99

$

In Stock, only 3 left!

0

17

Echo 01020-05100

SCREW - 5X10
(Superseded to 90010505010)

$1.49

$

In Stock, Qty 10

0

18

Echo 63091-63150

GEAR - BEVEL
(Superseded to V651000490)

$66.99

$

In Stock, only 2 left!

0

19

Echo 12900-60003

BEARING, BALL - 6000
(Superseded to 90080006000)

$10.99

$

Usually ships in 2-4 days

0

20

Echo 12900-60005

BEARING, BALL - 6000Z
(Superseded to 9404406000)

$9.99

$

In Stock, Qty 14

0

21

Echo 02430-10100

RING, RETAINING - 10
(Superseded to 9242310000)

$0.99

$

Usually ships in 2-4 days

0

22

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 5

0

23

Echo 11022-06400

SCREW - 6X40
(Superseded to V204000450)

$1.99

$

In Stock, only 2 left!

0

24

Echo 63076-63310

MOUNTING PLATE, SHIELD
(Superseded to C551000050)

$4.49

$

In Stock, only 1 left!

0

25

Echo 01613-06100

WASHER - 6
(Superseded to 90060300006)

$0.99

$

In Stock, Qty 20+

0

26

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0
