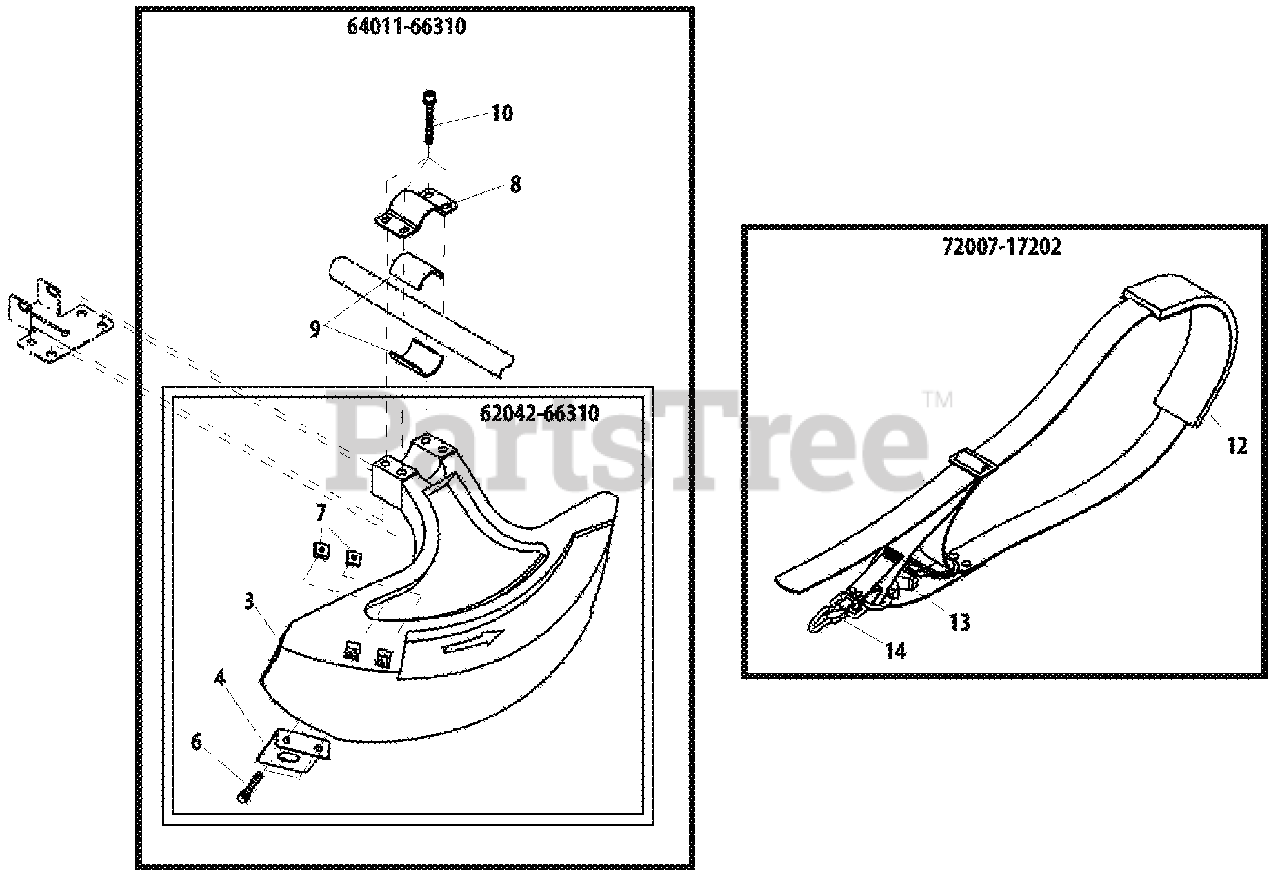

T 272 X - Shindaiwa String Trimmer Harness, Shield Parts Diagram

String Trimmer

Harness, Shield Parts Diagram

  • Title

6401166310

Echo 64011-66310

SHIELD ASSY
(Superseded to 64000-66310)

$55.99

$

Usually ships in 2-4 days

0

6204266310

Echo 62042-66310

SHIELD SUB ASSY
(Superseded to 81090)

$53.99

$

In Stock, only 2 left!

0

3

Echo 62042-66110

SHIELD
(Superseded to 81090)

$53.99

$

In Stock, only 2 left!

0

4

Echo 72480-16121

KNIFE, TRIMMER LINE
(Superseded to C554000040)

$5.49

$

In Stock, Qty 5

0

6

Echo 11020-05220

SCREW - 5X22
(Superseded to V203000620)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 22420-16120

NUT - 5
(Superseded to V263000130)

$0.99

$

Usually ships in 2-4 days

0

8

Echo 72480-16210

CLAMP - UPPER
(Superseded to C551000060)

$1.99

$

In Stock, Qty 8

0

9

Echo 72441-16220

SPACER
(Superseded to V363000160)

$1.99

$

In Stock, Qty 14

0

10

Echo 11022-05450

SCREW - 5X45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

7200717202

Echo C062000330

HARNESS ASSY

$23.99

$

In Stock, only 2 left!

0

12

Echo 72451-17330

PAD
(Superseded to C652000040)

$3.49

$

Usually ships in 2-4 days

0

13

Echo 22011-17261

CUSHION, HARNESS

$7.99

$

Usually ships in 2-4 days

0

14

Echo 37013-67310

HOOK
(Superseded to C649000170)

$3.49

$

Usually ships in 2-4 days

0
