T 272 X - Shindaiwa String Trimmer Fuel Tank Parts Diagram

String Trimmer

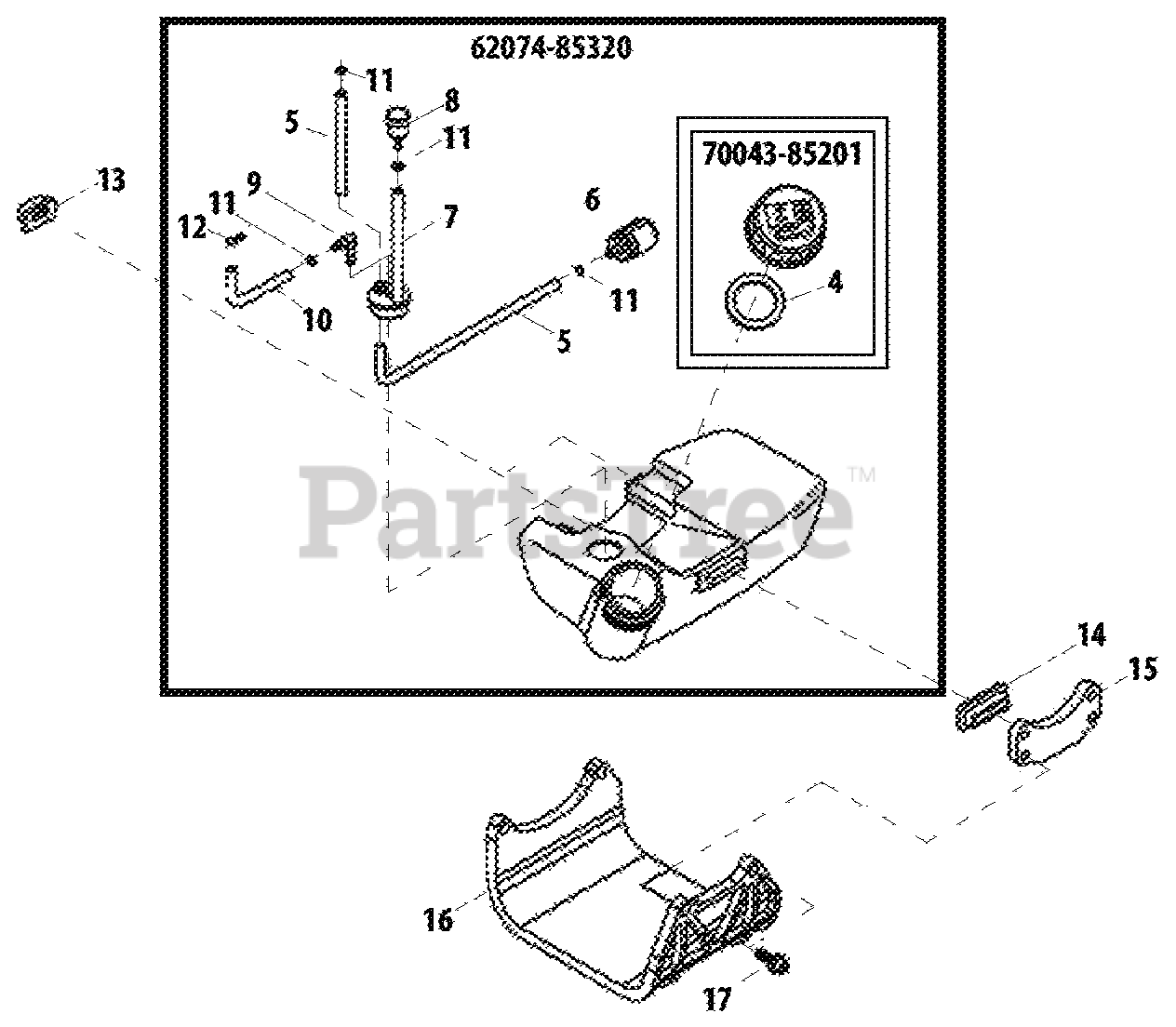

Fuel Tank Parts Diagram

  • Title

6207485320

Echo 62074-85320

FUEL TANK ASSY
(Superseded to 62074-85321)

$

$

Not available

7004385201

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 12

0

4

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 17

0

5

Echo 62023-85310

PIPE - FUEL
(Superseded to V471002610)

$1.99

$

In Stock, only 2 left!

0

6

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

7

Echo 20087-85350

GROMMET
(Superseded to V470001030)

$5.49

$

In Stock, Qty 9

0

8

Echo 20035-85522

VENT, FUEL TANK
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

9

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$2.99

$

In Stock, Qty 17

0

10

Echo 70170-83311

PIPE - RETURN
(Superseded to V471002580)

$1.99

$

In Stock, Qty 20+

0

11

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

12

Echo 37013-85310

CLIP - SPRING
(Superseded to V490000510)

$0.99

$

In Stock, only 1 left!

0

13

Echo 20024-86120

CUSHION, TANK
(Superseded to V420002630)

$1.49

$

In Stock, Qty 12

0

14

Echo 20024-86130

CUSHION, TANK
(Superseded to 62074-85220)

$

$

Not available

15

Echo 62074-85210

BRACKET, FUEL TANK
(Superseded to A393000150)

$6.49

$

Usually ships in 2-4 days

0

16

Echo 62074-85310

GUARD, FUEL TANK
(Superseded to A175000150)

$6.99

$

In Stock, only 3 left!

0

17

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 12

0
