T 272 X - Shindaiwa String Trimmer Fan Cover, Crankcase Parts Diagram

String Trimmer

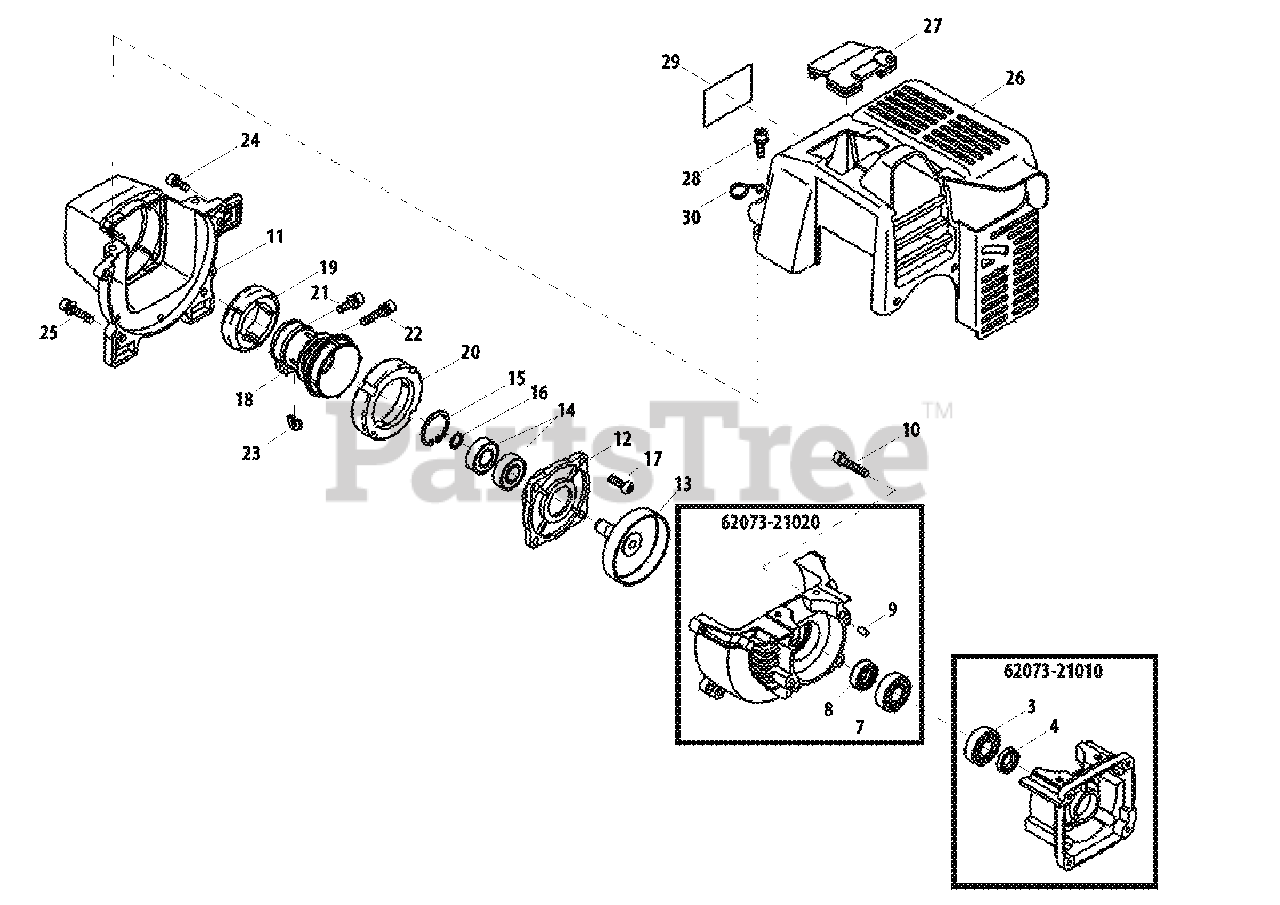

Fan Cover, Crankcase Parts Diagram

  • Title
6207321010

Echo 62073-21010

CRANKCASE ASSY - REAR
(Superseded to P021027910)

$34.99

$

Usually ships in 2-4 days

0

3

Echo 1290062010

BEARING, BALL - 6201C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 11

0

4

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 13

0

6207321020

Echo 62073-21020

CRANKCASE ASSY - FRONT
(Superseded to P021027920)

$24.99

$

In Stock, only 1 left!

0

7

Echo 1290062010

BEARING, BALL - 6201C3
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 11

0

8

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 13

0

9

Echo 12492-50100

PIN - LOCATING

$2.49

$

Usually ships in 2-4 days

0

10

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

11

Echo 70102-31110

CASE, FAN
(Superseded to A172001140)

$45.99

$

Usually ships in 2-4 days

0

12

Echo 20024-31130

CASE, CLUTCH
(Superseded to A570000190)

$14.99

$

Usually ships in 2-4 days

0

13

Echo 72575-98021

DRUM, CLUTCH
(Superseded to A556000760)

$42.99

$

In Stock, only 2 left!

0

14

Echo 02036-06001

BEARING, BALL - 6001DDUC3
(Superseded to 9400236001)

$7.49

$

Usually ships in 2-4 days

0

15

Echo 02432-28120

RING, RETAINING - 28
(Superseded to 9242428000)

$1.49

$

In Stock, Qty 15

0

16

Echo 20000-31140

RING, RETAINING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 12

0

17

Echo 11210-05160

SCREW - 5X20
(Superseded to 9114205016)

$0.99

$

Usually ships in 2-4 days

0

18

Echo 20024-31410

JOINT
(Superseded to 20024-31411)

$24.99

$

Usually ships in 2-4 days

0

19

Echo 20024-31421

CUSHION - FRONT
(Superseded to V423000040)

$2.99

$

In Stock, only 1 left!

0

20

Echo 20024-31431

CUSHION - REAR
(Superseded to V423000050)

$2.99

$

In Stock, only 1 left!

0

21

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

22

Echo 11022-06280

SCREW - 6X28
(Superseded to V204000410)

$

$

Not available

23

Echo 20024-31460

SHIM
(Superseded to V375000350)

$0.99

$

In Stock, Qty 7

0

24

Echo 01020-05180

SCREW - 5X18
(Superseded to 90010505018)

$1.49

$

In Stock, only 2 left!

0

25

Echo 11022-05305

SCREW - 5X30
(Superseded to V203000480)

$3.99

$

In Stock, Qty 5

0

26

Echo 62074-32110

COVER, ENGINE
(Superseded to 62074-32111)

$25.99

$

Usually ships in 2-4 days

0

27

Echo 20024-31231

COVER
(Superseded to A429000100)

$6.99

$

In Stock, only 2 left!

0

28

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

29

Echo 64100-91310

LABEL - TRADE
(Superseded to Discontinued)

$

$

Not available

30

Echo 20024-83152

GUIDE, CABLE
(Superseded to C487000220)

$1.99

$

In Stock, Qty 5

0
