T 270 - Shindaiwa String Trimmer Throttle Lever Parts Diagram

String Trimmer

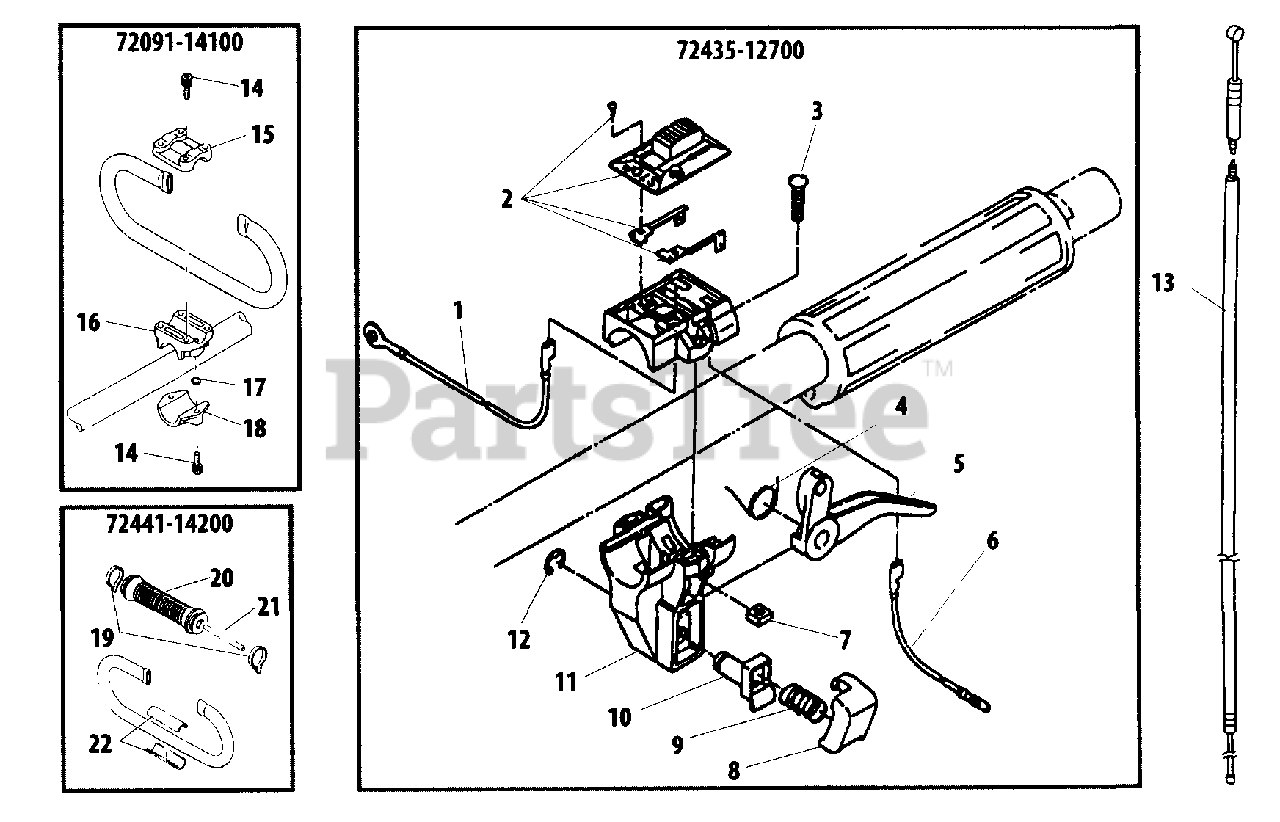

Throttle Lever Parts Diagram

  • Title
72435-12700

Echo 72435-12700

THROTTLE LEVER ASSY
(Superseded to C044000790)

$42.99

$

In Stock, Qty 5

0

1

Echo 72435-12910

LEAD - GROUND
(Superseded to V485001600)

$4.99

$

Usually ships in 2-4 days

0

2

Echo 72435-12820

SWITCH ASSY
(Superseded to A045000290)

$26.99

$

In Stock, only 1 left!

0

3

Echo 11203-05200

SCREW - 5X20
(Superseded to 9157805020)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 72435-12750

SPRING, TRIGGER
(Superseded to V452000480)

$1.99

$

In Stock, Qty 16

0

5

Echo 72435-12730

LEVER, THROTTLE
(Superseded to C450000470)

$10.99

$

In Stock, only 1 left!

0

6

Echo 72435-12920

LEAD - IGNITION
(Superseded to V485001610)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 72435-12950

NUT
(Superseded to V263000160)

$0.99

$

In Stock, Qty 20+

0

8

Echo 72435-12770

BUTTON, THROTTLE LEVER
(Superseded to C461000040)

$3.49

$

Usually ships in 2-4 days

0

9

Echo 72435-12760

SPRING
(Superseded to V450000900)

$3.49

$

In Stock, only 1 left!

0

10

Echo 72435-12740

SHAFT
(Superseded to C451000040)

$1.99

$

In Stock, only 2 left!

0

11

Echo 72435-12720

BODY
(Superseded to 72435-12710)

$39.99

$

Usually ships in 2-4 days

0

12

Echo 72435-12780

RING, RETAINING
(Superseded to V583000150)

$0.99

$

In Stock, Qty 8

0

13

Echo 70036-83110

CABLE, THROTTLE
(Superseded to V430003400)

$6.49

$

In Stock, Qty 20+

0

72091-14100

Echo 72091-14100

HANDLE BRACKET KIT
(Superseded to P021024920)

$26.99

$

Usually ships in 2-4 days

0

14

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

15

Echo 72051-14131

CAP - UPPER

$6.99

$

Usually ships in 2-4 days

0

16

Echo 72051-14110

BRACKET, HANDLE
(Superseded to P021033260)

$28.99

$

Usually ships in 2-4 days

0

17

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

18

Echo 72051-14120

CAP - LOWER
(Superseded to P021033260)

$28.99

$

Usually ships in 2-4 days

0

72441-14200

Echo 72441-14200

HANDLE ASSY
(Superseded to P021032690)

$

$

Not available

19

Echo 22000-14241

CLAMP
(Superseded to V495001420)

$1.99

$

Usually ships in 2-4 days

0

20

Echo 22000-14220

GRIP, HANDLE
(Superseded to C403000370)

$

$

Not available

21

Echo 22000-14230

CORE, GRIP
(Superseded to V352000130)

$1.49

$

In Stock, only 1 left!

0

22

Echo 22042-14260

SPACER, HANDLE

$1.99

$

Usually ships in 2-4 days

0
