T 270 - Shindaiwa String Trimmer Fuel Tank Parts Diagram

String Trimmer

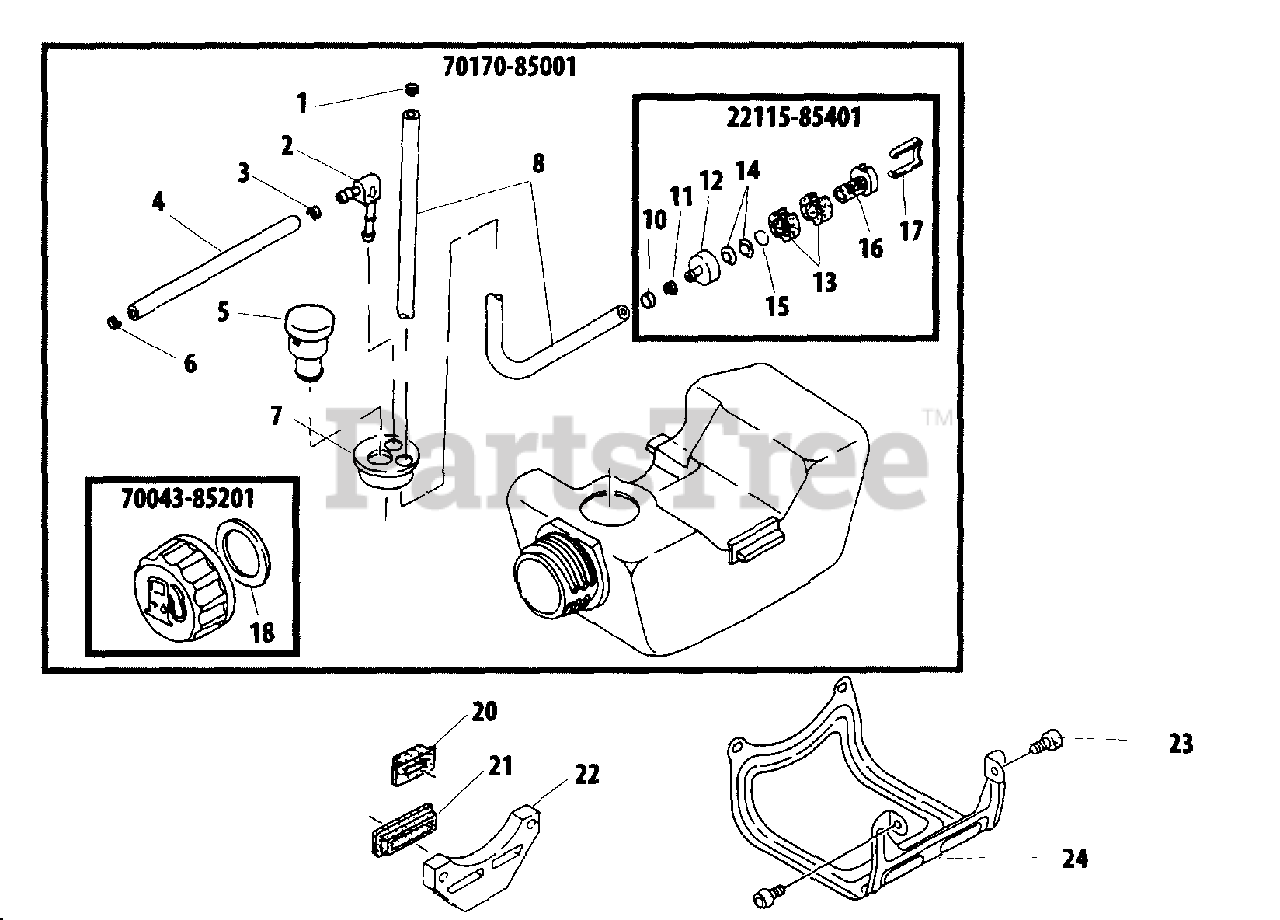

Fuel Tank Parts Diagram

  • Title

70170-85001

Echo 70170-85001

FUEL TANK ASSY
(Superseded to 80221)

$65.99

$

In Stock, only 1 left!

0

1

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

2

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$2.99

$

In Stock, Qty 17

0

3

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

4

Echo 70170-83310

PIPE - RETURN
(Superseded to 70170-83311)

$1.99

$

In Stock, Qty 20+

0

5

Echo 20024-85008

VENT, FUEL TANK
(Superseded to A039000010)

$14.99

$

In Stock, only 1 left!

0

6

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

7

Echo 70170-85571

GROMMET
(Superseded to P021039500)

$

$

Not available

8

Echo 70170-85310

PIPE - FUEL
(Superseded to V471002570)

$2.49

$

In Stock, Qty 20+

0

22115-85401

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

10

Echo 20000-85440

VENT, FUEL TANK
(Superseded to A356000080)

$7.49

$

In Stock, only 4 left!

0

11

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

12

Echo 22128-85410

WEIGHT, FUEL FILTER
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

13

Echo 22128-85421

FILTER, FUEL
(Superseded to A371000000)

$2.99

$

In Stock, Qty 14

0

14

Echo 22118-85421

STRAINER

$

$

Currently unavailable

15

Echo 22128-85480

RING, RETAINING
(Superseded to V583000200)

$9.49

$

In Stock, Qty 20+

0

16

Echo 22128-85470

CASE, FILTER
(Superseded to A372000000)

$

$

Not available

17

Echo 22128-85440

CLIP, FILTER
(Superseded to V490000750)

$9.49

$

In Stock, Qty 20+

0

70043-85201

Echo 70043-85201

CAP ASSY
(Superseded to A033000070)

$3.99

$

In Stock, Qty 12

0

18

Echo 20000-85221

GASKET, CAP
(Superseded to V107000010)

$1.99

$

In Stock, Qty 20+

0

20

Echo 20024-86120

CUSHION, TANK
(Superseded to V420002630)

$1.49

$

In Stock, Qty 12

0

21

Echo 20024-86130

CUSHION, TANK
(Superseded to 62074-85220)

$

$

Not available

22

Echo 20024-86112

BRACKET, FUEL TANK
(Superseded to A393000120)

$5.99

$

Usually ships in 2-4 days

0

23

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

24

Echo 70103-86130

GUARD, FUEL TANK
(Superseded to P021027190)

$35.99

$

In Stock, only 2 left!

0
