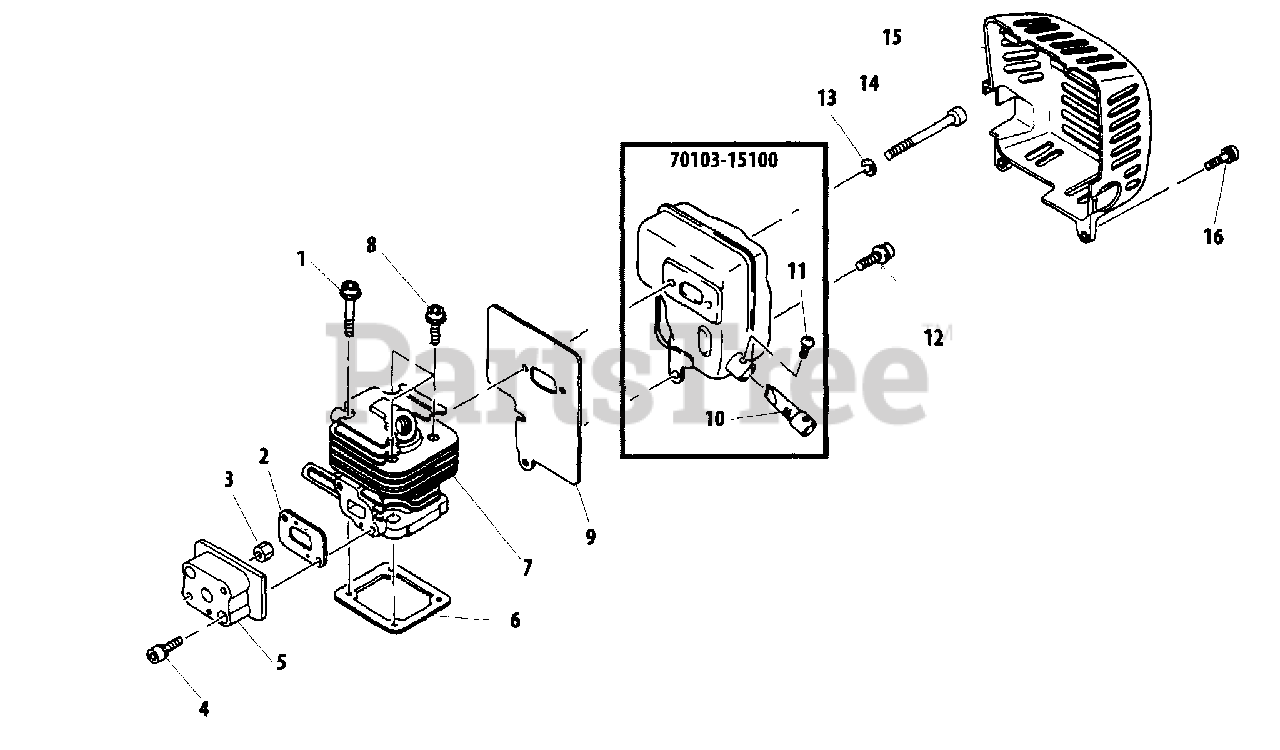

T 270 - Shindaiwa String Trimmer Cylinder Parts Diagram

String Trimmer

Cylinder Parts Diagram

  • Title

1

Echo 11020-05300

SCREW - 5X30
(Superseded to V203000730)

$1.99

$

In Stock, only 3 left!

0

2

Echo 20024-12220

GASKET, INTAKE
(Superseded to 20024-12221)

$0.99

$

In Stock, Qty 5

0

3

Echo 20024-12260

NUT
(Superseded to V263000180)

$0.99

$

In Stock, only 2 left!

0

4

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 12

0

5

Echo 20024-12212

INSULATOR
(Superseded to A200000560)

$16.99

$

In Stock, only 2 left!

0

6

Echo 20024-12120

GASKET, CYLINDER
(Superseded to 62074-12120)

$2.99

$

In Stock, Qty 18

0

7

Echo 20024-12110

CYLINDER
(Superseded to A130001230)

$58.99

$

In Stock, only 1 left!

0

8

Echo 11020-05160

SCREW - 5X16
(Superseded to V203000720)

$0.99

$

In Stock, Qty 20+

0

9

Echo 20024-15210

GASKET, EXHAUST
(Superseded to V104001200)

$5.99

$

In Stock, only 2 left!

0

70103-15100

Echo 70103-15100

MUFFLER ASSY
(Superseded to A030000190)

$33.99

$

In Stock, only 3 left!

0

10

Echo 70103-15150

SCREEN, SPARK ARRESTOR
(Superseded to A310000260)

$7.99

$

Usually ships in 2-4 days

0

11

Echo 01270-03062

SCREW - 3X6
(Superseded to 9137403006)

$0.99

$

In Stock, Qty 10

0

12

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

13

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 01020-05550

SCREW - 5X55
(Superseded to 90010505055)

$1.49

$

In Stock, Qty 15

0

15

Echo 70102-15180

COVER, MUFFLER
(Superseded to A320000650)

$12.99

$

In Stock, only 3 left!

0

16

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0
