T 270 - Shindaiwa String Trimmer Carburetor (Non EPA/CARB) Parts Diagram

String Trimmer

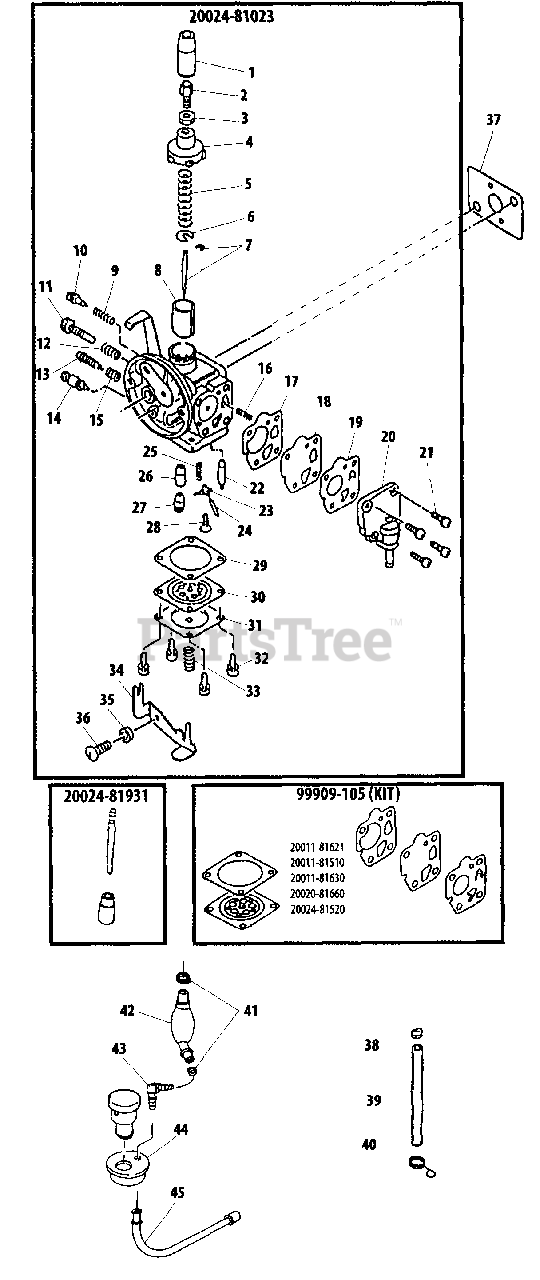

Carburetor (Non EPA/CARB) Parts Diagram

  • Title
20024-81023

Echo 20024-81023

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

1

Echo 72920-81130

GROMMET
(Superseded to 12417411120)

$1.49

$

In Stock, Qty 20+

0

2

Echo 72920-81140

NUT, CABLE ADJUST
(Superseded to 12415813410)

$8.49

$

In Stock, only 1 left!

0

3

Echo 20000-81260

LOCKNUT
(Superseded to 12411105810)

$3.49

$

In Stock, only 2 left!

0

4

Echo 72920-81120

CAP, CARBURETOR
(Superseded to 12411346630)

$6.49

$

In Stock, only 1 left!

0

5

Echo 20011-81140

SPRING
(Superseded to P004000440)

$1.99

$

Usually ships in 2-4 days

0

6

Echo 20000-81150

RETAINER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

7

Echo 20024-81931

JET NEEDLE KIT
(Superseded to P004003410)

$25.99

$

Usually ships in 2-4 days

0

8

Echo 20024-81180

VALVE, THROTTLE
(Superseded to P004002010)

$19.99

$

In Stock, only 1 left!

0

9

Echo 20000-81340

SPRING
(Superseded to P004000890)

$0.99

$

In Stock, Qty 6

0

10

Echo 20000-81330

SCREW, SLOW AIR
(Superseded to P004000880)

$2.99

$

Usually ships in 2-4 days

0

11

Echo 20000-81310

SCREW, IDLE ADJUST
(Superseded to 12415905530)

$2.49

$

In Stock, only 4 left!

0

12

Echo 20000-81320

SPRING
(Superseded to 12433305630)

$0.99

$

In Stock, Qty 7

0

13

Echo 20011-81351

SCREW, IDLE ADJUST
(Superseded to P004001300)

$5.49

$

In Stock, only 4 left!

0

14

Echo 20011-81550

VALVE, OVERFLOW
(Superseded to P004001360)

$10.99

$

In Stock, only 4 left!

0

15

Echo 20011-81360

SCREW, IDLE ADJUST
(Superseded to 12435521330)

$1.99

$

In Stock, Qty 10

0

16

Echo 20040-81680

SPRING
(Superseded to 12435550130)

$1.99

$

In Stock, Qty 5

0

17

Echo 20011-81630

GASKET, METERING
(Superseded to 12436321330)

$1.99

$

In Stock, Qty 7

0

18

Echo 20011-81621

DIAPHRAGM, METERING
(Superseded to P004001430)

$5.99

$

In Stock, only 3 left!

0

19

Echo 20020-81660

VALVE, PUMP
(Superseded to P004001880)

$7.99

$

In Stock, Qty 8

0

20

Echo 20011-81641

BODY, PUMP
(Superseded to P004001440)

$12.99

$

In Stock, only 1 left!

0

21

Echo 20000-81650

SCREW
(Superseded to P004001030)

$0.99

$

In Stock, Qty 20+

0

22

Echo 20000-81441

VALVE, INLET NEEDLE
(Superseded to P004000930)

$10.99

$

In Stock, only 4 left!

0

23

Echo 20011-81450

LEVER, METERING
(Superseded to 20011-81451)

$4.99

$

Usually ships in 2-4 days

0

24

Echo 20011-81460

PIN, METERING LEVER
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

25

Echo 20011-81430

SPRING
(Superseded to 12433121330)

$1.49

$

In Stock, only 2 left!

0

26

Echo 20024-81931

JET NEEDLE KIT
(Superseded to P004003410)

$25.99

$

Usually ships in 2-4 days

0

27

Echo 20011-81420

HOLDER, JET
(Superseded to P004001320)

$3.99

$

Usually ships in 2-4 days

0

28

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

29

Echo 20011-81510

GASKET
(Superseded to 20011-81910)

$2.99

$

In Stock, Qty 12

0

30

Echo 20024-81520

DIAPHRAGM
(Superseded to P004002020)

$20.99

$

In Stock, Qty 10

0

31

Echo 20011-81530

COVER, DIAPHRAGM
(Superseded to 12432421330)

$4.49

$

In Stock, only 1 left!

0

32

Echo 20000-81540

SCREW
(Superseded to P004001000)

$0.99

$

Usually ships in 2-4 days

0

33

Echo 20011-81572

SPRING
(Superseded to P004001390)

$0.99

$

In Stock, Qty 7

0

34

Echo 20035-81560

LEVER, TICKLER
(Superseded to P004002060)

$6.99

$

In Stock, Qty 7

0

35

Echo 20011-81590

COLLAR
(Superseded to P004001420)

$0.99

$

In Stock, only 1 left!

0

36

Echo 20011-81581

SCREW
(Superseded to P004001410)

$0.99

$

In Stock, Qty 5

0

37

Echo 20024-83410

GASKET, INTAKE
(Superseded to V103000850)

$0.99

$

In Stock, Qty 17

0

38

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

39

Echo 20000-83312

PIPE
(Superseded to V471002630)

$0.99

$

In Stock, only 3 left!

0

40

Echo 20024-83320

HOLDER, PIPE
(Superseded to C487000210)

$1.99

$

In Stock, only 2 left!

0

41

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

42

Echo 20024-85360

PIPE - FUEL
(Superseded to V470000980)

$6.99

$

In Stock, only 1 left!

0

43

Echo 22155-33930

JOINT
(Superseded to V186000280)

$3.49

$

In Stock, Qty 10

0

44

Echo 20024-85571

GROMMET
(Superseded to V137000060)

$3.49

$

In Stock, Qty 12

0

45

Echo 20024-85312

PIPE - FUEL
(Superseded to V470000990)

$5.49

$

In Stock, only 1 left!

0

20024-81931

Echo 20024-81931

JET NEEDLE KIT
(Superseded to P004003410)

$25.99

$

Usually ships in 2-4 days

0

99909-105

Echo 99909-105

DIAPHRAGM/GASKET KIT
(Superseded to 70036-98020)

$31.99

$

In Stock, only 1 left!

0
