T 270 - Shindaiwa String Trimmer Carburetor -- EPA & CARB Changes Parts Diagram

String Trimmer

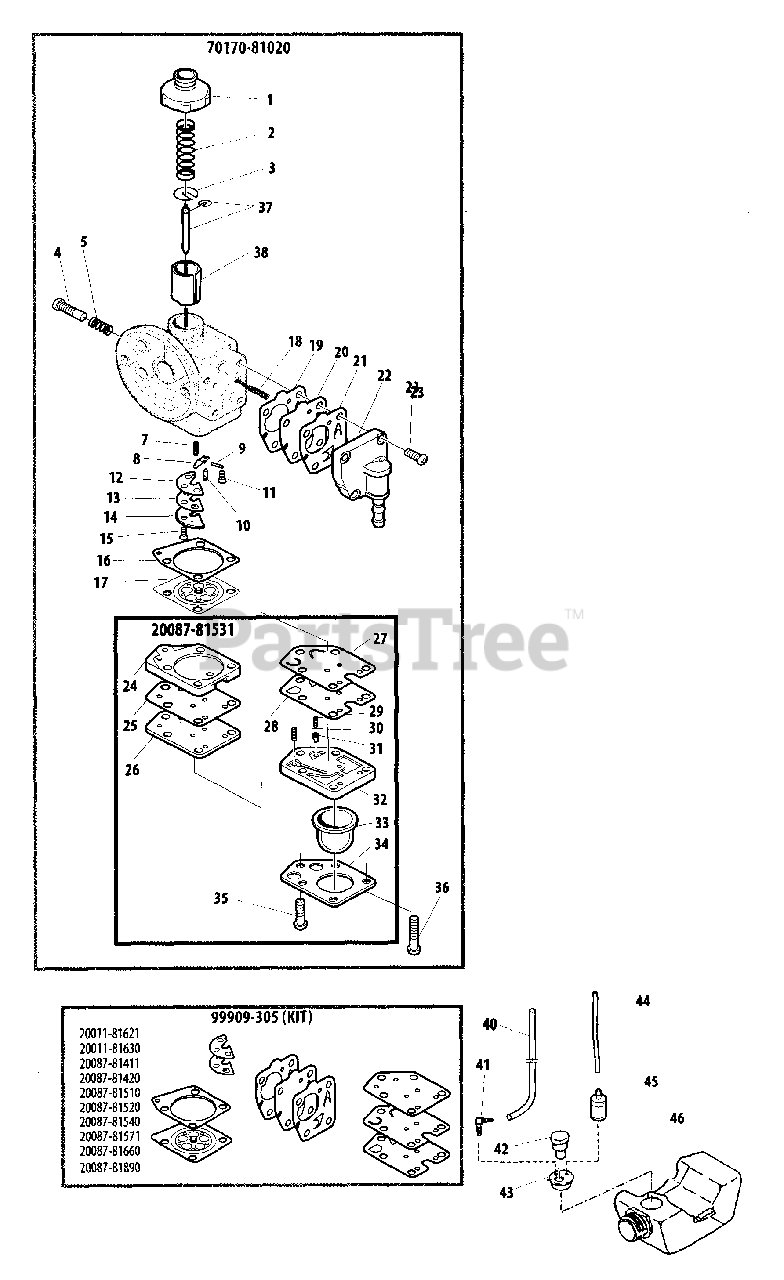

Carburetor -- EPA & CARB Changes Parts Diagram

  • Title

Echo 70170-81020

CARBURETOR
(Superseded to A021002360)

$85.99

$

Usually ships in 2-4 days

0

1

Echo 72920-81120

CAP, CARBURETOR
(Superseded to 12411346630)

$6.49

$

In Stock, only 1 left!

0

2

Echo 20011-81140

SPRING
(Superseded to P004000440)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 20000-81150

RETAINER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

4

Echo 20000-81310

SCREW, IDLE ADJUST
(Superseded to 12415905530)

$2.49

$

In Stock, only 4 left!

0

5

Echo 20000-81320

SPRING
(Superseded to 12433305630)

$0.99

$

In Stock, Qty 7

0

7

Echo 20040-81430

SPRING
(Superseded to 12433149930)

$1.99

$

In Stock, only 1 left!

0

8

Echo 20011-81451

LEVER, METERING
(Superseded to P004001340)

$4.99

$

Usually ships in 2-4 days

0

9

Echo 20011-81460

PIN, METERING LEVER
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

10

Echo 20000-81441

VALVE, INLET NEEDLE
(Superseded to P004000930)

$10.99

$

In Stock, only 4 left!

0

11

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 20087-81420

GASKET
(Superseded to P004002510)

$6.99

$

Usually ships in 2-4 days

0

13

Echo 20087-81411

VALVE, CHECK
(Superseded to P004002500)

$7.99

$

Usually ships in 2-4 days

0

14

Echo 70200-81430

PLATE
(Superseded to P004002950)

$7.49

$

Usually ships in 2-4 days

0

15

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 20087-81510

GASKET, METERING
(Superseded to 12435849930)

$1.49

$

In Stock, Qty 7

0

17

Echo 20087-81520

DIAPHRAGM, METERING
(Superseded to 12434149930)

$23.99

$

In Stock, only 2 left!

0

18

Echo 20011-81680

SPRING
(Superseded to 12436721330)

$1.49

$

In Stock, Qty 6

0

19

Echo 20011-81630

GASKET, METERING
(Superseded to 12436321330)

$1.99

$

In Stock, Qty 7

0

20

Echo 20011-81621

DIAPHRAGM, METERING
(Superseded to P004001430)

$5.99

$

In Stock, only 3 left!

0

21

Echo 20087-81660

VALVE, PUMP
(Superseded to P004002550)

$13.99

$

Usually ships in 2-4 days

0

22

Echo 20087-81640

BODY, PUMP
(Superseded to 20087-81641)

$18.99

$

In Stock, Qty 7

0

23

Echo 20000-81650

SCREW
(Superseded to P004001030)

$0.99

$

In Stock, Qty 20+

0

Echo 20087-81531

PRIMER PUMP ASSY
(Superseded to P004002520)

$43.99

$

Usually ships in 2-4 days

0

24

Echo 20087-81550

BASE, PURGE
(Superseded to 12437949930)

$20.99

$

Usually ships in 2-4 days

0

25

Echo 20087-81890

GASKET
(Superseded to P004002600)

$2.49

$

In Stock, only 2 left!

0

26

Echo 20087-81560

PLATE, PUMP
(Superseded to 12436049930)

$3.49

$

Usually ships in 2-4 days

0

27

Echo 20087-81571

DIAPHRAGM
(Superseded to P004002530)

$10.99

$

Usually ships in 2-4 days

0

28

Echo 20087-81540

GASKET
(Superseded to 12435949930)

$2.49

$

Usually ships in 2-4 days

0

29

Echo 20087-81851

SPRING, RETURN
(Superseded to P004002580)

$2.49

$

In Stock, only 2 left!

0

30

Echo 20087-81870

SPRING
(Superseded to 12435550130)

$1.99

$

In Stock, Qty 5

0

31

Echo 20087-81861

VALVE
(Superseded to P004002590)

$18.99

$

Usually ships in 2-4 days

0

32

Echo 20087-81811

COVER, PUMP
(Superseded to P004002570)

$7.49

$

In Stock, only 1 left!

0

33

Echo 20087-81820

BULB, PURGE
(Superseded to 12438012710)

$9.99

$

In Stock, only 1 left!

0

34

Echo 20087-81830

PLATE
(Superseded to 12434249930)

$3.49

$

Usually ships in 2-4 days

0

35

Echo 20087-81840

SCREW
(Superseded to 12431049930)

$0.99

$

Usually ships in 2-4 days

0

36

Echo 20087-81880

SCREW
(Superseded to 90024103020)

$0.99

$

Usually ships in 2-4 days

0

37

Echo 70170-81170

NEEDLE, JET
(Superseded to P004002920)

$11.99

$

Usually ships in 2-4 days

0

38

Echo 70170-81180

SLIDE VALVE
(Superseded to P004002930)

$30.99

$

In Stock, only 2 left!

0

40

Echo 70170-83310

PIPE - RETURN
(Superseded to 70170-83311)

$1.99

$

In Stock, Qty 20+

0

41

Echo 20087-85340

CONNECTOR, PIPE
(Superseded to V186000270)

$2.99

$

In Stock, Qty 17

0

42

Echo 20024-85008

VENT, FUEL TANK
(Superseded to A039000010)

$14.99

$

In Stock, only 1 left!

0

43

Echo 70170-85571

GROMMET
(Superseded to P021039500)

$

$

Not available

44

Echo 70170-85310

PIPE - FUEL
(Superseded to V471002570)

$2.49

$

In Stock, Qty 20+

0

45

Echo 22115-85401

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

46

Echo 20024-85113

TANK, FUEL
(Superseded to A350001220)

$15.99

$

In Stock, only 2 left!

0

Echo 99909-305

DIAPHRAGM/GASKET KIT
(Superseded to 70244-98050)

$62.99

$

In Stock, only 1 left!

0
