T 27 - Shindaiwa String Trimmer Piston, Clutch Shoe Parts Diagram

String Trimmer

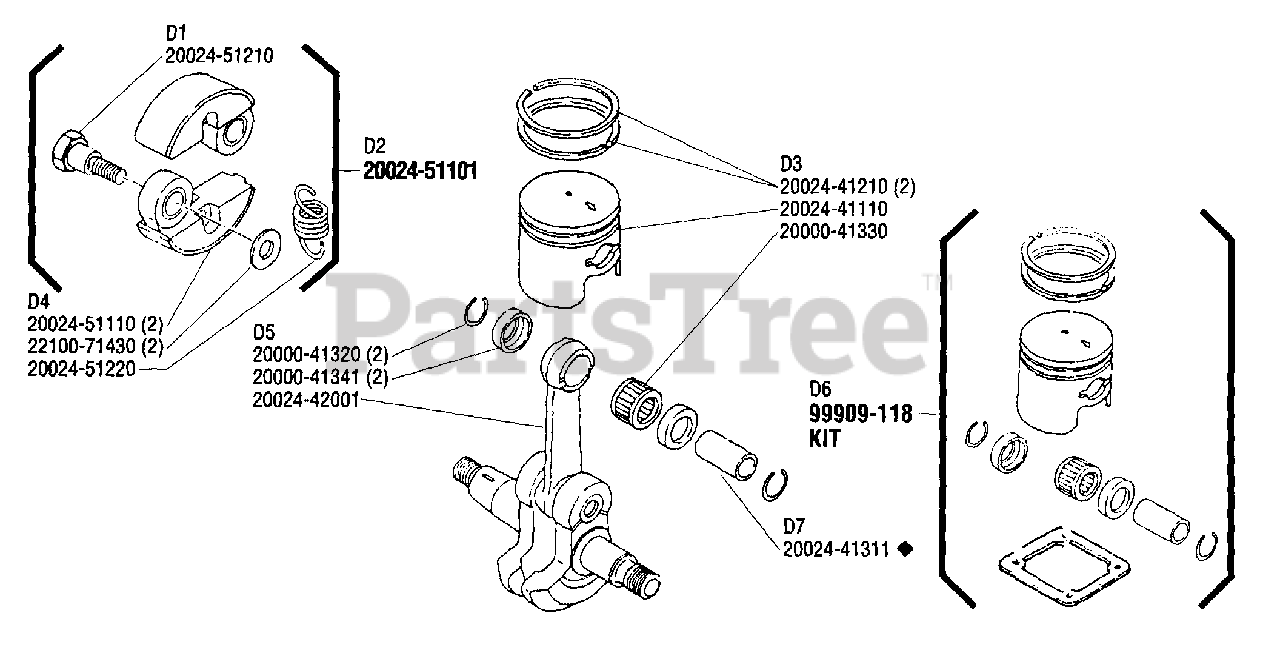

Piston, Clutch Shoe Parts Diagram

  • Title
D2-20024-51101

Echo 20024-51101

CLUTCH ASSY
(Superseded to 20024-51102)

$

$

Not available

D1-20024-51210

Echo 20024-51210

BOLT
(Superseded to A557000090)

$2.49

$

Usually ships in 2-4 days

0

D4-20024-51110

$

$

Currently unavailable

D4-20024-51220

Echo 20024-51220

SPRING
(Superseded to A566000100)

$1.99

$

In Stock, only 2 left!

0

D4-22100-71430

Echo 22100-71430

WASHER
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

D3-20000-41330

Echo 20000-41330

BEARING, NEEDLE
(Superseded to 37019-41230)

$6.49

$

In Stock, only 2 left!

0

D3-20024-41110

Echo 20024-41110

PISTON
(Superseded to A100000610)

$29.99

$

Usually ships in 2-4 days

0

D3-20024-41210

Echo 20024-41210

PISTON RING
(Superseded to A101000330)

$4.99

$

In Stock, Qty 5

0

D5-20000-41320

Echo 20000-41320

SNAP RING
(Superseded to V580000090)

$5.49

$

In Stock, only 2 left!

0

D5-20000-41341

Echo 20000-41341

WASHER, THRUST
(Superseded to 37019-41240)

$2.49

$

In Stock, Qty 10

0

D5-20024-42001

Echo 20024-42001

CRANKSHAFT ASSY
(Superseded to A011000770)

$62.99

$

Usually ships in 2-4 days

0

D6-99909-118

Echo 99909-118

PISTON ASSY
(Superseded to 70244-98040)

$61.99

$

In Stock, only 2 left!

0

D7-20024-41311

Echo 20024-41311

PISTON PIN
(Superseded to V607000020)

Note: PR 82

$4.49

$

Usually ships in 2-4 days

0
