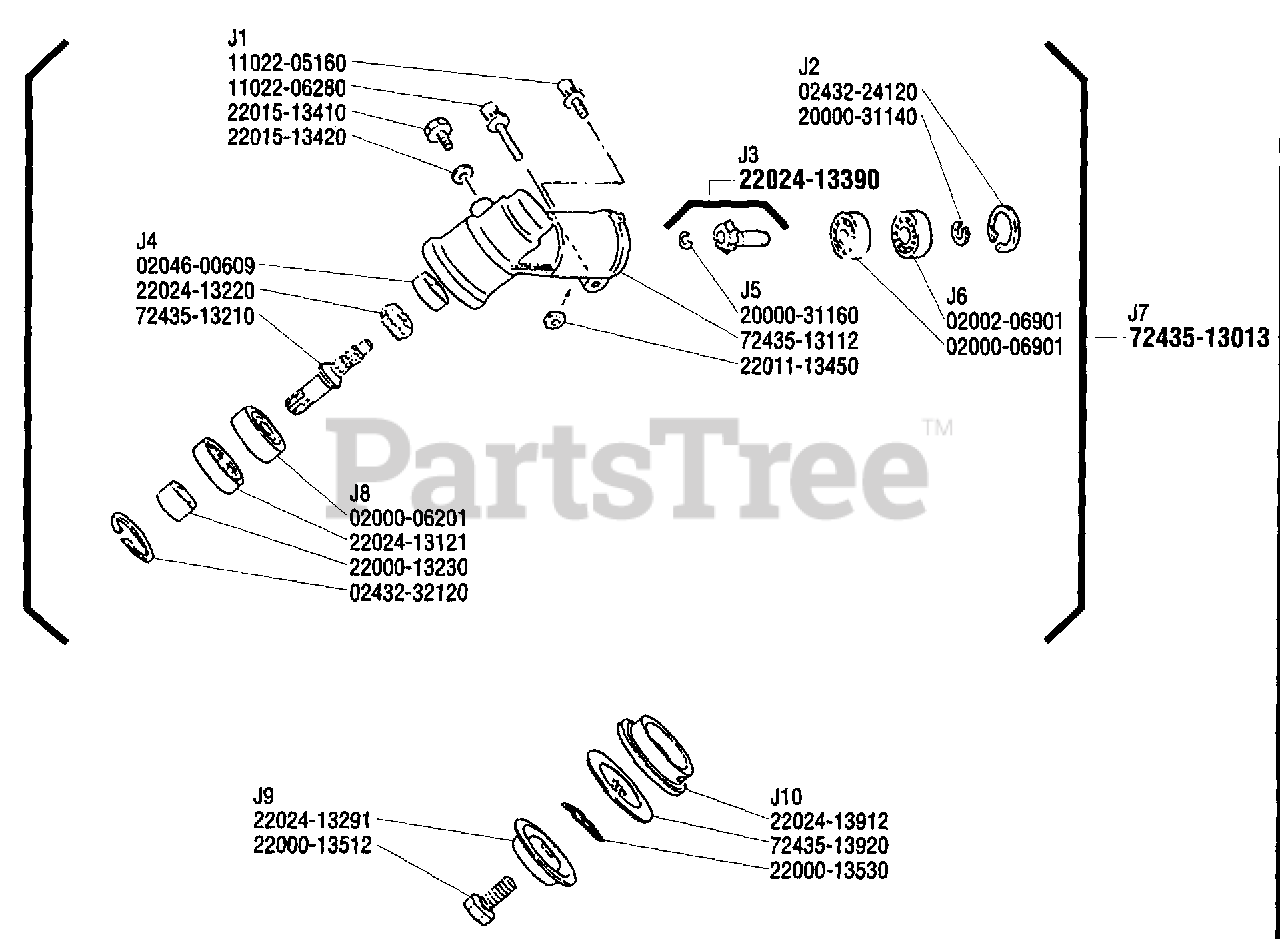

T 27 - Shindaiwa String Trimmer Gearcase Parts Diagram

String Trimmer

Gearcase Parts Diagram

  • Title
J7-72435-13013

Echo 72435-13013

GEARCASE ASSY
(Superseded to 72435-13014)

$237.99

$

Usually ships in 2-4 days

0

J1-11022-05160

Echo 11022-05160

BOLT SPW
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

J1-11022-06280

Echo 11022-06280

BOLT
(Superseded to V204000410)

$

$

Not available

J1-22015-13410

Echo 22015-13410

BOLT
(Superseded to V206000250)

$1.49

$

In Stock, Qty 19

0

J1-22015-13420

Echo 22015-13420

GASKET
(Superseded to V307000230)

$0.99

$

In Stock, only 4 left!

0

J2-02432-24120

Echo 02432-24120

SNAP RING
(Superseded to 9242424000)

$0.99

$

In Stock, Qty 5

0

J2-20000-31140

Echo 20000-31140

SNAP RING
(Superseded to V583000170)

$1.49

$

In Stock, Qty 6

0

J3-22024-13390

Echo 22024-13390

PINION KIT
(Superseded to 22024-13391)

$22.99

$

In Stock, Qty 18

0

J5-20000-31160

Echo 20000-31160

SNAP RING
(Superseded to V582000110)

$0.99

$

Usually ships in 2-4 days

0

J4-02046-00609

Echo 02046-00609

BEARING, BALL
(Superseded to 9402840609)

$12.99

$

Usually ships in 2-4 days

0

J4-22024-13220

Echo 22024-13220

BEVEL GEAR
(Superseded to V651000450)

$19.99

$

In Stock, Qty 15

0

J4-72435-13210

Echo 72435-13210

GEAR SHAFT
(Superseded to C534000570)

$24.99

$

Usually ships in 2-4 days

0

J5-22011-13450

Echo 22011-13450

SHIM
(Superseded to V340000280)

$0.99

$

In Stock, Qty 6

0

J5-72435-13112

Echo 72435-13112

GEARCASE
(Superseded to 22024-13112)

$24.99

$

Usually ships in 2-4 days

0

J6-02000-06901

Echo 02000-06901

BEARING, BALL
(Superseded to 90085506901)

$15.99

$

In Stock, only 1 left!

0

J6-02002-06901

Echo 02002-06901

BEARING, BALL
(Superseded to 90085906901)

$21.99

$

Usually ships in 2-4 days

0

J8-02000-06201

Echo 02000-06201

BEARING, BALL
(Superseded to 90081006201)

$6.99

$

Usually ships in 2-4 days

0

J8-02432-32120

Echo 02432-32120

SNAP RING
(Superseded to 9242432000)

$0.99

$

In Stock, Qty 5

0

J8-22000-13230

Echo 22000-13230

COLLAR, GEAR SHAFT
(Superseded to V356000500)

$3.99

$

In Stock, Qty 5

0

J8-22024-13121

Echo 22024-13121

SEAL, OIL
(Superseded to V510000000)

$4.49

$

In Stock, only 1 left!

0

J9-22000-13512

Echo 22000-13512

BOLT
(Superseded to V205000480)

$2.99

$

In Stock, Qty 19

0

J9-22024-13291

Echo 22024-13291

BOLT, GUARD
(Superseded to C535000630)

$4.99

$

In Stock, only 1 left!

0

J10-22000-13530

Echo 22000-13530

SLIDE PIN
(Superseded to V641000150)

$2.49

$

In Stock, only 4 left!

0

J10-22024-13912

Echo 22024-13912

HOLDER A
(Superseded to C535000640)

$28.99

$

In Stock, only 1 left!

0

J10-72435-13920

Echo 72435-13920

HOLDER B
(Superseded to 63000-63170)

$25.99

$

In Stock, only 1 left!

0
