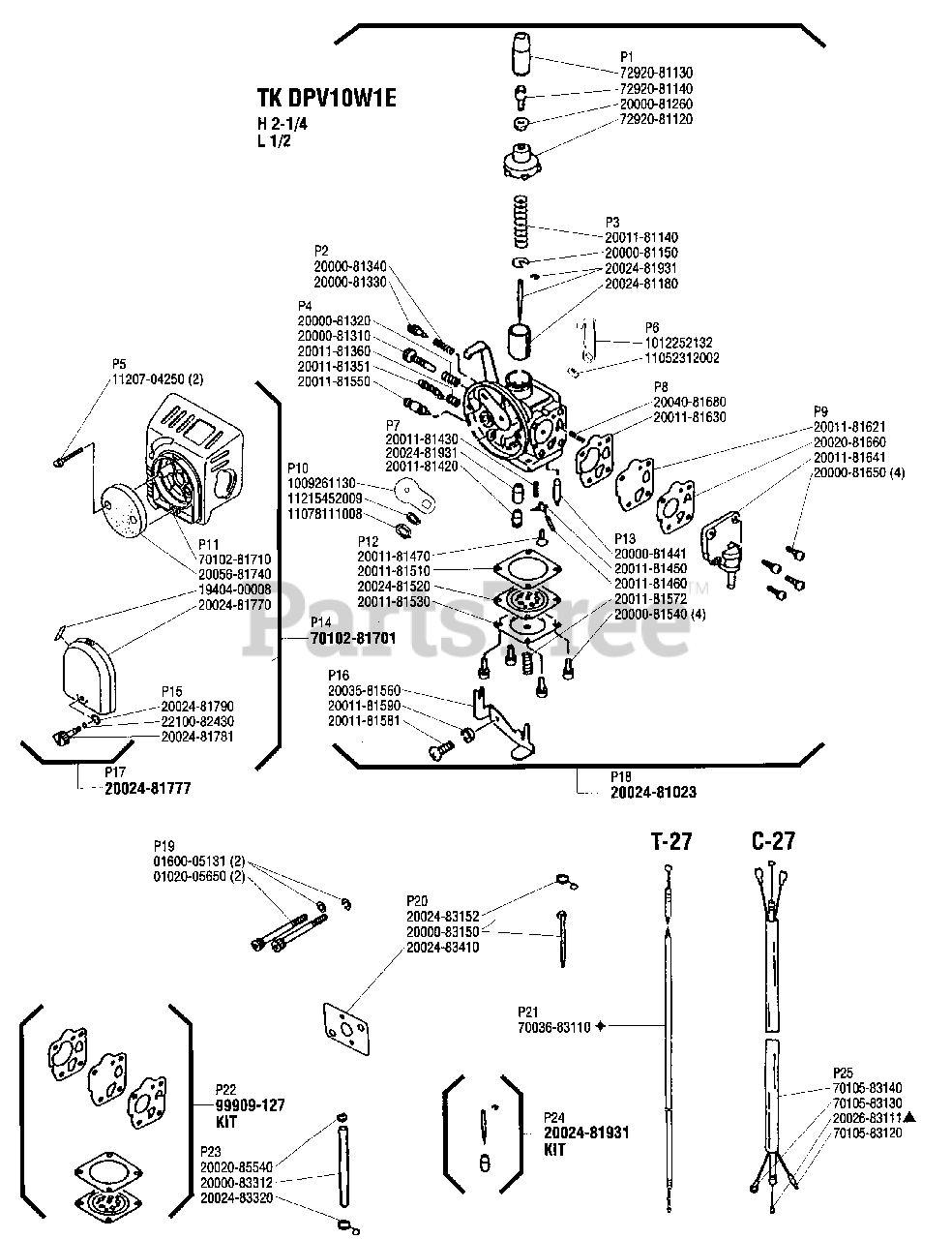

T 27 - Shindaiwa String Trimmer Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

P14-70102-81701

Echo 70102-81701

CLEANER ASSY, USE COMPONENTS
(Superseded to Discontinued)

$

$

Not available

P5-11207-04250

Echo 11207-04250

SCREW
(Superseded to 9157704025)

$0.99

$

In Stock, Qty 20+

0

P11-20056-81740

Echo 20056-81740

FILTER
(Superseded to A226000650)

$1.99

$

In Stock, Qty 20+

0

P11-70102-81710

Echo 70102-81710

CLEANER BODY
(Superseded to A225000490)

$8.99

$

In Stock, Qty 12

0

P17-20024-81777

Echo 20024-81777

COVER ASSY
(Superseded to 20024-81800)

$9.99

$

In Stock, only 1 left!

0

P11-19404-00008

Echo 19404-00008

LABEL, CHOKE
(Superseded to X506000130)

$0.99

$

In Stock, Qty 20+

0

P11-20024-81770

Echo 20024-81770

COVER, CLEANER
(Superseded to A232000780)

$3.99

$

In Stock, only 1 left!

0

P15-20024-81781

Echo 20024-81781

KNOB
(Superseded to 20115-81780)

$3.99

$

In Stock, only 1 left!

0

P15-20024-81790

Echo 20024-81790

WASHER
(Superseded to V347000030)

$0.99

$

In Stock, Qty 9

0

P15-22100-82430

Echo 22100-82430

O-RING
(Superseded to V581000200)

$0.99

$

In Stock, Qty 5

0

P18-20024-81023

Echo 20024-81023

CARBURETOR ASSY
(Superseded to Discontinued)

$

$

Not available

P1-20000-81260

Echo 20000-81260

NUT
(Superseded to 12411105810)

$3.49

$

In Stock, only 2 left!

0

P1-72920-81120

Echo 72920-81120

BODY CAP
(Superseded to 12411346630)

$6.49

$

In Stock, only 1 left!

0

P1-72920-81130

Echo 72920-81130

ADJUSTER CAP
(Superseded to 12417411120)

$1.49

$

In Stock, Qty 20+

0

P1-72920-81140

Echo 72920-81140

CABLE ADJUSTER
(Superseded to 12415813410)

$8.49

$

In Stock, only 1 left!

0

P2-20000-81330

Echo 20000-81330

SCREW, SLOW AIR
(Superseded to P004000880)

$2.99

$

Usually ships in 2-4 days

0

P2-20000-81340

Echo 20000-81340

SPRING
(Superseded to P004000890)

$0.99

$

In Stock, Qty 6

0

P3-20000-81150

Echo 20000-81150

SPRING RECEIVER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

P3-20011-81140

Echo 20011-81140

SPRING, THROTTLE
(Superseded to P004000440)

$1.99

$

Usually ships in 2-4 days

0

P3-20024-81180

Echo 20024-81180

THROTTLE VALVE
(Superseded to P004002010)

$19.99

$

In Stock, only 1 left!

0

P3-20024-81931

Echo 20024-81931

JET NEEDLE KIT
(Superseded to P004003410)

$25.99

$

Usually ships in 2-4 days

0

P4-20000-81310

Echo 20000-81310

SCREW, SLOW STOP
(Superseded to 12415905530)

$2.49

$

In Stock, only 4 left!

0

P4-20000-81320

Echo 20000-81320

SPRING
(Superseded to 12433305630)

$0.99

$

In Stock, Qty 7

0

P4-20011-81351

Echo 20011-81351

SCREW, MAIN ADJUST
(Superseded to P004001300)

$5.49

$

In Stock, only 4 left!

0

P4-20011-81360

Echo 20011-81360

SPRING
(Superseded to 12435521330)

$1.99

$

In Stock, Qty 10

0

P4-20011-81550

Echo 20011-81550

VALVE, OVERFLOW
(Superseded to P004001360)

$10.99

$

In Stock, only 4 left!

0

P6-1012252132

Echo 1012252132

CHOKE LEVER
(Superseded to 20024-81940)

$4.49

$

In Stock, Qty 6

0

P6-11052312002

Echo 11052312002

CHOKE SHAFT
(Superseded to 20000-81220)

$4.49

$

Usually ships in 2-4 days

0

P7-20011-81420

Echo 20011-81420

HOLDER
(Superseded to P004001320)

$3.99

$

Usually ships in 2-4 days

0

P7-20011-81430

Echo 20011-81430

SPRING
(Superseded to 12433121330)

$1.49

$

In Stock, only 2 left!

0

P7-20024-81931

Echo 20024-81931

JET NEEDLE KIT
(Superseded to P004003410)

$25.99

$

Usually ships in 2-4 days

0

P8-20011-81630

Echo 20011-81630

GASKET
(Superseded to 12436321330)

$1.99

$

In Stock, Qty 7

0

P8-20040-81680

Echo 20040-81680

SPRING
(Superseded to 12435550130)

$1.99

$

In Stock, Qty 5

0

P9-20000-81650

Echo 20000-81650

SCREW
(Superseded to P004001030)

$0.99

$

In Stock, Qty 20+

0

P9-20011-81621

Echo 20011-81621

DIAPHRAGM
(Superseded to P004001430)

$5.99

$

In Stock, only 3 left!

0

P9-20011-81641

Echo 20011-81641

PUMP BODY W/ CHECK BALL
(Superseded to P004001440)

$12.99

$

In Stock, only 1 left!

0

P9-20020-81660

Echo 20020-81660

PUMP VALVE
(Superseded to P004001880)

$7.99

$

In Stock, Qty 8

0

P10-1009261130

Echo 1009261130

CHOKE PLATE, USE 20011-81240
(Superseded to 20011-81240)

$3.49

$

In Stock, only 2 left!

0

P10-11078111008

Echo 11078111008

NUT
(Superseded to 20000-81260)

$3.49

$

In Stock, only 2 left!

0

P10-11215452009

Echo 11215452009

WASHER, SPRING
(Superseded to 20000-81250)

$0.99

$

In Stock, only 3 left!

0

P12-20011-81470

Echo 20011-81470

SCREW
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

P12-20011-81510

Echo 20011-81510

GASKET
(Superseded to 20011-81910)

$2.99

$

In Stock, Qty 12

0

P12-20011-81530

Echo 20011-81530

COVER
(Superseded to 12432421330)

$4.49

$

In Stock, only 1 left!

0

P12-20024-81520

Echo 20024-81520

DIAPHRAGM
(Superseded to P004002020)

$20.99

$

In Stock, Qty 10

0

P13-20000-81441

Echo 20000-81441

NEEDLE, VALVE
(Superseded to P004000930)

$10.99

$

In Stock, only 4 left!

0

P13-20000-81540

Echo 20000-81540

SCREW
(Superseded to P004001000)

$0.99

$

Usually ships in 2-4 days

0

P13-20011-81450

Echo 20011-81450

LEVER
(Superseded to 20011-81451)

$4.99

$

Usually ships in 2-4 days

0

P13-20011-81460

Echo 20011-81460

PIN
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

P13-20011-81572

Echo 20011-81572

SPRING
(Superseded to P004001390)

$0.99

$

In Stock, Qty 7

0

P16-20011-81581

Echo 20011-81581

SCREW
(Superseded to P004001410)

$0.99

$

In Stock, Qty 5

0

P16-20011-81590

Echo 20011-81590

COLLAR
(Superseded to P004001420)

$0.99

$

In Stock, only 1 left!

0

P16-20035-81560

Echo 20035-81560

TICKLER LEVER
(Superseded to P004002060)

$6.99

$

In Stock, Qty 7

0

P19-01020-05650

Echo 01020-05650

BOLT
(Superseded to 9110005065)

$0.99

$

In Stock, Qty 20+

0

P19-01600-05131

Echo 01600-05131

WASHER, SPRING
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 9

0

P20-20000-83150

Echo 20000-83150

CLAMP
(Superseded to V495001450)

$0.99

$

Usually ships in 2-4 days

0

P20-20024-83152

Echo 20024-83152

CABLE HOLDER
(Superseded to C487000220)

$1.99

$

In Stock, Qty 5

0

P20-20024-83410

Echo 20024-83410

GASKET, CARBURETOR
(Superseded to V103000850)

$0.99

$

In Stock, Qty 17

0

P21-70036-83110

Echo 70036-83110

THROTTLE CABLE
(Superseded to V430003400)

Note: For T-27

$6.49

$

In Stock, Qty 20+

0

P22-99909-127

Echo 99909-127

GASKET & DIAPHRAGM KIT
(Superseded to 99909-105)

$31.99

$

In Stock, only 1 left!

0

P23-20000-83312

Echo 20000-83312

PIPE
(Superseded to V471002630)

$0.99

$

In Stock, only 3 left!

0

P23-20020-85540

Echo 20020-85540

CLIP
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

P23-20024-83320

Echo 20024-83320

HOLDER, PIPE
(Superseded to C487000210)

$1.99

$

In Stock, only 2 left!

0

P24-20024-81931

Echo 20024-81931

JET NEEDLE KIT
(Superseded to P004003410)

$25.99

$

Usually ships in 2-4 days

0

P25-20026-83111

Echo 20026-83111

THROTTLE CABLE
(Superseded to V430002790)

Note: For C-27

$7.49

$

In Stock, only 1 left!

0

P25-70105-83120

Echo 70105-83120

WIRE, RED
(Superseded to V485001520)

$2.99

$

Usually ships in 2-4 days

0

P25-70105-83130

Echo 70105-83130

WIRE, BLACK
(Superseded to V485001530)

$2.99

$

Usually ships in 2-4 days

0

P25-70105-83140

Echo 70105-83140

TUBE
(Superseded to V475004680)

$1.99

$

Usually ships in 2-4 days

0
