T 262 X - Shindaiwa String Trimmer (SN: T95315001001 - T95315999999) ENGINE Parts Diagram

String Trimmer

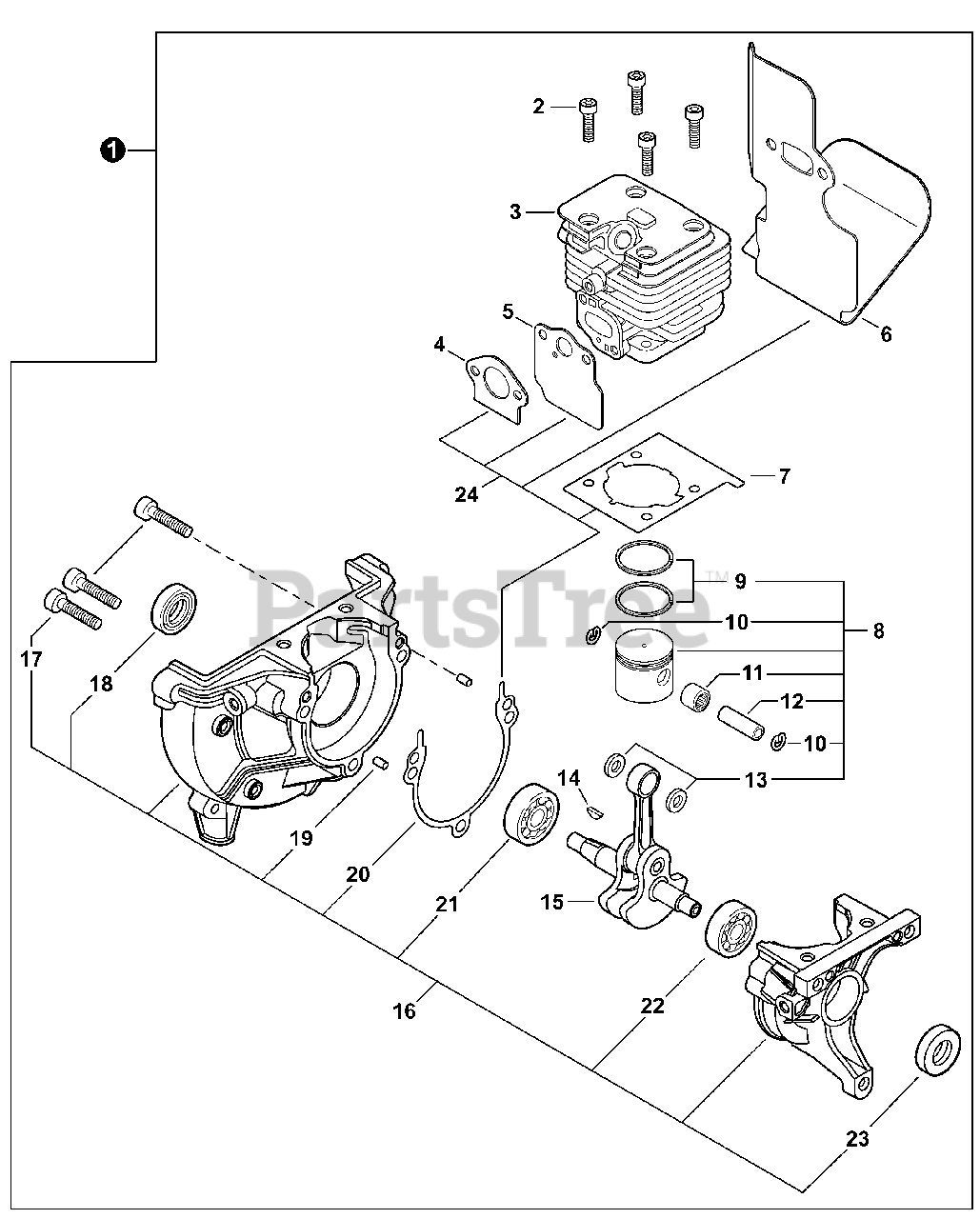

ENGINE Parts Diagram

  • Title

1

Echo SB1118

SHORT BLOCK

Note: Includes Items 2-23

$171.99

$

In Stock, Qty 7

0

2

Echo V805000210

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 16

0

3

Echo A130002330

CYLINDER

$146.99

$

In Stock, only 1 left!

0

4

Echo V103001900

GASKET, INTAKE

$1.99

$

Usually ships in 2-4 days

0

5

Echo V103001890

HEAT SHIELD, INTAKE

$1.49

$

In Stock, Qty 20+

0

6

Echo V104002310

HEAT SHIELD, EXHAUST

$6.49

$

In Stock, only 3 left!

0

7

Echo V100000840

GASKET, CYLINDER

$2.99

$

In Stock, Qty 9

0

8

Echo P021050840

PISTON KIT

Note: Includes Items 9-13

$73.99

$

Usually ships in 2-4 days

0

9

Echo A101000010

RING, PISTON

$8.49

$

In Stock, Qty 10

0

10

Echo 10001503931

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

11

Echo V554000020

BEARING, NEEDLE 9

$10.99

$

Usually ships in 2-4 days

0

12

Echo 10001335430

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

13

Echo 10001453630

WASHER, THRUST 9×12×15×3

$5.99

$

Usually ships in 2-4 days

0

14

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 14

0

15

Echo A011001460

CRANKSHAFT ASSY

$118.99

$

Usually ships in 2-4 days

0

16

Echo P021050850

CRANKCASE KIT

Note: Includes Items 17-23

$121.99

$

Usually ships in 2-4 days

0

17

Echo V805000220

BOLT, TORX 5×25

$1.49

$

Usually ships in 2-4 days

0

18

Echo V503000040

SEAL, OIL 10

$5.49

$

In Stock, only 2 left!

0

19

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

20

Echo V102000300

GASKET, CRANKCASE

$1.99

$

In Stock, only 4 left!

0

21

Echo 90081036000

BEARING, BALL

$6.99

$

In Stock, only 1 left!

0

22

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 2 left!

0

23

Echo 10021242031

SEAL, OIL 12

$6.49

$

In Stock, Qty 6

0

24

Echo P021051540

GASKET KIT

$16.99

$

In Stock, Qty 17

0
