T 261 - Shindaiwa String Trimmer Outer Tube, Throttle Lever Parts Diagram

String Trimmer

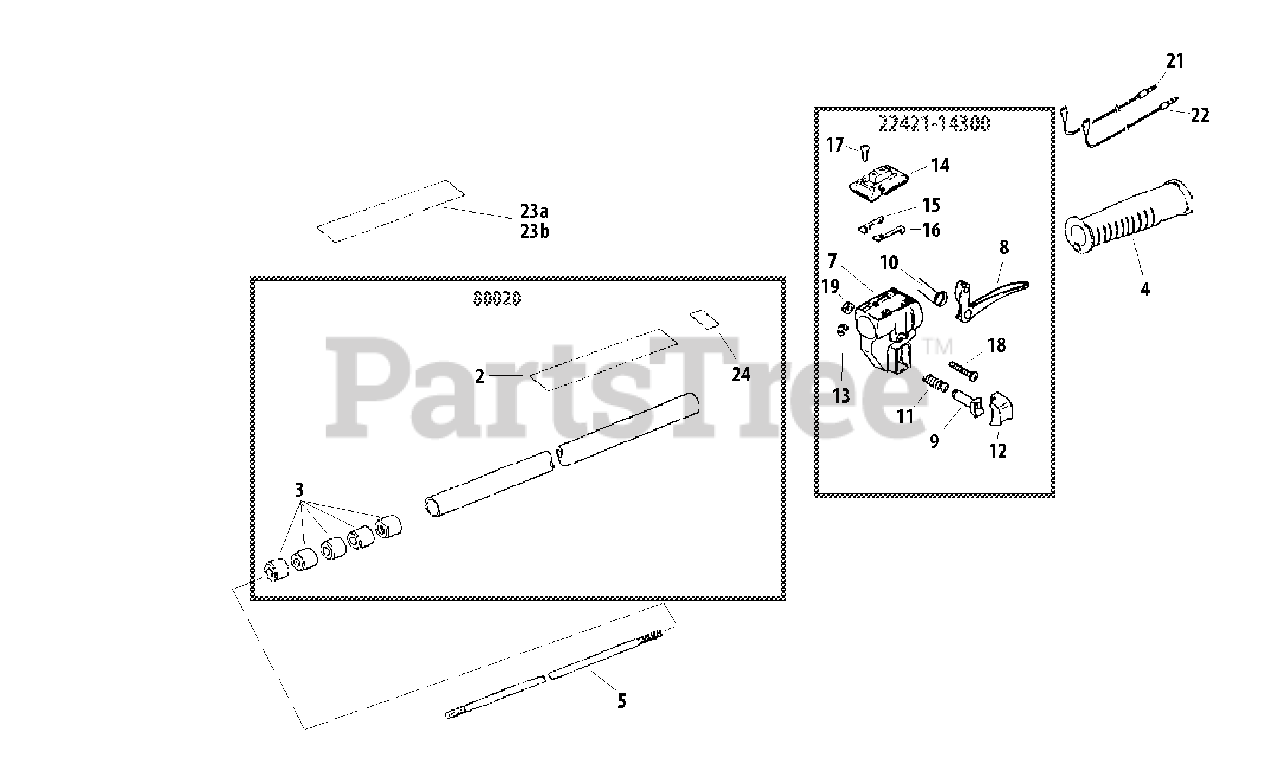

Outer Tube, Throttle Lever Parts Diagram

  • Title
80020

Echo 80020

MAIN PIPE ASSY
(Superseded to P021042320)

$125.99

$

Usually ships in 2-4 days

0

2

Echo 19422-00028

LABEL - CAUTION
(Superseded to X505005990)

$4.49

$

In Stock, only 2 left!

0

3

Echo 22420-12120

BUSHING
(Superseded to C501000110)

$4.99

$

In Stock, only 4 left!

0

4

Echo 22422-12610

GRIP - REAR
(Superseded to C412000390)

$12.99

$

In Stock, only 2 left!

0

5

Echo 22000-12413

PIPE, MAIN
(Superseded to C504000620)

$25.99

$

In Stock, only 2 left!

0

22421-14300

Echo 22421-14300

THROTTLE CONTROL KIT
(Superseded to C044000650)

$35.99

$

In Stock, only 1 left!

0

7

Echo 22421-14320

BODY, THROTTLE
(Superseded to C472000090)

$15.99

$

In Stock, only 1 left!

0

8

Echo 22421-14330

TRIGGER, THROTTLE
(Superseded to C450000500)

$16.99

$

In Stock, only 1 left!

0

9

Echo 72435-12740

SHAFT
(Superseded to C451000040)

$1.99

$

In Stock, only 2 left!

0

10

Echo 72435-12750

SPRING, TRIGGER
(Superseded to V452000480)

$1.99

$

In Stock, Qty 16

0

11

Echo 72435-12760

SPRING
(Superseded to V450000900)

$3.49

$

In Stock, only 1 left!

0

12

Echo 72435-12770

BUTTON, THROTTLE LEVER
(Superseded to C461000040)

$3.49

$

Usually ships in 2-4 days

0

13

Echo 72435-12780

RING, RETAINING
(Superseded to V583000150)

$0.99

$

In Stock, Qty 8

0

14

Echo 72447-14830

SWITCH, IGNITION
(Superseded to A045000300)

$13.99

$

Usually ships in 2-4 days

0

15

Echo 22421-14860

TERMINAL - GROUND
(Superseded to V486000170)

$1.49

$

In Stock, only 1 left!

0

16

Echo 22421-14870

TERMINAL - GROUND
(Superseded to V486000180)

$0.99

$

In Stock, only 1 left!

0

17

Echo 72447-14890

SCREW -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

18

Echo 11203-05250

SCREW - 5X20
(Superseded to 9157805025)

$0.99

$

In Stock, Qty 9

0

19

Echo 72447-14950

NUT - NYLON
(Superseded to V263000150)

$1.99

$

In Stock, Qty 5

0

21

Echo 72560-14520

WIRE - RIGHT
(Superseded to V485001560)

$1.99

$

In Stock, Qty 17

0

22

Echo 72560-14530

WIRE - LEFT
(Superseded to V485001570)

$1.99

$

In Stock, Qty 9

0

23A

Echo 19420-00028

LABEL - MODEL
(Superseded to Discontinued)

Note: FOR RED UNIT, T261

$

$

Not available

23B

Echo 19420-00030

LABEL - TRADE
(Superseded to X504002780)

Note: FOR RED UNIT, T261B

$3.49

$

In Stock, only 2 left!

0

24

Echo 19401-00269

LABEL - INSTRUCTION
(Superseded to X505002850)

$0.99

$

In Stock, only 3 left!

0
