T 261 - Shindaiwa String Trimmer Crankcase, Fan Cover Parts Diagram

String Trimmer

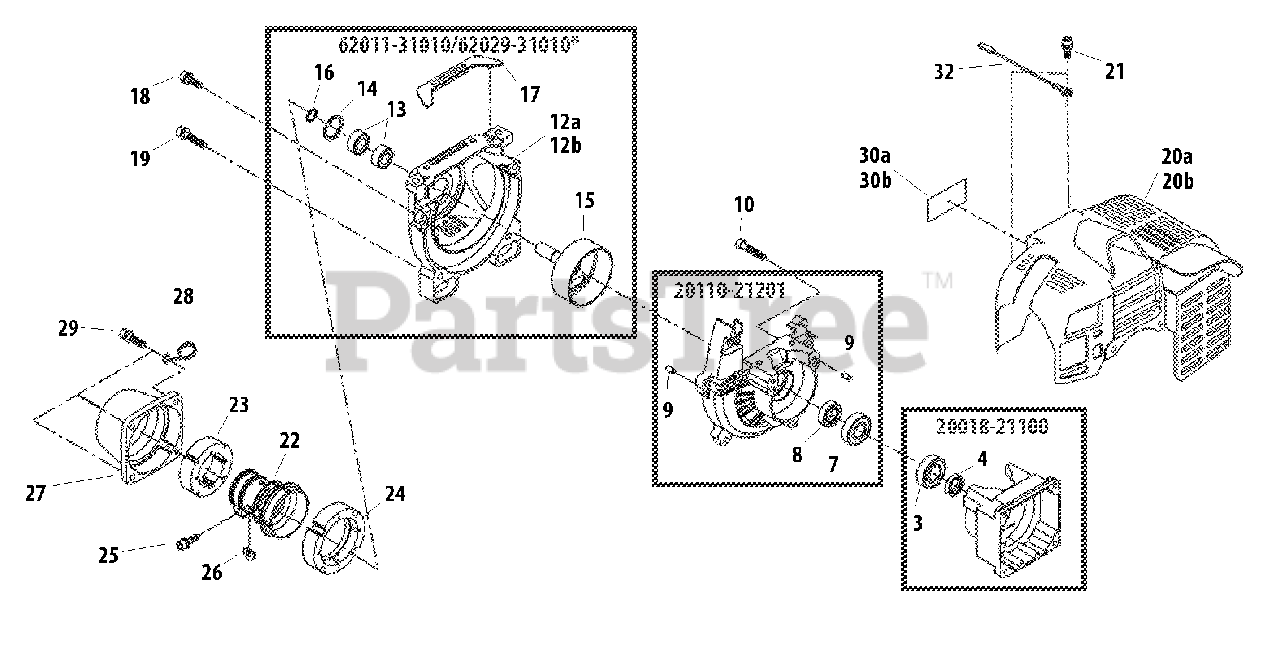

Crankcase, Fan Cover Parts Diagram

  • Title

20018-21100

Echo 20018-21100

CRANKCASE ASSY - REAR
(Superseded to P021017970)

$29.99

$

Usually ships in 2-4 days

0

3

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

4

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 2 left!

0

20110-21201

Echo 20110-21201

CRANKCASE ASSY - FRONT
(Superseded to P021018630)

$28.99

$

Usually ships in 2-4 days

0

7

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

8

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 13

0

9

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

10

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

62011-31010

Echo 62011-31010

FAN CASE ASSY - RED
(Superseded to 62011-31011)

Note: FOR RED UNIT, T261

$99.99

$

Usually ships in 2-4 days

0

62029-31010

Echo 62029-31010

FAN CASE ASSY - BLUE
(Superseded to P021027750)

Note: FOR RED UNIT, T261B

$101.99

$

Usually ships in 2-4 days

0

12A

Echo 20134-31111

CASE, FAN - RED
(Superseded to A172001190)

Note: FOR RED UNIT, T261

$45.99

$

Usually ships in 2-4 days

0

12B

Echo 70213-31111

CASE, FAN - BLUE

Note: FOR RED UNIT, T261B

$49.99

$

Usually ships in 2-4 days

0

13

Echo 02006-06000

BEARING, BALL - 6000DDU
(Superseded to 90080206000)

$13.99

$

In Stock, Qty 20+

0

14

Echo 02432-26120

RING, RETAINING - 26
(Superseded to 9242426000)

$0.99

$

In Stock, Qty 6

0

15

Echo 20018-31330

DRUM, CLUTCH
(Superseded to A556000770)

$48.99

$

In Stock, only 1 left!

0

16

Echo 22000-13320

RING, RETAINING
(Superseded to V583000160)

$1.49

$

In Stock, Qty 20+

0

17

Echo 20110-31130

CUSHION

$2.49

$

Usually ships in 2-4 days

0

18

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

19

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

20A

Echo 62028-32110

COVER, ENGINE - RED
(Superseded to A160001540)

Note: FOR RED UNIT, T261

$30.99

$

Usually ships in 2-4 days

0

20B

Echo 62029-32110

COVER, ENGINE - BLUE
(Superseded to A160001570)

Note: FOR RED UNIT, T261B

$30.99

$

Usually ships in 2-4 days

0

21

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

22

Echo 20018-31410

CLAMP, MAIN PIPE
(Superseded to 20018-31411)

$18.99

$

In Stock, only 2 left!

0

23

Echo 20018-31420

CUSHION - FRONT
(Superseded to V420002640)

$3.49

$

Usually ships in 2-4 days

0

24

Echo 20018-31430

CUSHION - REAR
(Superseded to V420002650)

$4.49

$

In Stock, only 2 left!

0

25

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 2 left!

0

26

Echo 20018-31460

SHIM
(Superseded to V340000240)

$

$

Not available

27

Echo 70135-31470

CAP
(Superseded to A575000460)

$7.99

$

In Stock, only 1 left!

0

28

Echo 20024-83152

GUIDE, CABLE
(Superseded to C487000220)

$1.99

$

In Stock, Qty 5

0

29

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 20+

0

30A

Echo 62028-91020

LABEL - MODEL
(Superseded to X504001990)

Note: FOR RED UNIT, T261

$2.49

$

Usually ships in 2-4 days

0

30B

Echo 62029-91020

LABEL - MODEL

Note: FOR RED UNIT, T261B

$2.49

$

Usually ships in 2-4 days

0

32

Echo 70201-83130

LEAD - GROUND
(Superseded to V485001550)

$5.49

$

In Stock, only 1 left!

0
