T 260 B - Shindaiwa String Trimmer Carburetor, (non EPA/CARB) Parts Diagram

String Trimmer

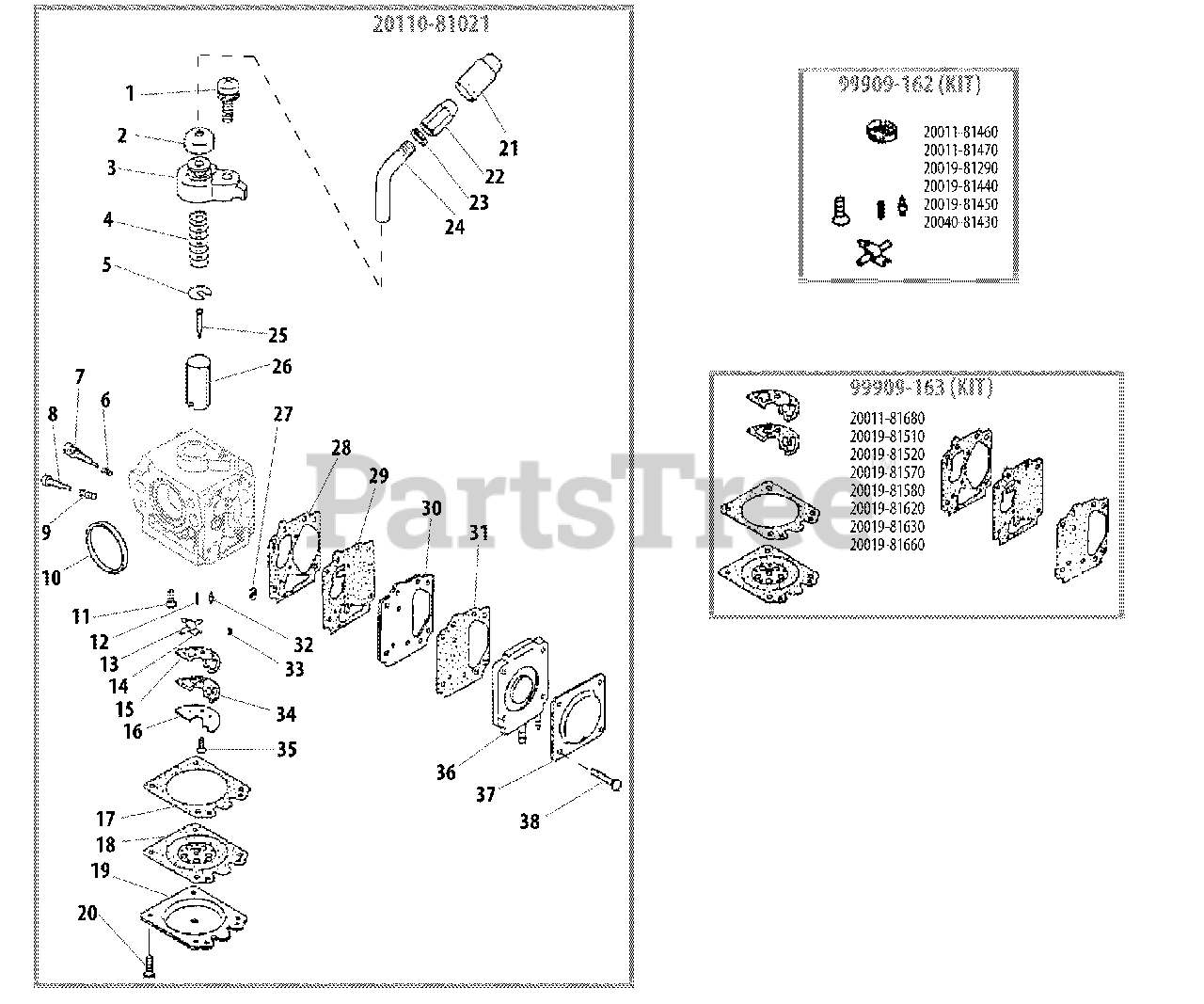

Carburetor, (non EPA/CARB) Parts Diagram

  • Title
A

Echo 20110-81021

CARBURETOR
(Superseded to 62076-81010)

$76.99

$

In Stock, only 1 left!

0

1

Echo 20019-81120

SCREW - 5X15
(Superseded to P004001590)

$0.99

$

In Stock, only 3 left!

0

2

Echo 20055-81130

GROMMET
(Superseded to P004002180)

$3.99

$

In Stock, only 1 left!

0

3

Echo 20019-81111

CAP, CARBURETOR
(Superseded to P004001580)

$16.99

$

Usually ships in 2-4 days

0

4

Echo 20000-81140

SPRING, THROTTLE
(Superseded to 12411405530)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 20000-81150

RETAINER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

6

Echo 20011-81360

SCREW, IDLE ADJUST
(Superseded to 12435521330)

$1.99

$

In Stock, Qty 10

0

7

Echo 20070-81350

SCREW, IDLE ADJUST
(Superseded to 12435412710)

$15.99

$

Usually ships in 2-4 days

0

8

Echo 20019-81310

SCREW, IDLE ADJUST
(Superseded to 62028-81370)

$9.99

$

Usually ships in 2-4 days

0

9

Echo 72920-81820

SPRING
(Superseded to 12416011120)

$2.49

$

In Stock, only 1 left!

0

10

Echo 20019-81280

SEAL
(Superseded to 12414913410)

$4.99

$

In Stock, only 1 left!

0

11

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

12

Echo 20040-81430

SPRING
(Superseded to 12433149930)

$1.99

$

In Stock, only 1 left!

0

13

Echo 20011-81460

PIN, METERING LEVER
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

14

Echo 20019-81450

LEVER, METERING
(Superseded to 12432121330)

$4.49

$

Usually ships in 2-4 days

0

15

Echo 20019-81580

GASKET
(Superseded to 12437512710)

$6.99

$

Usually ships in 2-4 days

0

16

Echo 20019-81560

PLATE
(Superseded to 68501-81370)

$5.49

$

Usually ships in 2-4 days

0

17

Echo 20019-81510

GASKET, METERING
(Superseded to P004001670)

$1.99

$

In Stock, Qty 5

0

18

Echo 20019-81520

DIAPHRAGM, METERING
(Superseded to P004001680)

$19.99

$

Usually ships in 2-4 days

0

19

Echo 20019-81530

COVER, DIAPHRAGM
(Superseded to P004001690)

$6.99

$

In Stock, only 1 left!

0

20

Echo 20000-81540

SCREW
(Superseded to P004001000)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 20005-83160

CAP, DUST
(Superseded to A246000020)

$0.99

$

In Stock, Qty 18

0

22

Echo 20055-81810

NUT, CABLE ADJUST
(Superseded to 12415846630)

$13.99

$

Usually ships in 2-4 days

0

23

Echo 20000-81260

LOCKNUT
(Superseded to 12411105810)

$3.49

$

In Stock, only 2 left!

0

24

Echo 20055-81830

GUIDE, CABLE
(Superseded to 12416849930)

$12.99

$

In Stock, only 1 left!

0

25

Echo 20019-81172

NEEDLE, JET

$14.99

$

In Stock, only 1 left!

0

26

Echo 20019-81182

VALVE, THROTTLE
(Superseded to P004001620)

$59.99

$

In Stock, only 2 left!

0

27

Echo 20019-81290

STRAINER
(Superseded to P004001640)

$3.49

$

Usually ships in 2-4 days

0

28

Echo 20019-81630

GASKET, PUMP
(Superseded to 12436112710)

$2.99

$

In Stock, only 2 left!

0

29

Echo 20019-81620

DIAPHRAGM, PUMP
(Superseded to 12436412710)

$15.99

$

Usually ships in 2-4 days

0

30

Echo 20019-81610

PLATE, PUMP
(Superseded to 12436212710)

$18.99

$

In Stock, only 1 left!

0

31

Echo 20019-81660

GASKET, PUMP
(Superseded to 12436312710)

$6.99

$

Usually ships in 2-4 days

0

32

Echo 20019-81440

VALVE, INLET NEEDLE
(Superseded to P004001660)

$11.99

$

In Stock, only 1 left!

0

33

Echo 20011-81680

SPRING
(Superseded to 12436721330)

$1.49

$

In Stock, Qty 6

0

34

Echo 20019-81570

VALVE, CHECK
(Superseded to 12437453630)

$11.99

$

In Stock, only 1 left!

0

35

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

36

Echo 20019-81641

COVER, PUMP
(Superseded to P004001710)

$15.99

$

In Stock, only 1 left!

0

37

Echo 20019-81670

COVER, DIAPHRAGM
(Superseded to P004001720)

$7.99

$

Usually ships in 2-4 days

0

38

Echo 20019-81680

SCREW - 3X14
(Superseded to P004001730)

$0.99

$

Usually ships in 2-4 days

0

A

Echo 99909-162

REPAIR KIT
(Superseded to 72572-98030)

$19.99

$

In Stock, only 2 left!

0

A

Echo 99909-163

DIAPHRAGM/GASKET KIT
(Superseded to 72572-98020)

$40.99

$

In Stock, only 2 left!

0
